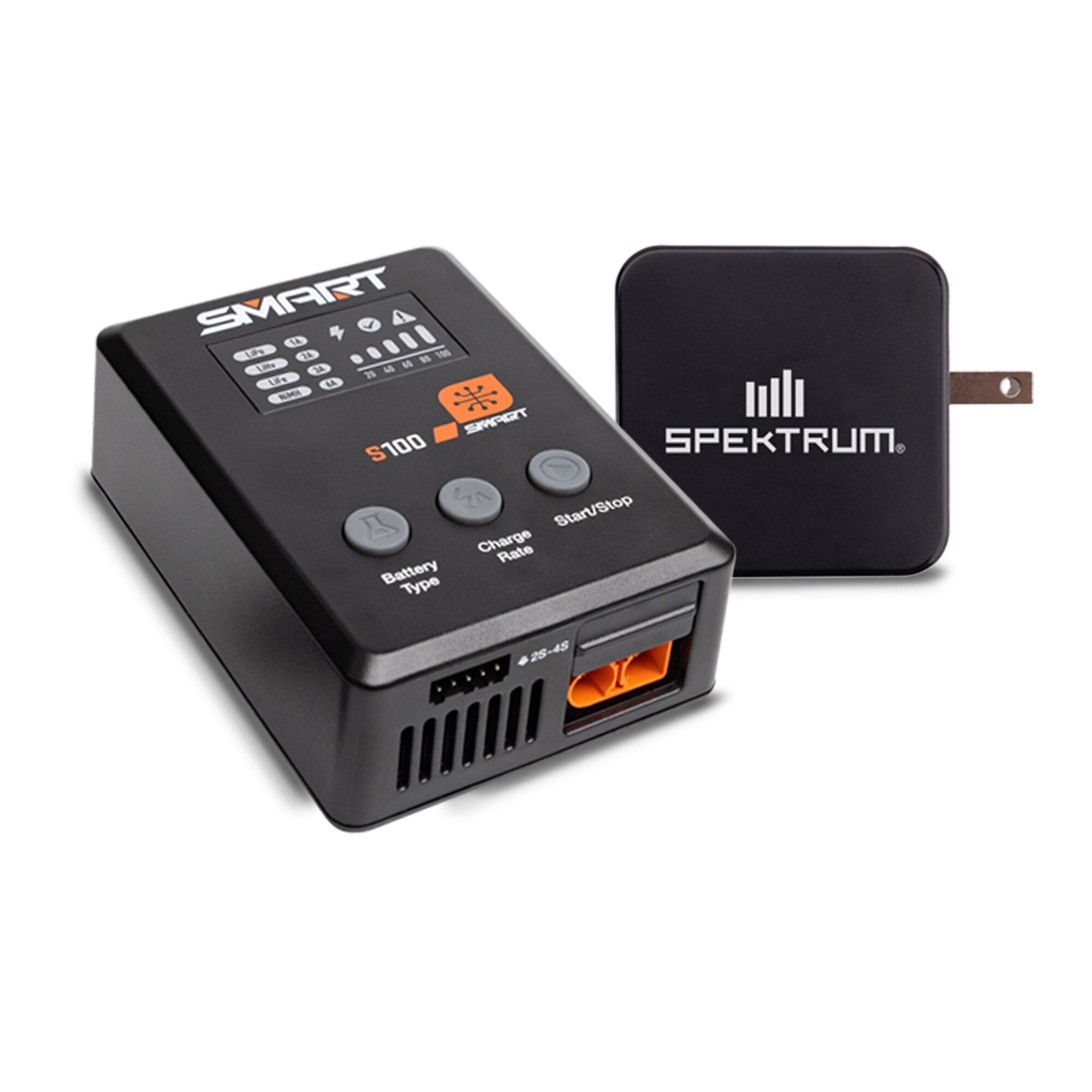

S100 100W USB-C Smart Charger w/ Power Block

The Spektrum™ S100 Smart USB-C Charger makes battery charging the easiest it has ever been. Its Auto Charge feature recognizes your Smart battery's parameters, such as chemistry type and charge rate, and begins safe, correct charging automatically when the battery is connected. With its up to 100W power, new user interface, and ability to fast charge Smart batteries on either the IC3® or IC5® integrated output port, the S100 charger offers a versatile and truly hassle-free charging experience. You can charge virtually any RC battery* with the S100 charger. The S100 is a convenient charging solution for those new to RC.

The Spektrum™ 65W Power Block stands out from traditional USB-C converters with its ability to deliver higher power in such a small size. This compact device, powered by Gallium Nitride electronic components, is perfect for converting AC input power to USB-type DC output. Its foldable AC input terminals make it easy to store.

*The Spektrum™ S100 Smart USB-C Charger is unable to charge non-Smart NiMH batteries.

Gallium Nitride technology: Gallium Nitride (GaN) components waste less power and produce less heat, resulting in higher efficiency operation

Compact size: A small but powerful design delivers power without the bulk of other power blocks

Fast power: 65-watt USB power delivery

Portability: The design includes a foldable plug for travel-friendly portability

Safety features: Integrated over-voltage, overheating, and short-circuit protection to keep connected devices safe

Advanced, user-friendly Smart charging technology that fits into any hobby budget

Meter display shows available wattage on startup, making it easy to know how much power your USB power supply can deliver

Delivers up to 100W of charging power with appropriately rated power supply and USB-C cable

Charges AND balances Smart G2 batteries with one simple IC3® or IC5® connection – no separate balance lead needed

Auto Charge recognizes Smart battery charging parameters and begins safe, accurate charging automatically when connected

Smart software tracks and stores numerous smart battery data

Charges virtually any RC LiPo battery* (use Smart batteries to benefit from all charger features)

Includes IC3® and IC5® charging output ports – eliminating the need for a separate IC3® or IC5® adapter to charge Spektrum Smart batteries

Charges up to 4S LiPo/LiFe/LiHV batteries

Includes an efficient, low-noise cooling fan

Sleek, sturdy case fits well on a workbench and in pit or field bags

IC3® and IC5® connectors are backward compatible with EC3™ and EC5™ connectors

Application: RC Model Battery Charger

Battery Balance Connector: JST-XH

Battery Temperature Monitoring: Yes

Battery Type: LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), Smart NiMH (1.2V per cell)

Connector Type: IC3, IC5

Display: LED

Input Voltage: DC 5.0 - 20.0V, USB-C

Integrated Balancing: Yes - Internal Balancer & External Adapter

Low Input Voltage Protection: Yes

Maximum Charge Rate: 1A / 2A / 3A / 6A User Selectable

Over Current Protection: Yes

PC Connectivity: Yes

Product Height: 1.42" (36 mm)

Product Length: 3.86" (98 mm)

Product Width: 2.83" (72 mm)

Programmable: Yes

Selectable Charge Rate: Yes

Short Circuit Protection: Yes

Software Updates: Yes

Technology : Smart

Thermal Protection: Yes

Brand: Spektrum

MPN: SPMXC2090P
