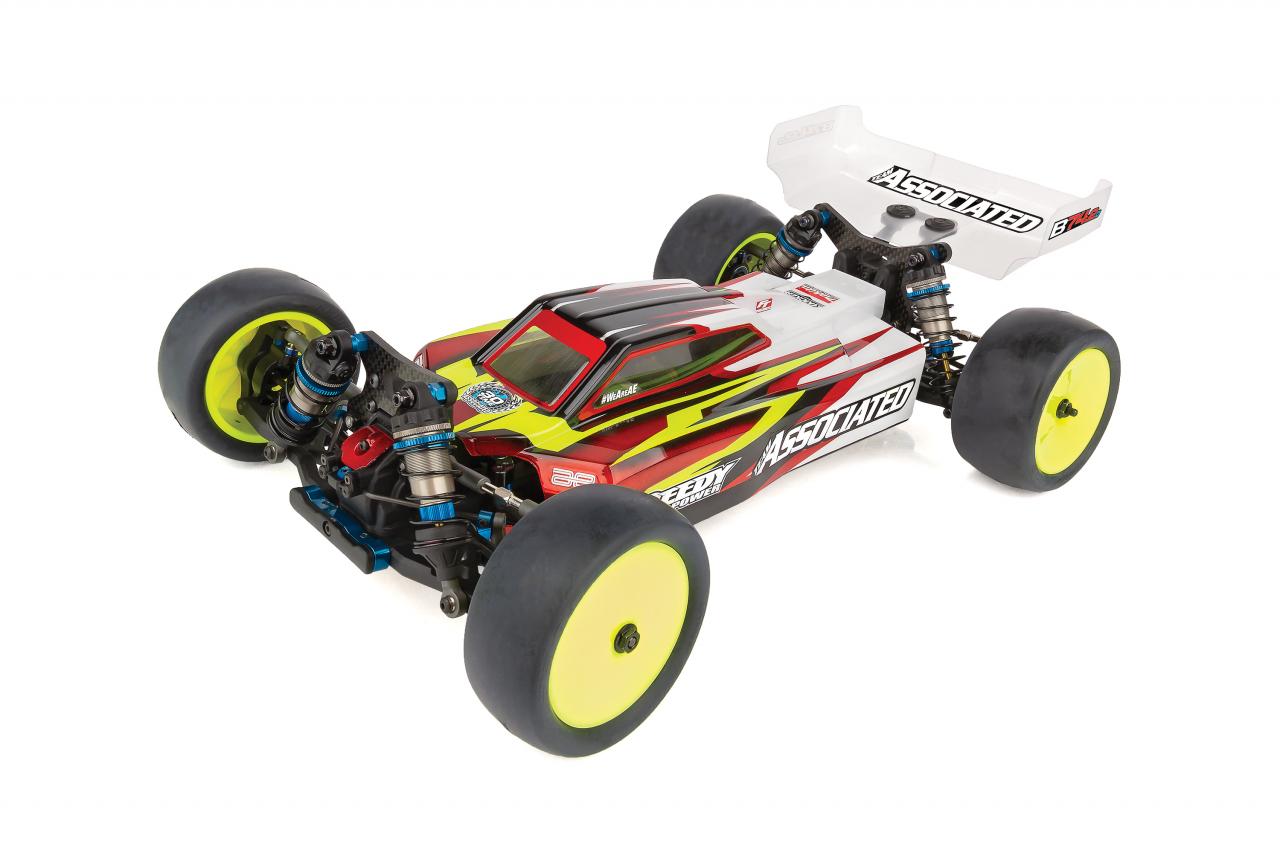

RC10 B74.2D CE 1/10 4WD Buggy Kit, Dirt Edition

The B74 platform is the current IFMAR World Champion, European Champion, Australian Champion, British Champion, and more! Successfully competing at the highest level world-wide has given the insight needed to push the B74 platform a bit more. With the addition of Factory Team items and setups, the B74.2 and B74.2D Champions Edition kits are ready to add to the list of accolades! The Champions Edition retains key features from its predecessor. The RC10B74.2D molded gearboxes front and rear lower the center of gravity by removing weight from high points of the car. The modified differentials improve rolling speed through turns and increase stability on landings, allowing the buggy to corner faster on high-grip carpet and clay tracks. The latest 13mm big bore shock technology from Team Associated keeps the RC10B74.2D at the highest level in jump and bump handling performance. The gull wing front suspension arms and the LTC gear sets for the differentials make the RC10B74.2 platform easier and more predictable to drive on any track condition.

Factory Team molded ring and pinion gear sets included

Factory Team molded LTC differential gear sets included

Factory Team +1 steering block arms included

Updated kit setup

Lightweight molded gearboxes front and rear: Two fixed height front gearboxes allowing 0 and +2mm diff height options. One rear gearbox with RC10B6-style inserts allowing 0, +1, +2, and +3mm diff height options.

13mm big-bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling

Gull wing front suspension arms and mating shock tower for lower center of gravity and better steering predictability

LTC differential gear sets are included. They reduce binding under power, giving more predictable power delivery.

Battery hold-down system uses inserts to adjust weight bias. O-ring style battery strap with pull tabs.

Larger 3.5mm turnbuckles with updated rod end style ballcups to increase durability and reduce bind in the suspension

Center bulkhead fan mount that mounts the fan above the motor for better cooling performance

-2mm wing mounts for use with slicks and low-profile carpet tires to further lower the center of gravity

Center differential with 72T and 78T spur gear and 200,000 CST silicone diff fluid

+3mm aluminum steering rack for optimized bump steer at low ride heights

66mm Rear CVA drive shafts and axles for more on-power traction and more predictable driving feel

Scale 1:10

Length 395mm (15.55")

Width Varies*

Wheelbase 280.5-285.5mm (11.0-11.24”)

Weight 885g (1.95lbs)

Internal Gear Ratio 2.50:1

Power Source Electric

Input Voltage (7.4V-7.6V) 2S LiPo

Assembly Level Unassembled Kit

(1) RC10B74.2D Champion Edition 1/10 4WD Buggy Kit

(1) Manual

Electronic speed control

1:10 scale electric motor

Steering servo

2-channel Transmitter/Receiver system

(7.4V-7.6V) 2S “Shorty” LiPo battery

Compatible battery charger

1:10 scale off-road buggy wheels and tires

Lexan-spray paint for body

Assembly Tools such as Body Scissors, Reamer, Hobby Knife, Needle Nose Pliers, Shock Shaft Pliers Wire Cutters, Soldering Iron and Calipers

Brand: Team Associated

MPN: 90045

Added: 2024 - October

Status: Non-Stock (Oct 23 - TRA Exclusive)

Discount Eligibility: Discount Ineligible

SKU: ASC90045

UPC: 784695900455
