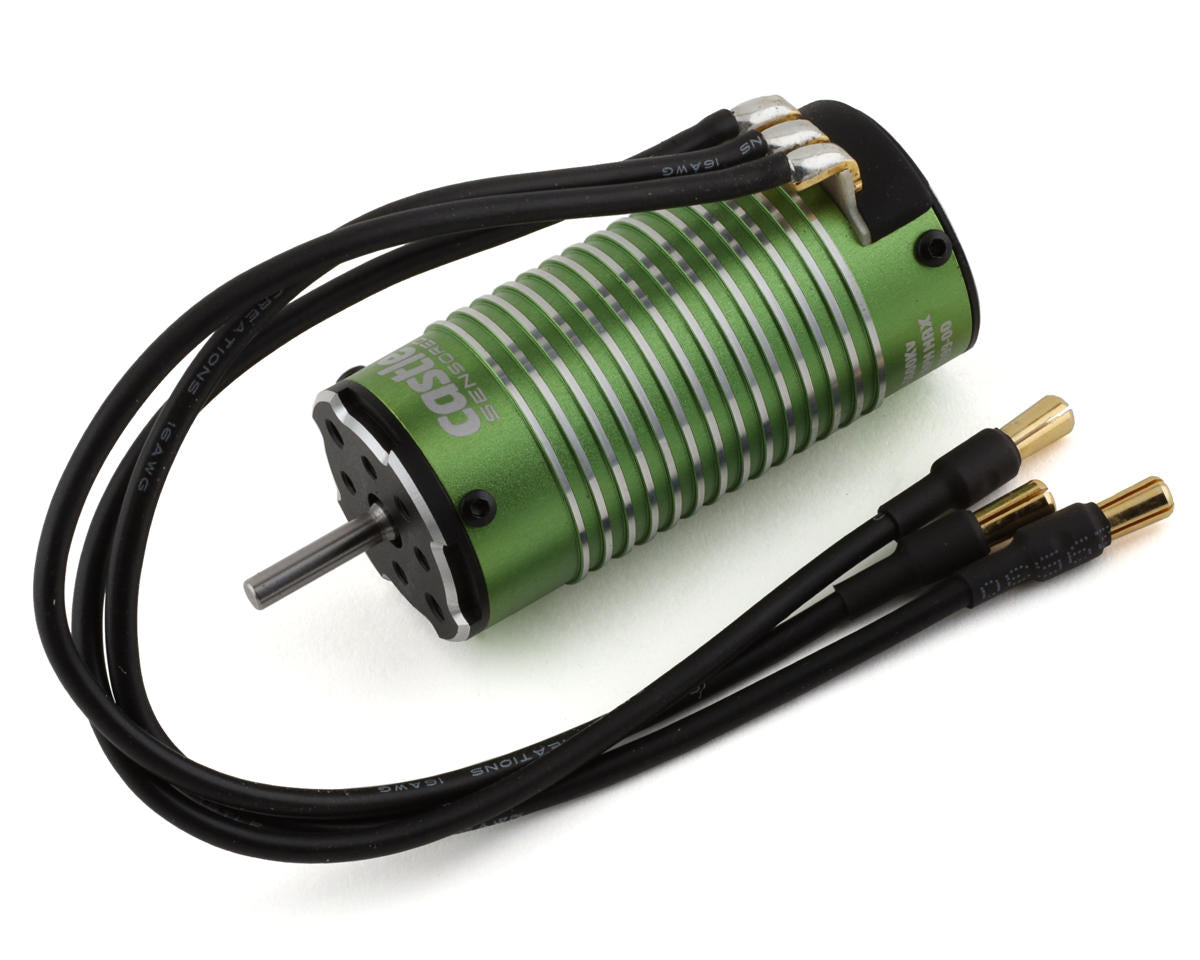

1007 4-Pole 1/14 8450kV Sensored Brushless Motor

This is the Castle Creations 10 7 4-Pole 1/14 Sensored Brushless Motor. Constructed with the high quality components Castle Creations products are known for, this powerful motor features precision sensored technology. With an incorporated sensor board this motor offers precise throttle control and buttery smooth starts, plus the incredible power and longer run times that these highly efficient motors produce. When paired with a sensored ESC such as the Mamba Micro X2 this is a great option for rock crawler applications that require high-precision low speed control and torque for climbing. Additionally racers that need precision and predictability along with drag racers can benefit from this technology as well.

Improved 4-Pole 12-Slot design boasts exceptional efficiency and produces less heat.

QUIETSENSE technology shields the sensors from magnetic field noise generated from the motor coils and keeps your motor and ESC in sync at all times. Use of a Flux Shield in conjunction with secondary Sense Magnets delivers even higher precision and more efficient startups.

An Optimized design eliminates the need for mechanical timing adjustments. The sensor alignment method used delivers uniform timing and torque in both directions, automatically.

Updated modern and sleek design; looks as cool as it performs.

Input Voltage Range: 2S LiPo

Kv: 8450

Max. RPM: 80,000

Length: 58.4mm

Diameter: 28mm

Weight (w/wires): 5.17oz (146.5g)

Shaft Length: 15mm

Shaft Diameter: 1/8" (3.175mm)

Mounting Hole Specifications: 2.5mm @ 14mm & 16mm; 3mm @ 19mm

Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire

Items Needed for Operation: Compatible Electronic Speed Control (ESC)

Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 3lbs.

Recommended ESC(s): Mamba Micro X2

Running Modes: SmartSense (with Castle Sensor capable ESC), Sensored and an ultra-efficient Sensorless mode.

(1) 1007 4-Pole 1/14 Sensored Brushless Motor (8450KV)

(1) Sensor Cable (210mm)

Brand: Castle Creations

MPN: 060-0105-00

Added: 2023 - August

Status: Non-Stock Jun25

Discount Eligibility: Discount Eligible

SKU: CSE060-0105-00

UPC: 819326012679

Location: K05-08-11
