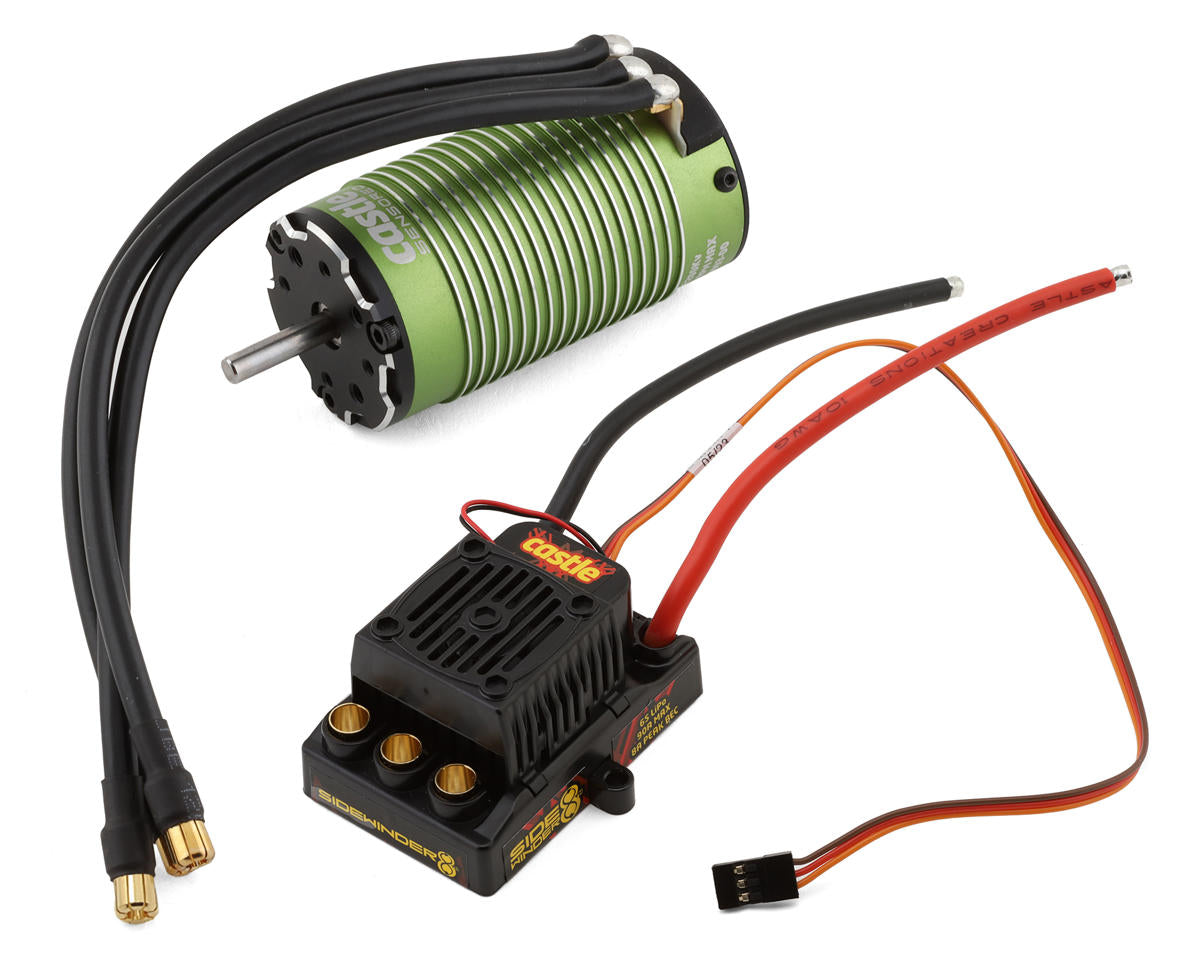

Sidewinder 1/8 Brushless ESC/Motor Combo

Sidewinder 8th is Castle Creations' sport 1/8 scale waterproof combo that is capable of 2S-6S LiPo with an 8amp peak BEC. This is the perfect upgrade for 1/8 scale buggies, truggies and on-road vehicles, as well as 1/10 scale monster trucks weighing up to 11lbs. It can also work as a great upgrade for some 4WD short course trucks running on 3S or 4S with available space! Making this affordable ESC a superior versatile option for different platforms and needs! You will have all the power your 1/8th scale vehicle demands with smoother throttle control!

Sidewinder 1/8th Features:

2S-6S LiPo with vehicles up 11.lbs with battery, ready-to-run

Smooth Sensorless and sensored motor operation

Waterproof design ESC and splash resistant 30mm fan

Powerful 5.5 volts fixed, 8amps Peak BEC

Convenient transmitter programming for nine common adjustable settings

LED error codes for common error conditions

Full compatible with the Castle Link Programming Suite to modify settings and download software updates available via Windows®-based Castle Link software and USB adapter (sold separately), or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (sold separately)

Proudly designed, assembled and supported in Olathe, KS USA

Backed by Castle Creations' 1-year Warranty

1515-2200 V2 MOTOR Features:

Redesigned stator and rotor assemblies to improve magnetic flux

Reduced magnetic cogging, producing less residual drag brake

Increased efficiency, resulting in lower temperatures and longer run times

Smoother start-up, reducing cogging or stuttering when starting from a stop

Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly

High-Strength Kevlar wrap and 180C grade neodymium sintered magnets

Oversized NMB bearings and high-temperature, high-purity copper windings

High performance 0.2mm steel lamination stacked stator

Oversized, low-resistance, gold-plated solder tabs

Sensor board with high quality temperature stabilized sensors

T6 aluminum CNC-Machined front/rear end bell

Proudly designed and supported in Kansas, USA

ESC:

Input voltage range: 2S-6S LiPo

Length: 2.45" (62.2mm)

Width: 2.20" (56mm)

Height: 1.33" (34mm)

Weight: 3.52oz (100g)

On/Off Switch: Yes

Cooling Fan: Yes, factory equipped

Connector: 6.5mm female bullets for motor connection

Wire Gauge: 8AWG

Motor:

Application: Ideal for 1/8 scale buggies, truggies, on-road vehicles and 1/10 scale monster trucks up to 15lbs

Input Voltage Range: 2-6S LiPo

Kv Rating: 2200Kv

Max. RPM: 60.000

Diameter: 40mm (41.4mm with fins)

Length: 3.99" (101.2mm)

Shaft Size: 20mm(Length), 5mm(Diameter)

Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires

Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm

Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.

(1) Sidewinder 1/8 Brushless ESC

(1) 1515-2200Kv V2 Brushless Sensored Motor

(1) Castle Sensor Harness Adapter

(1) 210 mm sensor wire (for sensored operation)

(1) Coupon for free Castle Link USB

Brand: Castle Creations

MPN: 010-0139-02

Added: 2023 - August

Status: Non-Stock Dec24

Discount Eligibility: Discount Eligible

SKU: CSE010-0139-02

UPC: 819326013027
