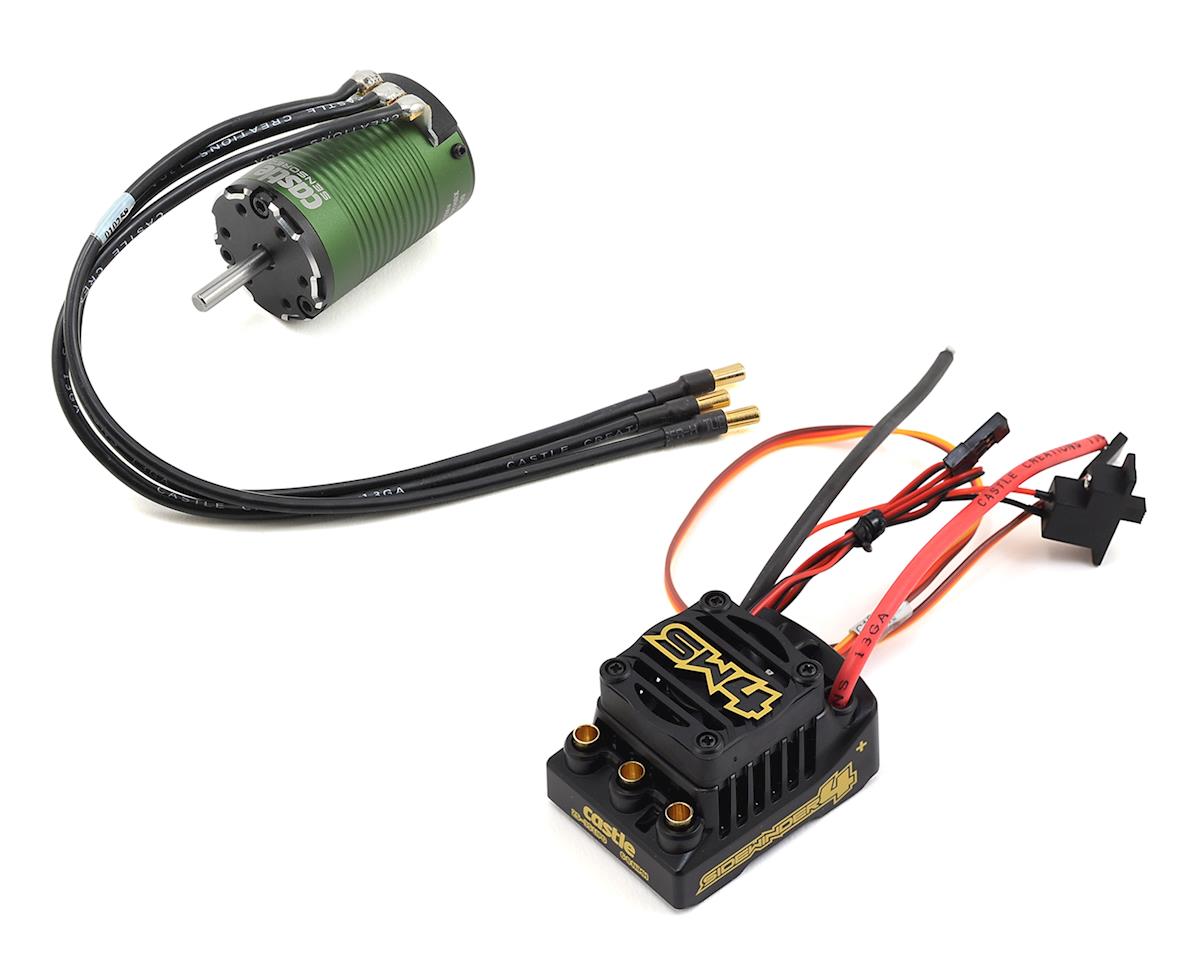

Sidewinder SW4 Waterproof 1/10 ESC/Motor Combo

Castle Creations 010-0164-06

$ 15995 $ 19595

Current Inventory: 1

Hurry up and order by 2pm CST!

All orders placed by 2pm CST ship same day

11:13:45
Hrs
Mins
Secs

Earn 480 DH Reward Points on this purchase!

Product Description +

The Castle Sidewinder SV4 12.6V Waterproof 1/10 ESC builds upon Castle’s most popular platform, the Sidewinder 1/10 series. The ESC is the first of its kind to run Castle’s CRYO-DRIVE technology that combines technology from cutting-edge hardware and software advancements to increase thermal performance. Cooler temps mean longer runs and more power! The SIDEWINDER 4 is a versatile ESC and is a great choice for short course and monster truck applications, as well as rock crawlers when used in brushed mode. This combo includes a Castle 1406-5700Kv sensored motor. The 1406-5700kv motor is a great motor for 2WD short course trucks on 2s LiPo and geared conservatively. It makes a great combo for 1/10th 2WD Stadium trucks and buggies on 2s for general bashing and limited runs on 3s; temperatures will climb quickly on 3s. It makes a great upgrade for 1/10th scale on-road cars for 2s and 3s use. NOT recommended for use in 4WD short course trucks. Please refer to the Gearing Chart in the resources tab for recommended motor, battery and gearing for some of the more popular vehicles on the market.

Product Features +

  • 2s - 3s LiPo; 6 - 8 cell NiMH use in vehicles up 6.5lbs with battery, ready-to-run
  • Sensorless brushless and/or brushed motor operation
  • Waterproof design ESC and splash resistant 30mm fan*
  • 5.0 volts fixed, 2 amps Peak BEC
  • Audible alerts for error conditions
  • Enhanced drag brake functionality
  • Smoother sensorless startups
  • Convenient transmitter programming for six common adjustable settings
  • Additional settings and software updates available via Windows®-based Castle Link software and USB adapter (sold separately) or via Field Link Card (sold separately)
  • Telemetry Link compatible for Futaba® S.BUS2 (sold separately)

    • Product Specs +

  • Input Voltage Range: 2s - 3s LiPo; 6 - 8 cell NiMH
  • BEC Specifications: 5.0 volts fixed, 2 amps.
  • Operating Environment: Waterproof* design allows for use in nearly any environment
  • Brake: Proportional
  • Reversible: Yes, but may be disabled for racing.
  • On/Off Switch: Yes
  • Cooling Fan: 30mm fan included
  • ESC Size: 2.08x1.50x1.28" (52.92x38.05x32.56mm)
  • ESC Weight (w/wires): 2.26 oz. (64 g)
  • Connectors: 4mm female bullets for motor connection.
  • Items Needed for Operation: Brushless or Brushed motor, Battery Connector required; Castle 4mm polarized connectors, Dean's Ultra Plug, or Traxxas Power Connector recommended.
  • Application Guidelines: The Sidewinder 4 is a versatile ESC that can be used in a wide variety of applications. it can be paired with any 14xx series 4-pole brushless motors; it can also be used in a rock crawling application with a brushed motor down to a 19 turn.
  • Max. Recommended Vehicle Weight: No more than 6.5lbs with battery, ready-to-run.
  • Programmability: Fully programmable Castle feature set using Castle Link USB adapter (sold separately) and freely downloadable Castle Link Windows software.
  • Telemetry Link Capable: Yes

    • Additional Product Details +

    Brand: Castle Creations

    MPN: 010-0164-06

    Added: 2023 - August

    Status: Non-Stock Dec24

    Discount Eligibility: Discount Eligible

    SKU: CSE010-0164-06

    UPC: 819326011993

    Location: Store
