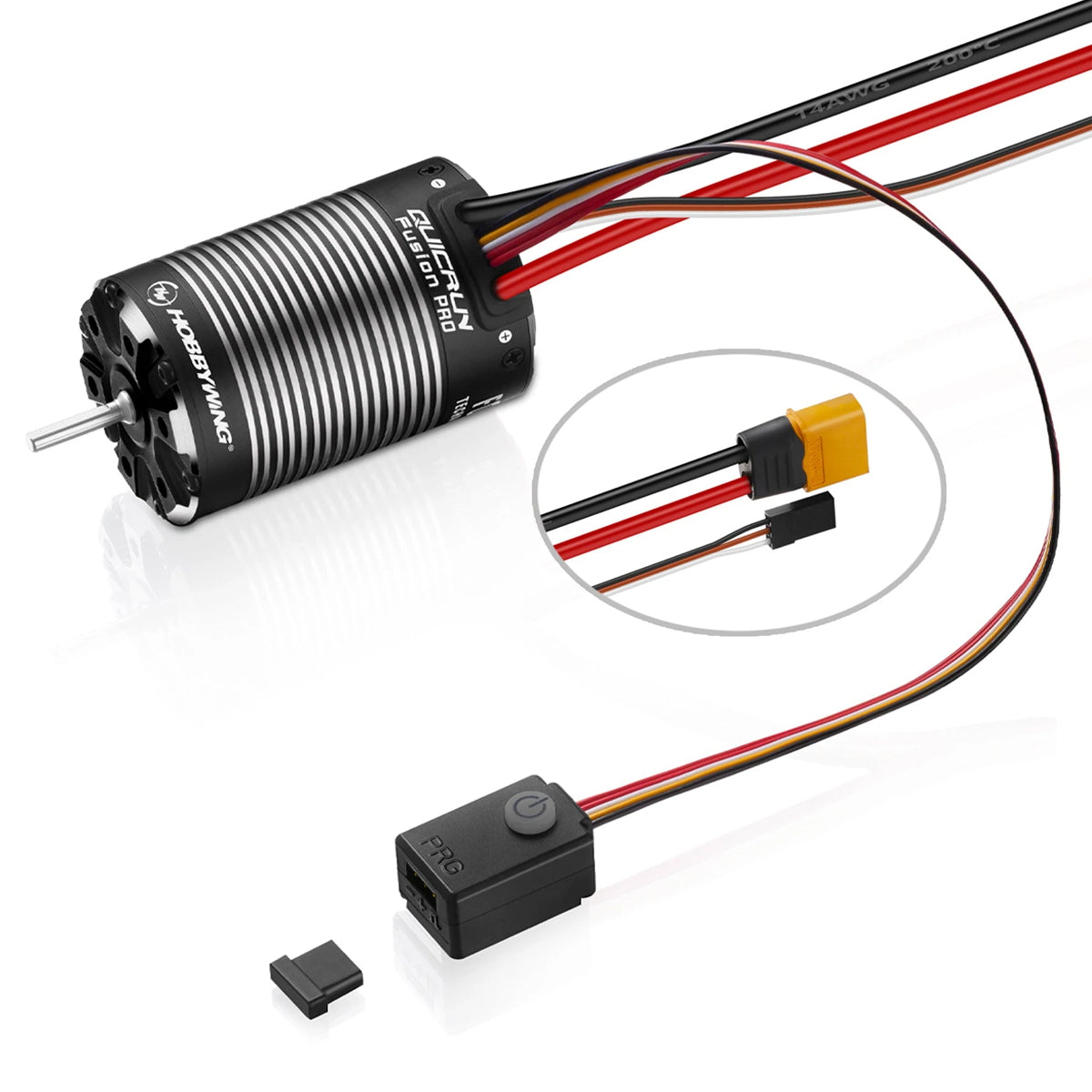

Quicrun Fusion Pro 2-in-1 Motor & ESC, 2300KV

The design has been integrated and optimized to provide a cleaner and sleeker layout appearance. The overall length is now at 58mm, 6mm shorter than the previous version. The smaller footprint provides for a spacious, easy assembly process.

Supports a variety of application needs such as the "constant speed mode (forward and reverse)", "normal mode (forward and reverse with brake)" and "normal mode without constant speed function (Forward and Reverse)

The IP-67 waterproof system guarantees excellent water and dust protection. The whole power system is able to drive on a variety of surfaces, including mud, sand, ice, and snow without damaging the power unit.

The ESC is equipped with 13 adjustable parameters for fine-tuning adjustments. New parameters such as "maximum braking force", "speed fluency", "start mode ( Punch)", "throttle midpoint area" and other practical parameters are included.

Integrated design of Hobbywing's patent technology: The integrated design of the ESC makes the size similar to a 540 motor, and the overall weight is only 209g. This makes the layout and wiring of the car simpler, while creating a cleaner overall chassis that also leaves more room for an interior.

Intelligent Torque Output & Speed Closed-loop Control for Easy Control: The Fusion system combined with Intelligent Torque output and closed-loop speed control means the power system will maintain the motor’s Torque level and RPM as the vehicle conditions change. Uphill, downhill, under load, the intelligent output torque makes the operation more consistent. Note: If the “RPM/Throttle Matching” is set to “Disabled”, no intelligent torque output & speed closed-loop control, just like the brushed system.

FOC (Field-oriented Control) for Super Linearity & HighTorque & Extreme Mute: The Fusion system adopts FOC driving mode so low speed torque is strong, and it runs smoothly at very low speed. Moreover, the motor is extremely silent when it is running. The driving noise which annoys the driver disappears. It is the best choice for a scale rock crawler.

Waterproof: Applicable to All Weather & Track Conditions: The IP-67 waterproof system has excellent waterproof and dustproof performance. You can easily drive in the mud, sand, ice, snow and water.

High Driving Efficiency for Long Battery Life: FOC offers high efficiency and reduced heat, dramatically extending runtime. Benefitting from a sine wave driving mode, the motor runs silently and softly.

Professional Drag Brake Adjustments & Super Parking Capacity: 8 levels of drag brake force and 9 settings of drag brake rate allow a high level of tuning for different conditions and driver preference. The maximum drag brake force is about twice that of an ordinary brushless system of the same size, providing super strong parking capacity on a steep slope.

Advanced and Secure Electronic Switch: Compared to standard on/off switches, the dust, dirt, and waterproof electronic switch housing ensures a long reliable life for your power system, and will not suffer from the problems that will damage a mechanical switch.

Current Rating: 60A Continuous / 200A Peak

Input Voltage: 2-3S Lipo, 6-9 Cells NiMH

Motor Poles: 4

Size: 37mm (diameter) / 58mm (length)

Weight: 209g (including wires & connectors)

BEC Output: 6V/7.4V, 6A

(1) FOC motor w/ built-in ESC & Factory installed XT60 plug

Brand: Hobbywing

MPN: 30120402

Added: 2025 - May

Status: Pending

Discount Eligibility: Discount Eligible

SKU: HWI30120402

UPC: N088718520102
