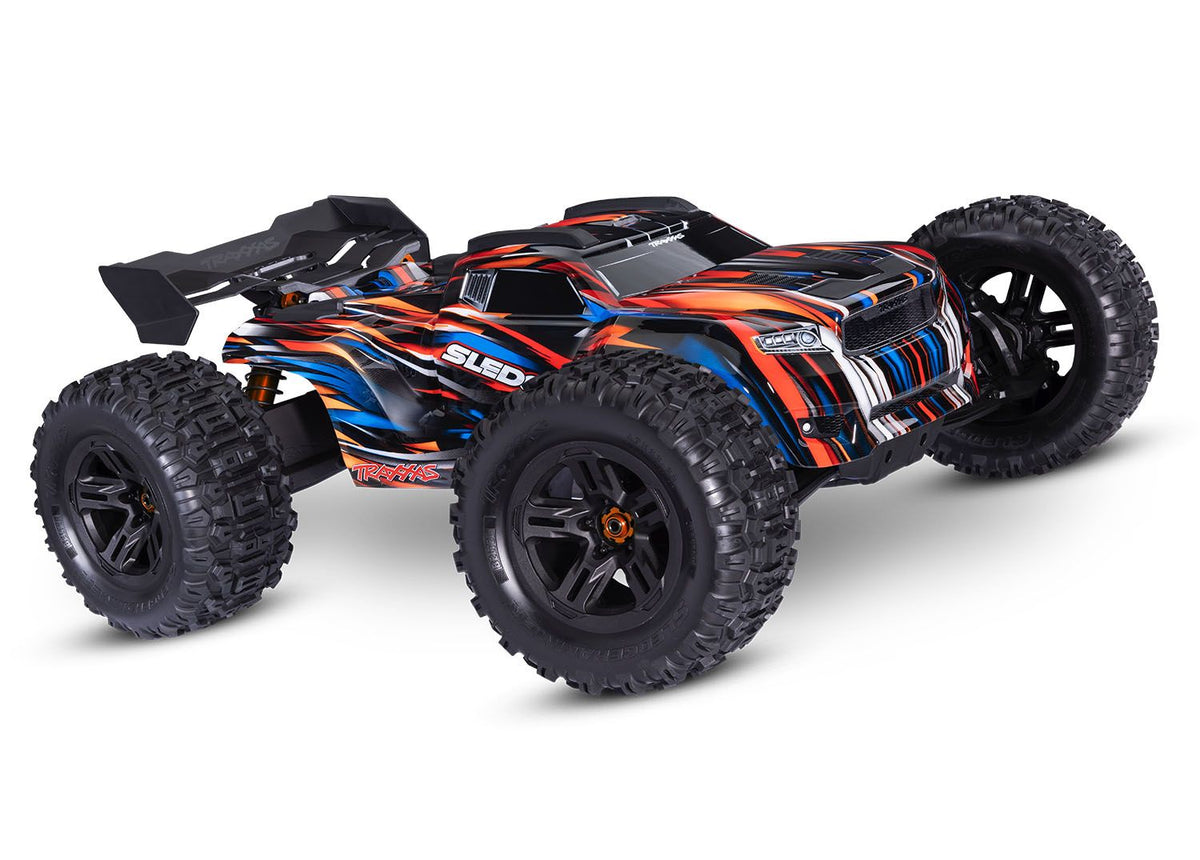

Sledge 1/8 4X4 Monster Truck RTR, Orange

Engineered. Tested. Built to a higher standard. Sledge® is made to exceed your expectations for quality, toughness, and fun. The rock-solid chassis, massive steel driveline, ferocious 6s power, and race-inspired handling leave everything else in the dust. New belted Sledgehammer® tires limit high-speed tire expansion for a larger, flatter contact patch and game-changing high-speed precision and control.

ENGINEERED FOR 6S POWER: Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

SUPERIOR CHASSIS STRENGTH: Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

NEW CLIPLESS BODY: Remove and replace the body in just seconds with exclusive patent-pending clipless body solutions engineered by Traxxas. Sledge’s clipless body goes on smoothly with a satisfying snap. The body is designed to come off when YOU release it.

MONSTER SERVO: Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

VXL-6S POWER SYSTEM: The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 kV motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

SLEDGEHAMMER BELTED TIRES: Belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

Name: Sledge® Belted

Type: Monster Truck

Speed: 70+ mph with 6s LiPo battery and optional gearing

Skill Level: 4

Scale: 1/8

Weight: 12.74 lbs (5.77 kg)

Length: 23.78 inches (604 mm including wing)

Width: 18.10 inches (459 mm)

Front Track: 18.10 inches (459 mm)

Rear Track: 18.10 inches (459 mm)

Height: 8.43 inches (214 mm)

Wheelbase: 15.10 inches (384 mm)

Center Ground Clearance: 1.95 inches (50 mm)

Driveline: Shaft-driven 4WD

Transmission: Single speed

Differential Type: Sealed, hardened steel bevel, limited slip

Gear Pitch: 1.0 metric pitch

Steering Servo: 2275 digital metal-gear waterproof (347 oz-in)

Radio System: TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

Battery Compartment Specs: 181 mm X 54 mm X 45 mm

Motor Name: 4-pole 2000 Kv

Motor Type: sensorless brushless

Motor Weight: 14.32 oz (406 g)

Motor Length: 2.97 inches (76 mm)

Motor Diameter: 1.65 inches (42 mm)

Motor Shaft Size: 5 mm

Motor Connector Type: Traxxas 6.5 mm bullet connectors

ESC Name: VXL-6s

ESC Type: Brushless

ESC Case Size: 2.28” (58 mm) x 2.83” (72 mm) x 1.81” (46 mm)

ESC Weight: 7.30 oz (207 g)

ESC Motor Connectors: 6.5 mm bullet connectors

ESC Battery Connectors: Traxxas High-Current Connectors

Sledge monster truck with Traxxas 2000 Kv brushless motor

Velineon® VXL-6s™ waterproof electronic speed control with integrated telemetry

TQi 2.4 GHz radio system

High quality maintenance tools

Jumper plug (for 4s battery use)

LiPo Batteries Traxxas recommends dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance. Dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

Charger The Traxxas EZ-Peak® Live Dual 4s-capable charger 2973 is recommended for easy and fast charging performance.

AA Alkaline Batteries Four AA alkaline batteries for the transmitter.

This product may only be shipped within the United States. International orders will be cancelled and refunded.

• Traxxas Sledge
• Traxxas Sledge (95096-4)

Brand: Traxxas

MPN: 95096-4-ORNG

Added: 2024 - April

Status: Stock

Discount Eligibility: Discount Ineligible

SKU: TRA95096-4-ORNG

UPC: 020334039781

Location: WH04-02-01
