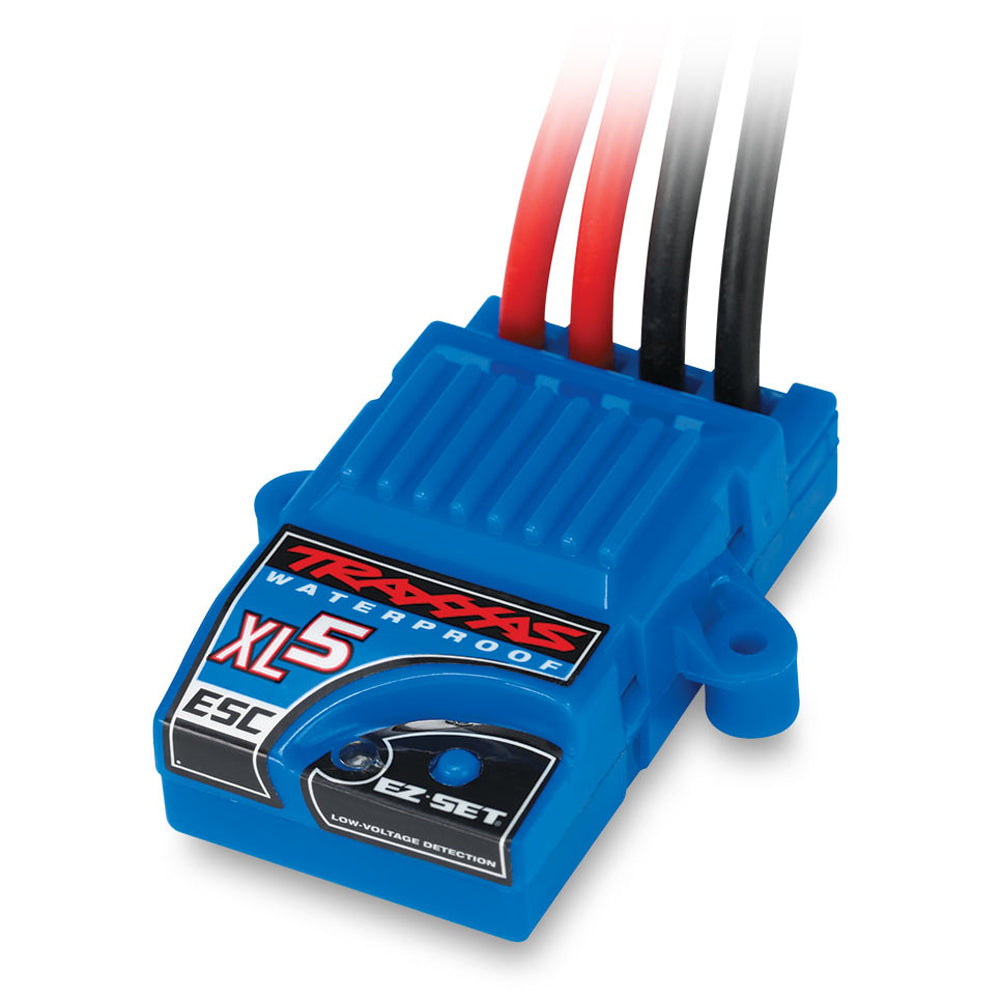

XL-5 Waterproof Fwd/Rev ESC

This is the Traxxas XL-5 Waterproof Forward/Reverse Electronic Speed Control.

Designed and engineered by Traxxas, the XL-5 Electronic Speed Control handles the elements while smoothly supplying power to the motor. This high-performance ESC is packed with impressive specifications that are normally only found on more expensive high-end replacement units. The XL-5 features a completely waterproof design, three throttle profiles, Thermal Shutdown Protection, 4-7 cell compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation. XL-5 is equipped with two-stage low-voltage detection (LVD) to allow LiPo battery use.

Built-in two-stage low voltage detection (LVD) for Lithium Polymer (LiPo) battery use

Innovative watersealed design

15-turn motor limit for 540 size motors

12-turn motor limit for 550 size motors Fully-proportional forward, reverse, and braking control

Programmable with three drive profiles:

• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode* – 50% Fwd / Brake / 50% Rev
• EZ-Set® push-button setup
• Multi-color LED
• Thermal shutdown protection
• Efficient, low-loss MOSFET design
• Smooth, high-frequency operation
• Easy installation in Traxxas models
• Backed by the Traxxas Lifetime Electronics warranty

Input voltage: 4-7 Cells (4.8 to 8.4 Volts DC)

Case Size: ­ 1.23"W x 2.18"D x 0.61" H

Weight: 2.44 Ounce

Motor Limit: 15-turns** (540 Size) & 12-turns** (550 Size)

On Resistance Forward: ­ 0.007 Ohms

On Resistance Reverse: 0.014 Ohms

BEC Voltage: 6.0 VDC

BEC Current: 1A

Power Wire: 14 Gauge / 5"

Input Harness Wire: 26 Gauge / 9"

PWM Frequency: ­1600 Hz

Low Voltage Detection (LVD): ­2-Stage indicators, switchable (on or off)

Thermal Protection: ­Thermal shutdown Profile selection:

• Sport Mode: 100% FWD, 100% brakes, 100% REV
• Race Mode: 100% FWD, 100% brakes, no REV
• Training Mode:* 50% FWD, 100% brakes, 50% REV

Single-button setup: Yes, Traxxas EZ-Set®

**Properly geared *Patented

(1) ESC

Manual

Connecting to motor and battery of vehicle

This product may only be shipped within the United States. International orders will be cancelled and refunded.

Brand: Traxxas

MPN: 3018R

Added: 2017

Status: Stock

Discount Eligibility: Discount Ineligible

SKU: TRA3018R

UPC: 020334301888

Location: S06-04-04
