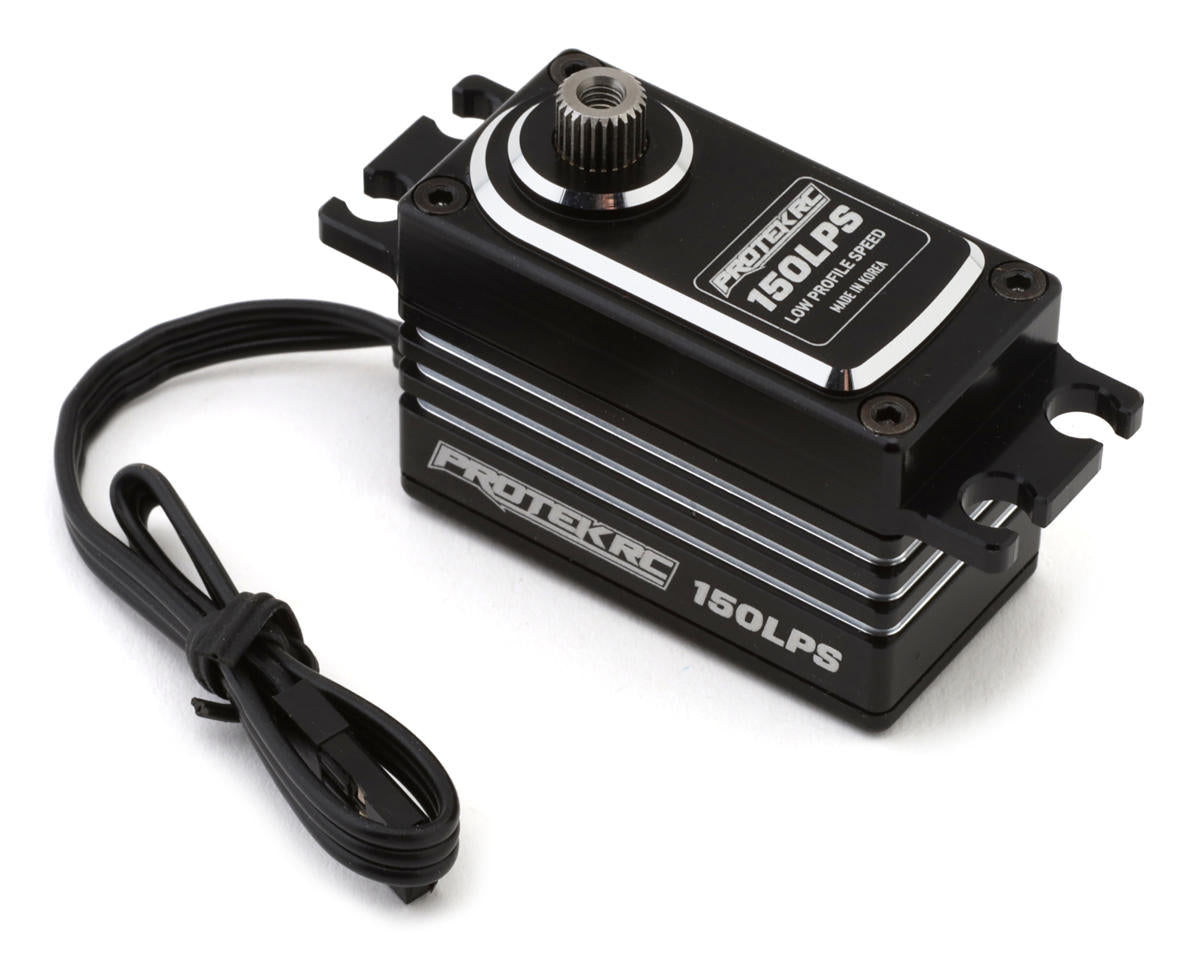

150LPS Low Profile Super Speed Metal Gear Servo, 0.04sec / 152oz-in

The ProTek R/C 150LPS Low Profile Super Speed Metal Gear Servo is built for racers who demand instant steering response and razor-sharp precision. Delivering up to 152 oz-in of torque and an incredible 0.04-second transit speed on 7.4V, it provides the speed and accuracy needed to attack tight corners with confidence in 1/10 and 1/12 scale on-road and off-road vehicles. Based on the proven and trusted ProTek R/C 160SS servo, the 150LPS is a refined evolution that delivers the same dependable performance in a compact low-profile design. The full aluminum case improves durability and heat dissipation, while the coreless motor, hardened metal gears, and dual ball bearings ensure smooth, consistent operation through demanding race conditions. Designed to perform right out of the box, the 150LPS includes a durable aluminum single-arm servo horn instead of a standard plastic horn, along with optional blue aluminum servo ear guides for increased mounting rigidity. Combined with high-quality wiring, gold-plated connectors, and high-voltage compatibility, it offers exceptional reliability, precision, and value for competitive racers.

Delivers up to 152 oz-in of torque on 7.4V

Ultra-fast 0.04-second transit speed with lightning-quick response

Low-profile design fits most 1/10 scale vehicles

Full aluminum case improves durability and heat dissipation

Coreless motor provides smooth, precise, and efficient performance

Hardened metal gears increase strength and long-term reliability

Dual ball bearings ensure smooth operation under heavy loads

Includes an aluminum clamping servo horn

Aluminum servo ear guides provide a more rigid and secure installation

Application :: 1:10 Scale

Operating Voltage :: 6.0V - 7.4V

Operating Temperature :: 14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V :: 0.05/60° sec

Operating Speed @ 7.4V :: 0.04/60° sec

Dynamic Torque @ 6.0V :: 127oz-in (9.1 kg-cm)

Dynamic Torque @ 7.4V :: 152oz-in (11 kg-cm)

Motor Type :: High Efficiency Coreless Motor

Output Shaft :: 25T

Gears :: Metal w/Lifetime Gear Warranty

Weight :: 1.92oz (54.5g)

Pulse/Frequency :: 1520s / 333hz

Dimensions :: 1.55x0.79x1.2in (39.5x20x30.3mm)

Length (Bottom to Mount) :: 0.75in (19.10mm)

*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.

(1) 150LPS Low Profile High Torque Brushless Servo

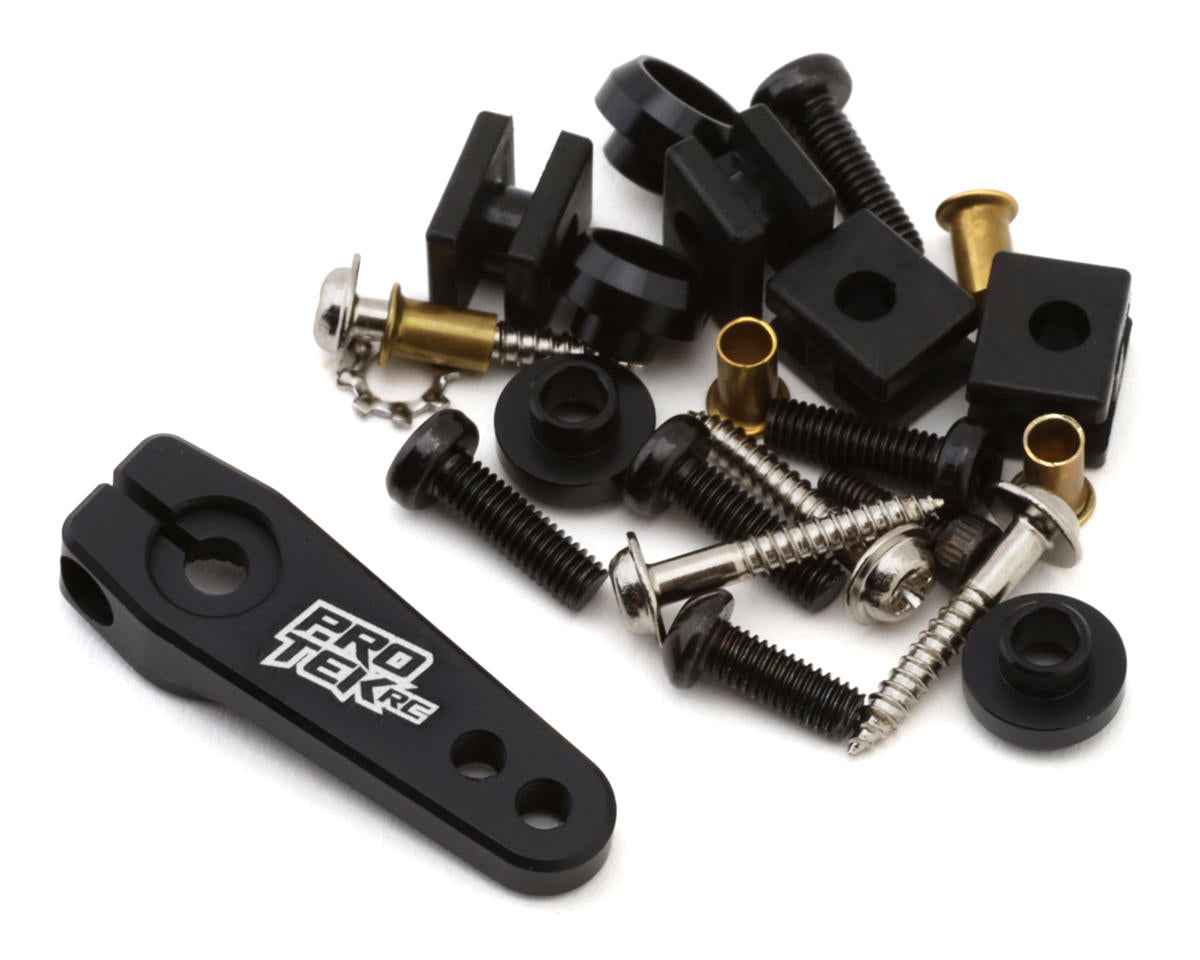

(1) Aluminum Clamping Servo Horn

Servo Hardware and Grommets

Brand: ProTek RC

MPN: PTK-150LPS

Added: 2026 - September

Status: Stock

Discount Eligibility: Discount Eligible

SKU: PTK-150LPS

UPC: 694485097671

Location: K05-03-03
