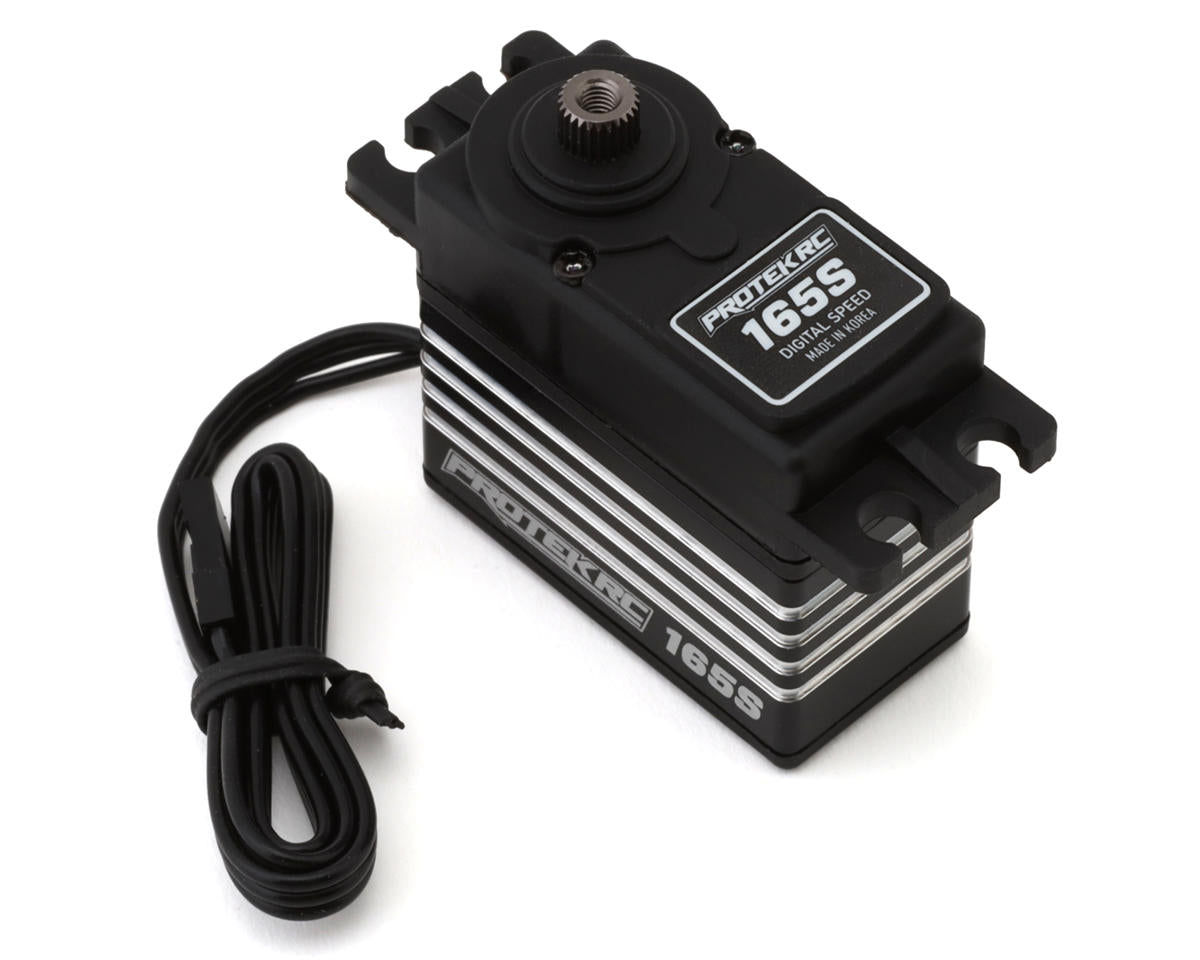

165S Standard Digital Super Speed Metal Gear Servo, 0.09sec / 168oz-in

The ProTek R/C 100SS Digital Super Speed Metal Gear Servo delivers quick steering performance with a 0.09-second transit speed and 168 oz-in of torque at 6.0V. Designed for 1/10 scale on-road and off-road vehicles, it provides fast, precise control for racers and enthusiasts. Building on the trusted ProTek R/C PTK-100SS Digital "High Torque" Servo, the 100SS is a refined upgrade focused on speed, durability, and value. Its full metal gear train, dual ball bearings, cored motor, and aluminum middle case deliver smooth operation and dependable performance.

Ultra-fast 0.09-second transit speed for quick steering response

A refined version of the trusted and proven 100SS servo

168 oz-in of torque at 6.0V for reliable power

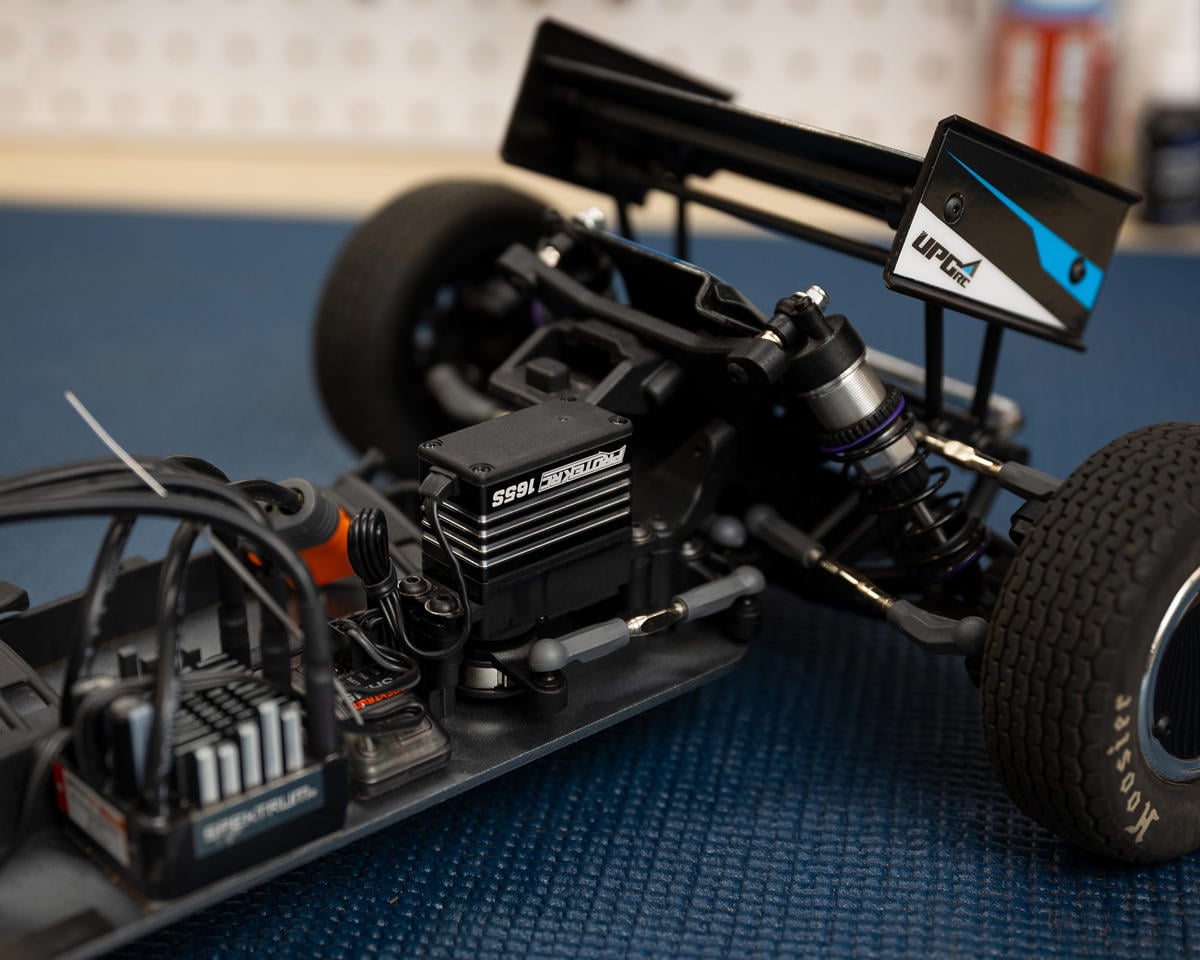

Designed for 1/10 scale on-road and off-road vehicles

Full metal gear train provides excellent durability

Dual ball bearings deliver smooth and precise operation

Aluminum middle case helps dissipate heat

Cored motor provides dependable performance and efficiency

Gold-plated connectors improve signal reliability

Application :: 1:10 On-Road & Off-Road

Operating Voltage :: 4.8V - 6.0V

Operating Temperature :: 14° to 140° F (-10 to +60° C)

Operating Speed @ 4.8V :: 0.11/60° sec

Operating Speed @ 6.0V :: 0.09/60° sec

Dynamic Torque @ 4.8V :: 134 oz-in (9.6 kg-cm)

Dynamic Torque @ 6.0V :: 168oz-in (12.1 kg-cm)

Motor Type :: Cored DC

Output Shaft :: 25T

Gears :: Metal w/Lifetime Gear Warranty

Weight :: 1.93oz (54.9g)

Pulse/Frequency :: 1520s / 333hz

Dimensions :: 1.55x1.51x0.78in (39.50x38.6x20mm)

Length (Bottom to Mount) :: 1.04in (26.6mm)

*Tech Note: This ProTek R/C servo requires that you use a m3x10mm screw to attach the servo horn to the output shaft. If you choose to use another screw, be sure to use a 10mm length screw. Use of a shorter screw can cause failure and will void your warranty.

(1) 165S Standard Metal Gear Servo

(1) Aluminum Clamping Servo Horn

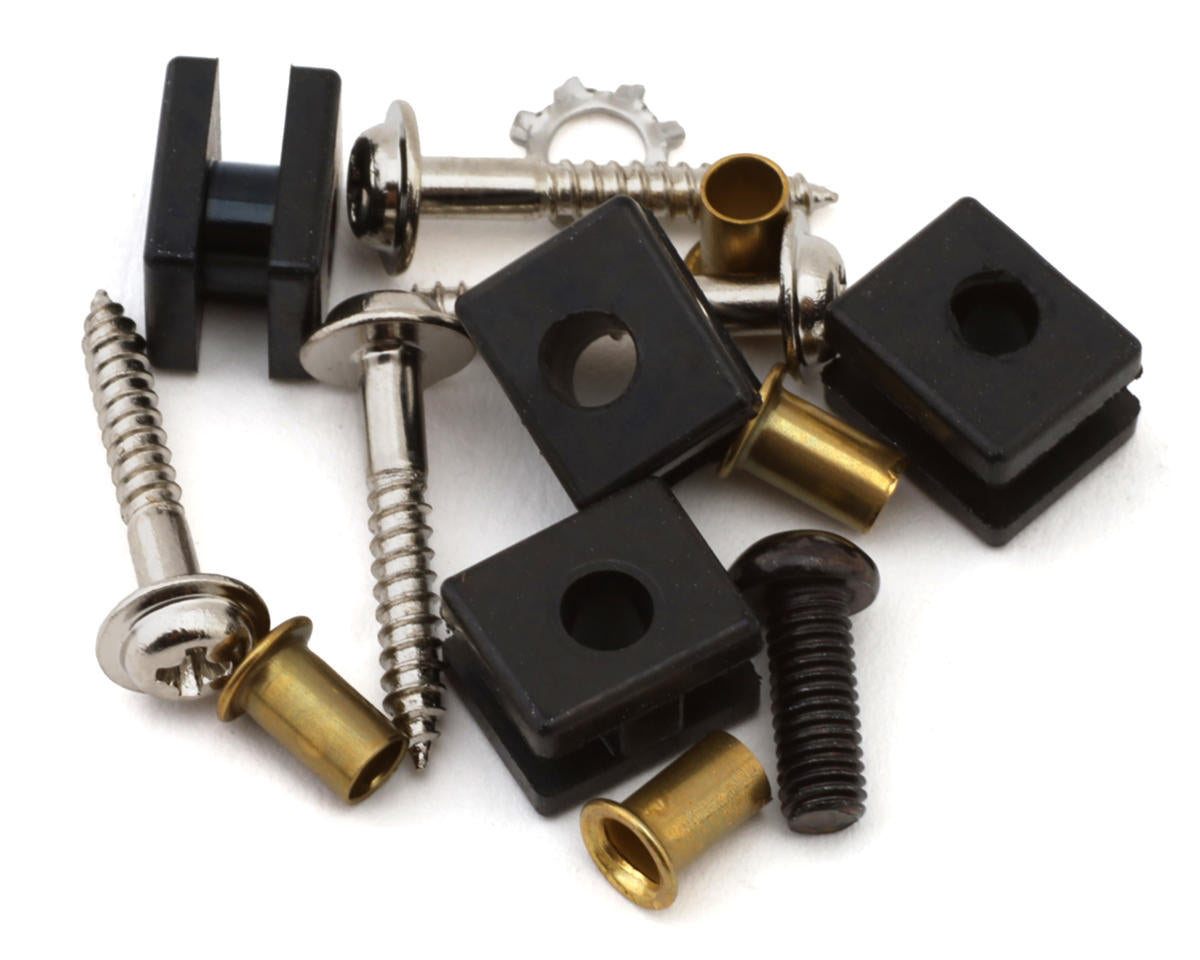

Servo Hardware and Grommets

Brand: ProTek RC

MPN: PTK-165S

Added: 2026 - September

Status: Stock

Discount Eligibility: Discount Eligible

SKU: PTK-165S

UPC: 694485097732

Location: L05-03-02
