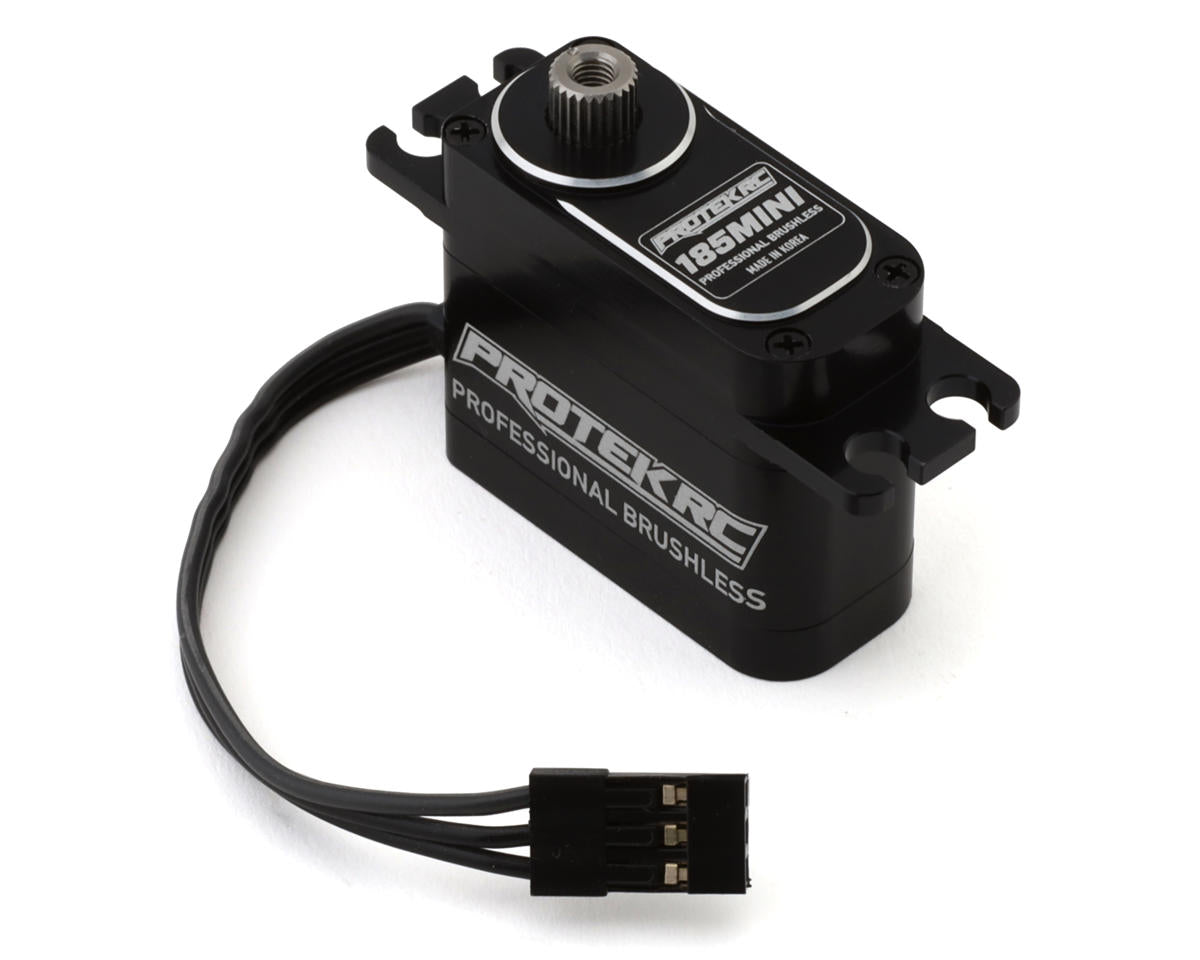

185Mini 1/12 High Torque Brushless Mini Servo, 0.06sec / 186oz-in

The ProTek R/C 185Mini delivers impressive mini servo performance with 186 oz-in of torque and a fast 0.06-second transit speed at 7.4V. Designed for 1/12 and 1/10 pan cars and Pro Class drag racing chassis, it provides powerful, precise control where space is limited. Built as a refined version of the proven and trusted ProTek R/C 500BL “Black Label” servo, the 185Mini combines advanced brushless technology with high-voltage capability for improved efficiency, longer lifespan, and consistent performance during demanding racing conditions. Featuring a full black anodized aluminum case, blue anodized bottom cover, and full metal gears, the 185Mini offers exceptional durability, precise gear alignment, and a sleek race-ready appearance. It is the ideal choice for racers needing maximum performance from a compact servo.

Compact mini servo design fits most 1/12 & 1/10 pan cars

Delivers 186 oz-in of torque at 7.4V

Provides 0.06-second transit speed at 7.4V

High-voltage circuitry supports powerful performance

Full aluminum case improves durability and heat dissipation

Full metal gears provide long-lasting strength

Dual ball bearings deliver smooth operation

Brushless motor technology for efficiency and longevity

Aluminum servo ear guides provide a more rigid and secure installation

Application :: 1:10 & 1:12 Pan Cars

Operating Voltage :: 6.0V - 7.4V

Operating Temperature :: 14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V :: 0.08/60° sec

Operating Speed @ 7.4V :: 0.06/60° sec

Dynamic Torque @ 6.0V :: 161oz-in (11.59 kg-cm)

Dynamic Torque @ 7.4V :: 186oz-in (13.39 kg-cm)

Motor Type :: High Efficiency Coreless Motor

Output Shaft :: 25T

Gears :: Metal w/Lifetime Gear Warranty

Weight :: 1.48oz (42g)

Pulse/Frequency :: 1520s / 333hz

Dimensions :: 1.3x0.21x0.61in (34x30.80x15.50mm)

Length (Bottom to Mount) :: 0.83in (21.30mm)

*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.

*Tech Note: Modification may be required for drag applications.

(1) 185Mini High Torque Brushless Mini Servo

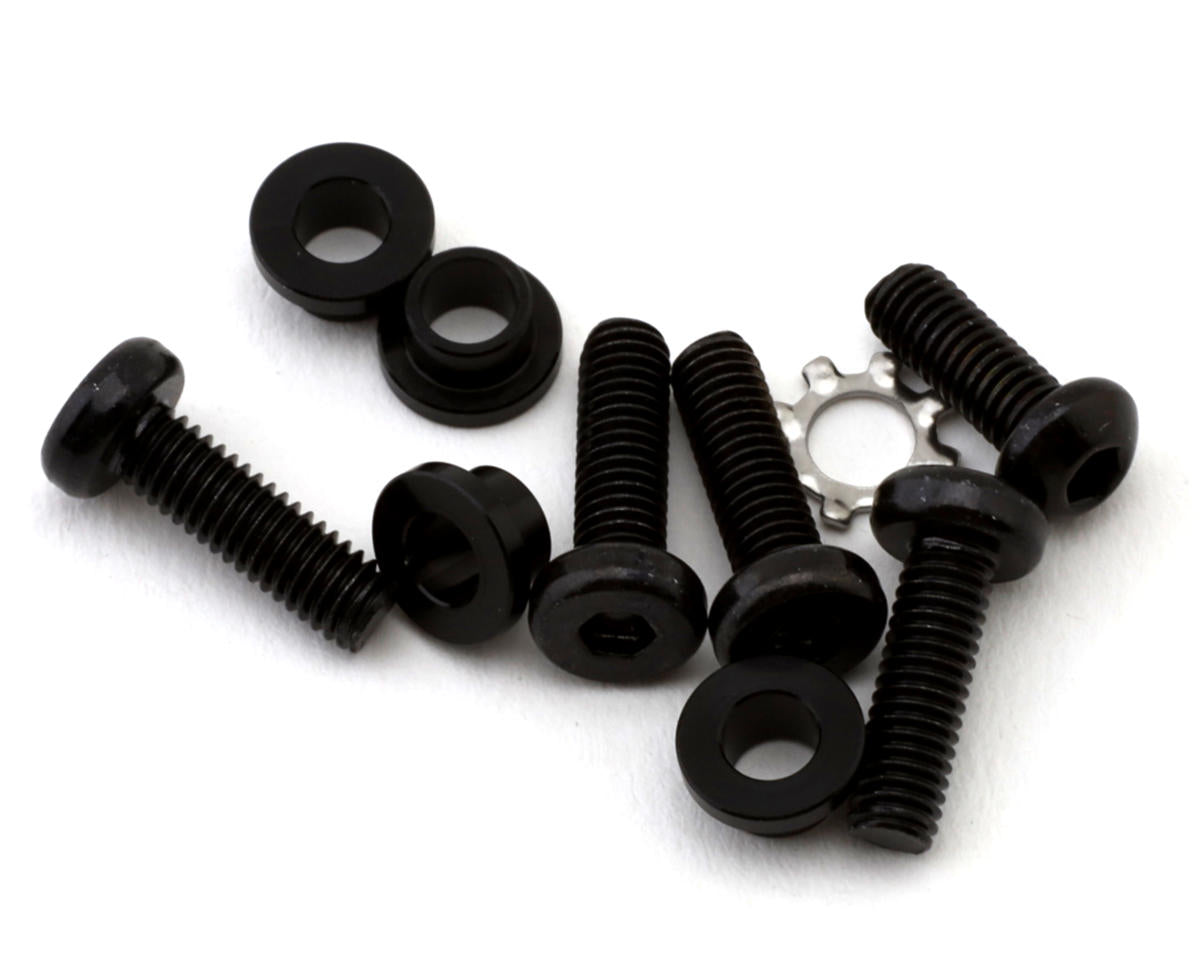

Servo Hardware and Grommets

Brand: ProTek RC

MPN: PTK-185MINI

Added: 2026 - September

Status: Stock

Discount Eligibility: Discount Eligible

SKU: PTK-185MINI

UPC: 694485097695

Location: L05-02-06
