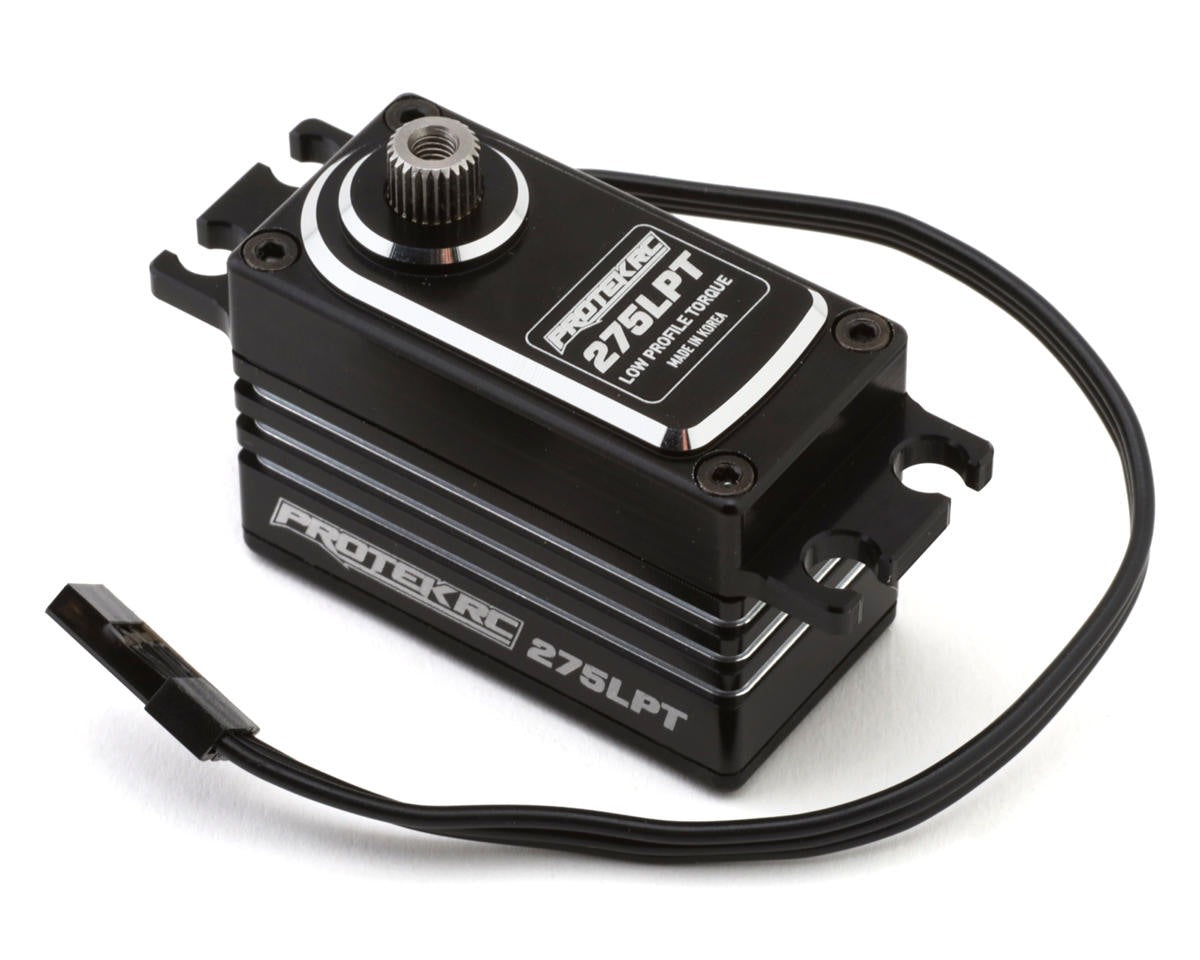

ProTek PTK-275LPT - 275LPT Low Profile HV Servo, 0.06s / 274oz-in @ 7.4V

Take control with the ProTek R/C 275LPT Low Profile High Torque Servo, combining race-proven reliability, powerful high-voltage torque, and durable all-metal construction to deliver precise steering in every lap! The ProTek R/C 275LPT Low Profile High Torque Metal Gear Servo is engineered for drivers who need exceptional steering authority without sacrificing precision. Producing up to 274 oz-in of torque and a 0.06-second transit speed on 7.4V, it delivers the strength and responsiveness needed for demanding 1/10 and 1/12 scale on-road and off-road racing. Built as a refined version of the proven and trusted ProTek R/C PTK-160T servo, the 275LPT combines dependable performance with a compact low-profile design. Its full aluminum case, coreless motor, hardened metal gears, and dual ball bearings provide outstanding durability, smooth operation, and consistent performance throughout every race. Designed for serious racers, the 275LPT includes a durable aluminum single-arm servo horn, blue aluminum servo ear guides for increased mounting rigidity, and high-quality gold-plated connectors. With high-voltage compatibility, premium construction, and exceptional torque, it is an excellent all-around servo for competitive club racing and high-performance RC applications. Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.

Low-profile design fits most 1/10 scale vehicles

Delivers up to 274 oz-in of torque at 7.4V

Provides fast 0.06-second transit speed at 7.4V

High-voltage circuitry supports powerful performance

Full aluminum case improves durability and heat dissipation

Full metal gears provide long-lasting strength

Dual ball bearings deliver smooth operation

Coreless motor provides efficient, responsive control

Includes an aluminum clamping servo horn

Aluminum servo ear guides provide a more rigid and secure installation

Application: 1:10 Scale

Operating Voltage: 6.0V - 7.4V

Operating Temperature: 14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V: 0.08/60° sec

Operating Speed @ 7.4V: 0.06/60° sec

Dynamic Torque @ 6.0V: 216oz-in (15.5 kg-cm)

Dynamic Torque @ 7.4V: 274oz-in (19.7 kg-cm)

Motor Type: High Efficiency Coreless Motor

Output Shaft: 25T

Gears: Metal

Weight: 1.92oz (54.5g)

Pulse/Frequency: 1520s / 333hz

Dimensions: 1.55x0.79x1.2in (39.5x20x30.3mm)

Length (Bottom to Mount): 0.75in (19.10mm)

(1) 275LPT Low Profile High Torque Brushless Servo

(1) Aluminum Clamping Servo Horn

Servo Hardware and Grommets

• 2wd Buggy
• 2wd Short Course Truck
• 4wd Buggy
• 4wd Short Course Truck
• Formula 1
• FWD Touring
• LMH
• Road Rash
• Spec Short Course Truck
• Stadium Truck
• Touring Car
• USGT
• VTA
• WGT-R

Brand: ProTek

MPN: PTK-275LPT

Added: 2026 - September

Status: Stock

Discount Eligibility: Discount Eligible

SKU: PTK-275LPT

UPC: 694485097688

Location: P05-06-07
