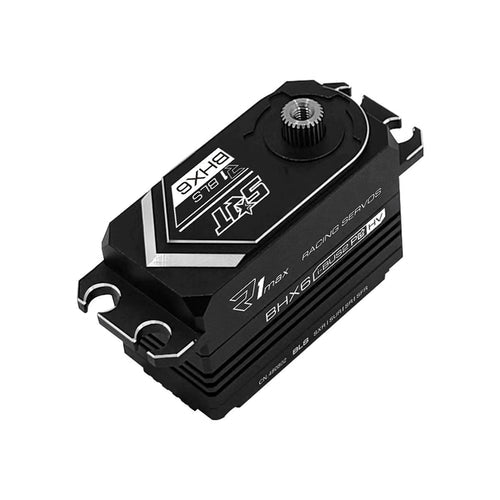

BHX6 Standard Short HV Brushless Digital Servo, 0.053sec / 486.1oz @ 8.4V

SRT Servos SRTBHX6


$ 12199

Current Inventory: 1

Product Description +

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a shorter standard sized servo for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Product Features +

  • Ideal for 1/10 on-road and 1/8 off-road scale applications
  • Superior holding torque
  • Incredible efficiency and low power consumption
  • Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
  • CNC machined aluminum case for exceptional cooling
  • Programmable high torque brushless servo
  • Supporting SXR, SUR, SR, SFR multiple ultra high-speed modes
  • 25T output shaft
  • 2 usec dead band
  • 1-Year Limited Warranty

  • Product Specs +

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Brushless
  • Gear Type: Metal
  • Gear Material: Steel
  • Control System: Pulse Width Control
  • Working Frequency: 1520us / 330Hz
  • Operating Voltage: DC 6.0-8.4V
  • Operating Temperature Range: -10 to +60 degrees
  • Operating Speed (6.0V): 0.08 sec/60 degrees at no load
  • Operating Speed (7.4V): 0.065 sec/60 degrees at no load
  • Operating Speed (8.4V): 0.053 sec/60 degrees at no load
  • Stall Torque (6.0V): 25.0kg.cm (347.2 oz/in)
  • Stall Torque (7.4V): 30.0kg.cm (416.6 oz/in)
  • Stall Torque (8.4V): 35.0kg.cm (486.1 oz/in)
  • Potentiometer Drive: Direct Drive
  • Dimensions: 41.0 x 20.0 x 30.0mm / 1.61 x 0.79 x 1.18in
  • Weight: 66.0g (2.33 oz)
  • Connector Wire Length: JR 300mm

  • Additional Product Details +

    Brand: SRT Servos

    MPN: SRTBHX6

    Added: 2026 - September

    Status: Stock

    Discount Eligibility: Discount Eligible

    SKU: SRTBHX6

    UPC: 6969006660004

    Location: N05-06-07
