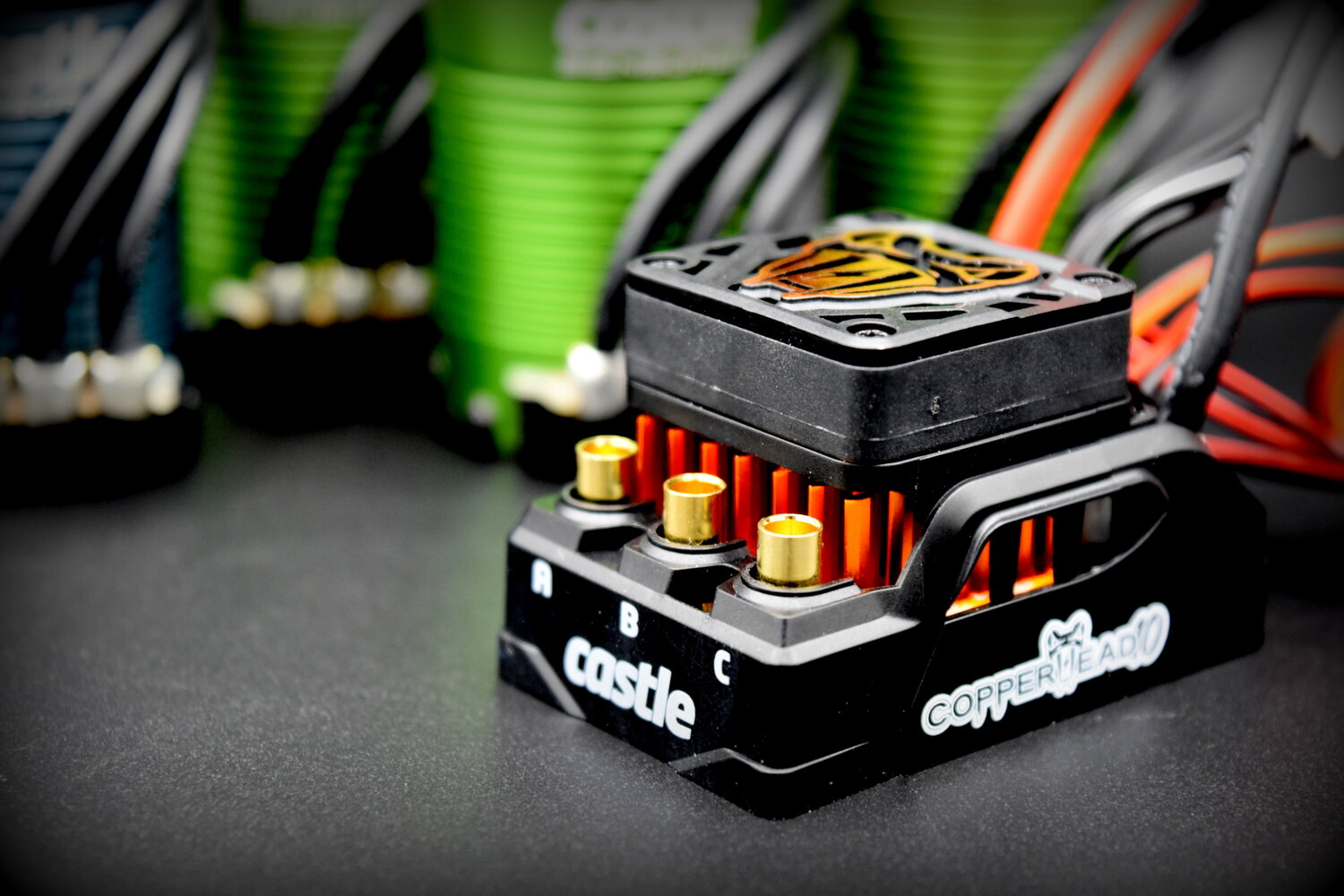

Copperhead 10 Sensored ESC & 3800Kv Motor Combo

Castle Creations 010-0166-08

$ 20495 $ 24995

Current Inventory: 1

Earn 615 DH Reward Points on this purchase!

The COPPERHEAD 10 PERFORMANCE 1:10 SCALE ESC is ideal for those who want sensored motor support, data logging, a 6A peak selectable internal BEC (5.5V or 7.5V) and Castle's signature reliability and performance, in the meanest looking ESC around! If you're looking to transform your 1:10 scale stock vehicle from dull to dangerously fun, COPPERHEAD can do it with its buttery smooth starts, CRYO-DRIVE enabled performance, and up to 4S power in a compact, easy-to-install footprint.
Product Features +

  • Input Voltage Range (ESC): 2s-4s LiPo
  • SMARTSENSE, SENSORED ONLY and BRUSHED Running Modes
  • Selectable 5.5V or 7.5V (6A peak) BEC (Battery Eliminator Circuit)
  • CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs.
  • ESC is housed in a durable injection molded case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer.
  • 30mm removable fan and DUAL USE FAN GUARD
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
  • DATA LOGGING LITE captures and records performance data from your vehicle to maximize performance and battery life. (Battery Voltage Battery Ripple, Controller temp, Motor RPM, Motor Temp)
  • SMARTSENSE uses the motor's sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle's ultra-efficient sensorless mode.
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
  • Optional smartphone-based programming with the B-LINK BLUETOOTH ADAPTER (sold separately) and CASTLE LINK APP available on Google Play or Apple App Store
  • PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA.

    • Product Specs +

  • Input Voltage Range: 2S-3S LiPo, recommended.
  • Kv: 3800
  • Max. RPM: 100,000
  • Size: Length: 49.5mm
  • Diameter: 36mm
  • Weight (w/wires): 197 g / 6.9oz
  • Shaft Size: Length: 15mm
  • Diameter: 1/8" (3.17mm)
  • Mounting Hole Specifications: M3 @ 25mm
  • Cooling Fan: Optional
  • Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire.
  • Application Guidelines: Ideal for 1:10 scale low speed rock crawlers/trail runners on 2S-3S weighing less than 8lbs. Can also be used in more aggressive setups in lighter 1:10 scale touring cars, stadium trucks or buggies weighing up to 5lbs.
  • Max. Recommended Vehicle Weight: 8lbs when used for low speed/moderate driving style like rock crawling and trail running;
  • 5lbs for more racing and aggressive driving styles. (The 1410 3800kv recommend for heavier rigs and aggressive driving.)

    • Included with Product +

  • Copperhead 10 ESC
  • 1406-3800Kv Motor

    • Additional Product Details +

    Brand: Castle Creations

    MPN: 010-0166-08

    Added: 2021

    Status: Non-Stock Dec24

    Discount Eligibility: Discount Eligible

    SKU: CSE010-0166-08

    UPC: 819326012341

    Location: L02-02-10
