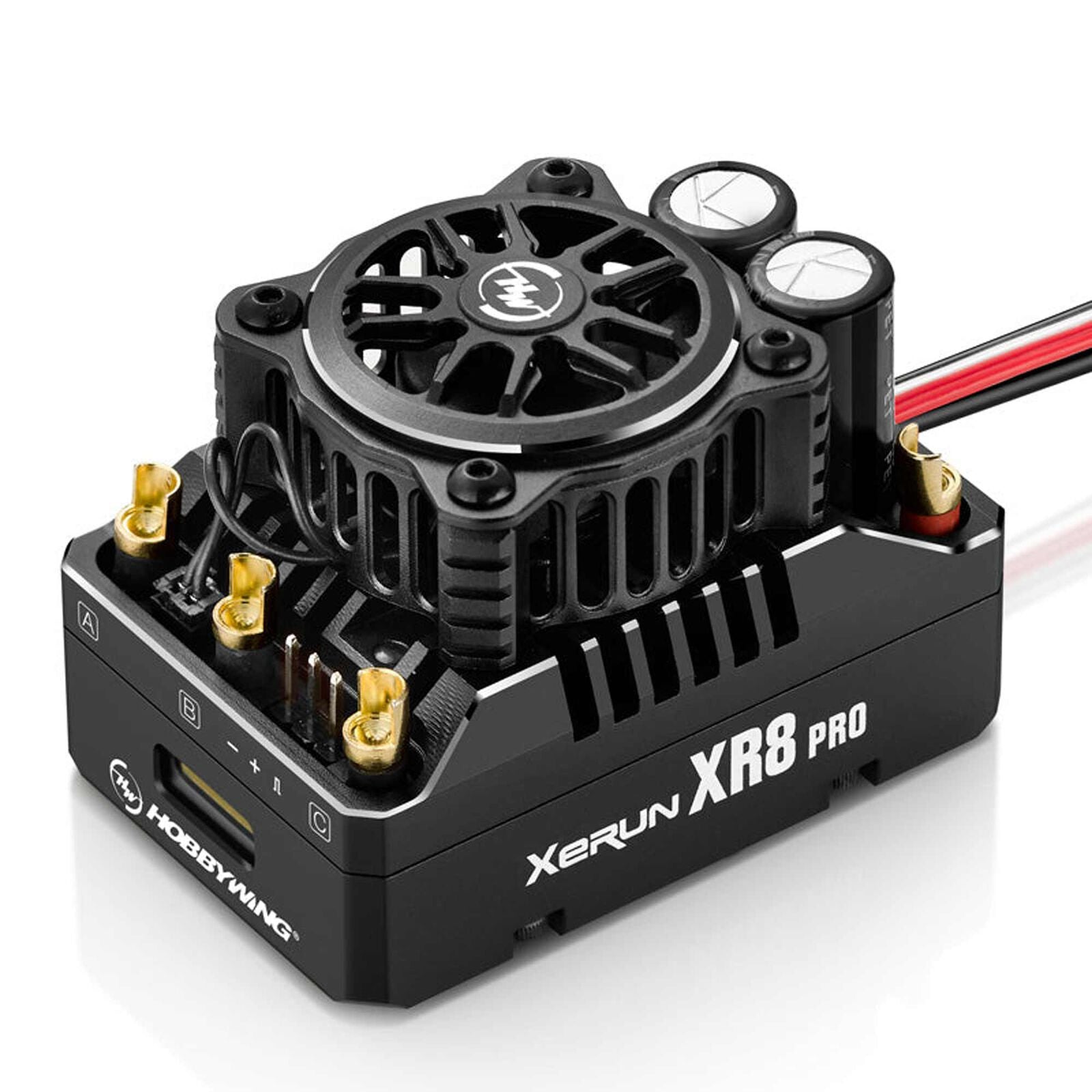

XR8 Pro G3 1/8 Competition Sensored Brushless ESC

Hobbywing Xerun XR8 Pro G3 1/8 Competition Sensored Brushless Electronic Speed Controller. Loaded with cutting-edge technologies and features, this 1/8 competition ESC is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! When combining this ESC with an optional 4268/4274 G3 motor, the maximum speed can be promoted by 50%. For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition

Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature

Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F

Dual brake mode

Advanced Turbo and Boost timing technology

Built-in reverse polarity protection circuit

Real-time data recording function, easy to obtain power running status

Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload

Superior dustproof protection

Custom ultra-soft 11AWG silicone wire

Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand and other foreign objects

Intelligent fan with noise reduction and power saving functions

ESC:

Scale: 1/8

Type: Brushless Sensored

Input Voltage: 2-4S LiPo

BEC Output: 6V/7.4V Adjustable

Continuous: 200A

Peak: 1080A

Motor Limit: 3S LiPo: KV= 4000 3660 Size motor / 4S LiPo: KV= 3000 4268 Size motor

Braking mode: FOC/BLDC

Programmable: Yes, Via OTA Programmer or LCD G2 Program Box

Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck

Size(LxWxH): 54.8x38.8x36.8mm

Weight: 102.8g

(1) Xerun XR8 Pro G3 1/8 Competition Sensored Brushless ESC

Factory Decals and Accessories

Brand: Hobbywing

MPN: 30113400

Added: 2023 - November

Status: Stock

Discount Eligibility: Discount Eligible

SKU: HWI30113400

UPC: 088718508667

Location: Q05-09-12
