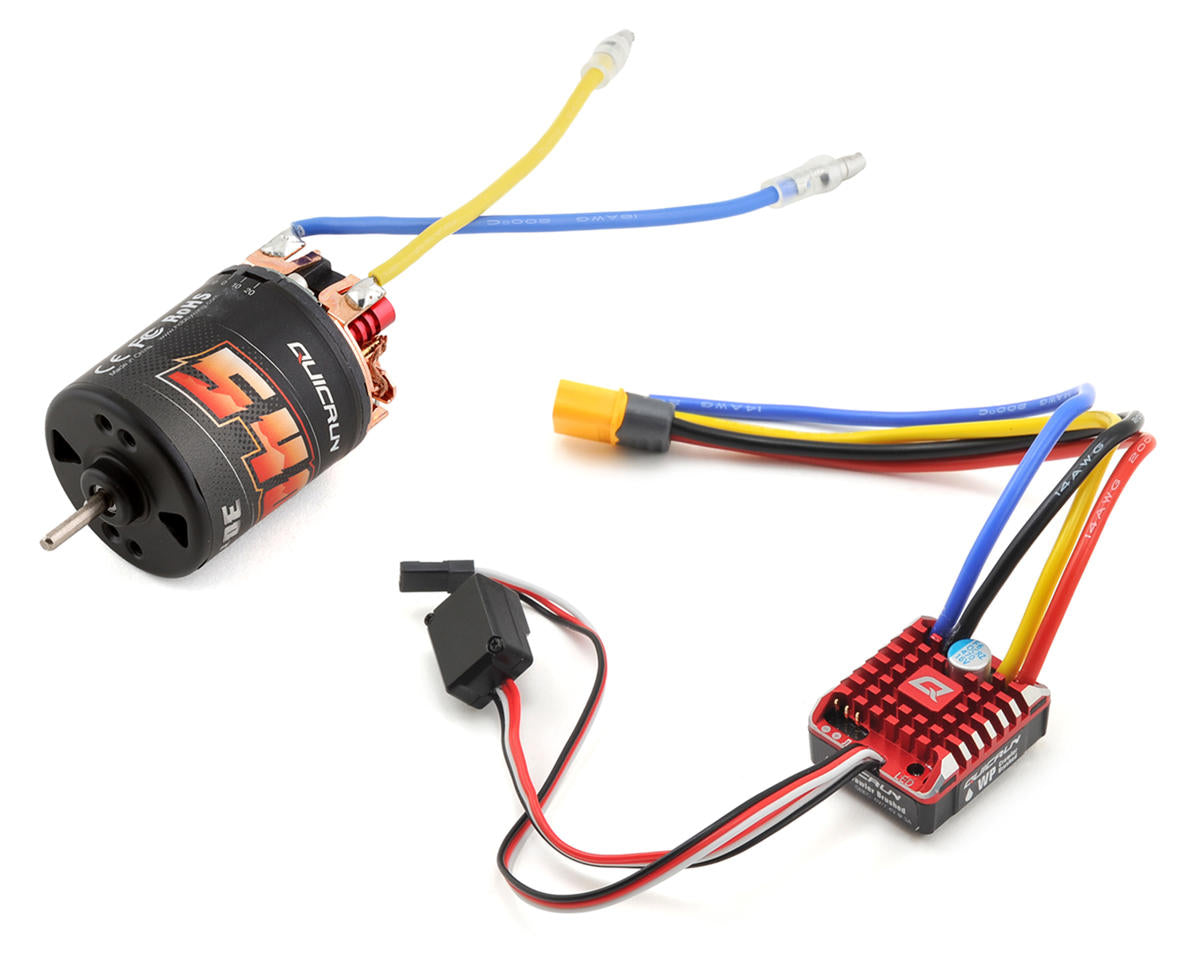

Waterproof 1080 G2 ESC/540 Motor Rock Crawling Combo

The Hobbywing QuicRun Waterproof 1080 G2 Brushed Crawling ESC is designed to bring top levels of performance to the Crawler ESC category. This ESC is extremely compact and features many updates! The most impressive is the "Real Car Mode". Using an idle channel on your transmitter allows you to pull the throttle and switch between forward or reverse with pushing the throttle applying brake. This will bring an added level of realism to your RC adventure. This epic combo includes the Hobbywing QuicRun 540 Brushed Motor for out of the box performance and efficiency.

Water-proof and dust-proof, suitable for all weather races.

Small size, with built-in capacitor module.

100% Waterproof

Adjust drag brake in real time

Optimized software allows for cooler operating temperature when compared to prior 1080 ESCs

Aluminum case for great heat dissipation

Enhanced BEC to meet the needs of more modern servos

15 Adjustable parameter items to suite your driving needs

ESC

Suggested Application: 1/10 Rock Crawlers

Motor Type: Brushed

Input Voltage: 2-3S LiPo

Current:

Continuous: 80A

Burst Current: 400A

BEC Output:

Voltage: 6/7.4/8.4V

Continuous Current: 4A

Peak Current: 6A

Connectors:

Motor: 4.0mm Bullets

Battery: XT60

Wire Dimensions:

Motor: 14AWG (200mm long)

Battery: 14AWG (200mm long)

Dimensions (LxWxH): 1.46x1.25x0.72" (37.2x31.9x18.4mm)

Weight: 2.47oz (70.2g)

Programming: Onboard USB / Remote Programmer

Motor

Turn: 30T

Input Voltage: 2-3S LiPo

Brushed/Brushless: Brushed

Length: 2.09in (53.2mm)

Diameter: 1.41in (36mm)

Shaft Diameter: 0.125in (3.175mm)

Weight: 5.92oz (168g)

(1) 1080 G2 ESC

(1) QuicRun 540 Brushed Motor

(1) Manual

Brand: Hobbywing

MPN: 38020349

Added: 2023 - November

Status: Stock

Discount Eligibility: Discount Eligible

SKU: HWI38020349

UPC: 088718520119

Location: N05-07-02
