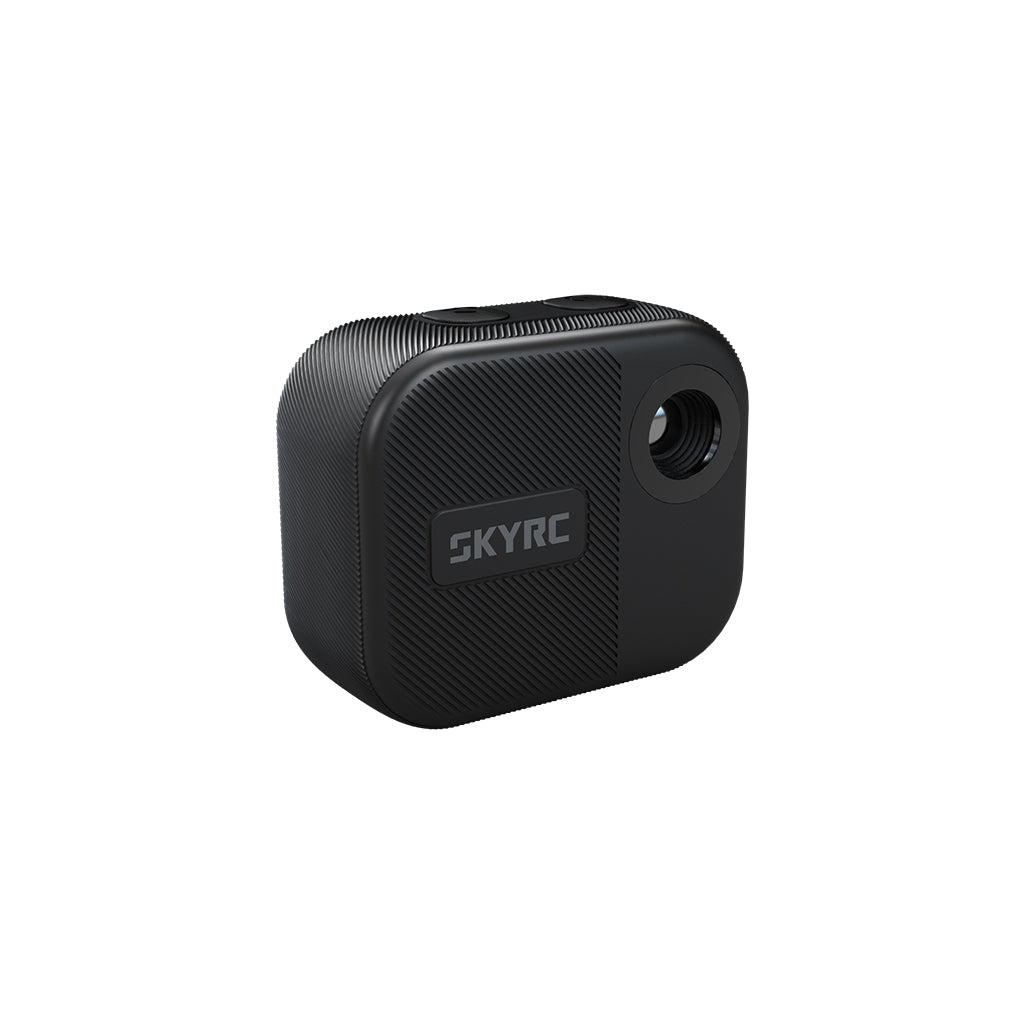

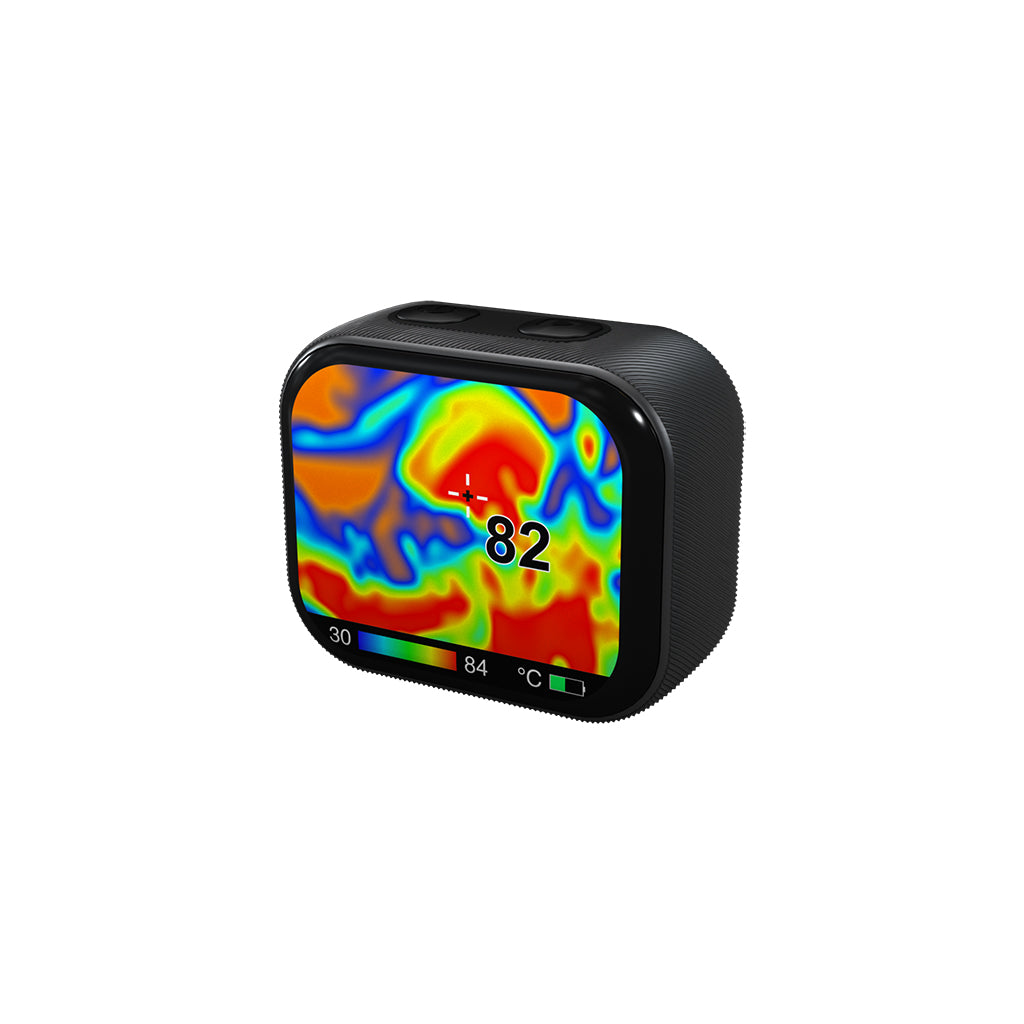

ITV500 Mini Heatvision

Heat is the first warning. Invisible. Until you see it.
The motor runs hot — permanent magnets begin to demagnetize, and output performance drops for good.
The ESC is overloaded for too long — MOSFETs enter thermal runaway and eventually fail.
Battery temperature rises abnormally — aging accelerates and the risk of swelling increases dramatically.
Poor connector contact — higher resistance leads to overcurrent and localized melting.
Before anything breaks, it heats up. The problem is, most RC drivers have never truly seen those temperatures

How ITV500 Sees Heat:

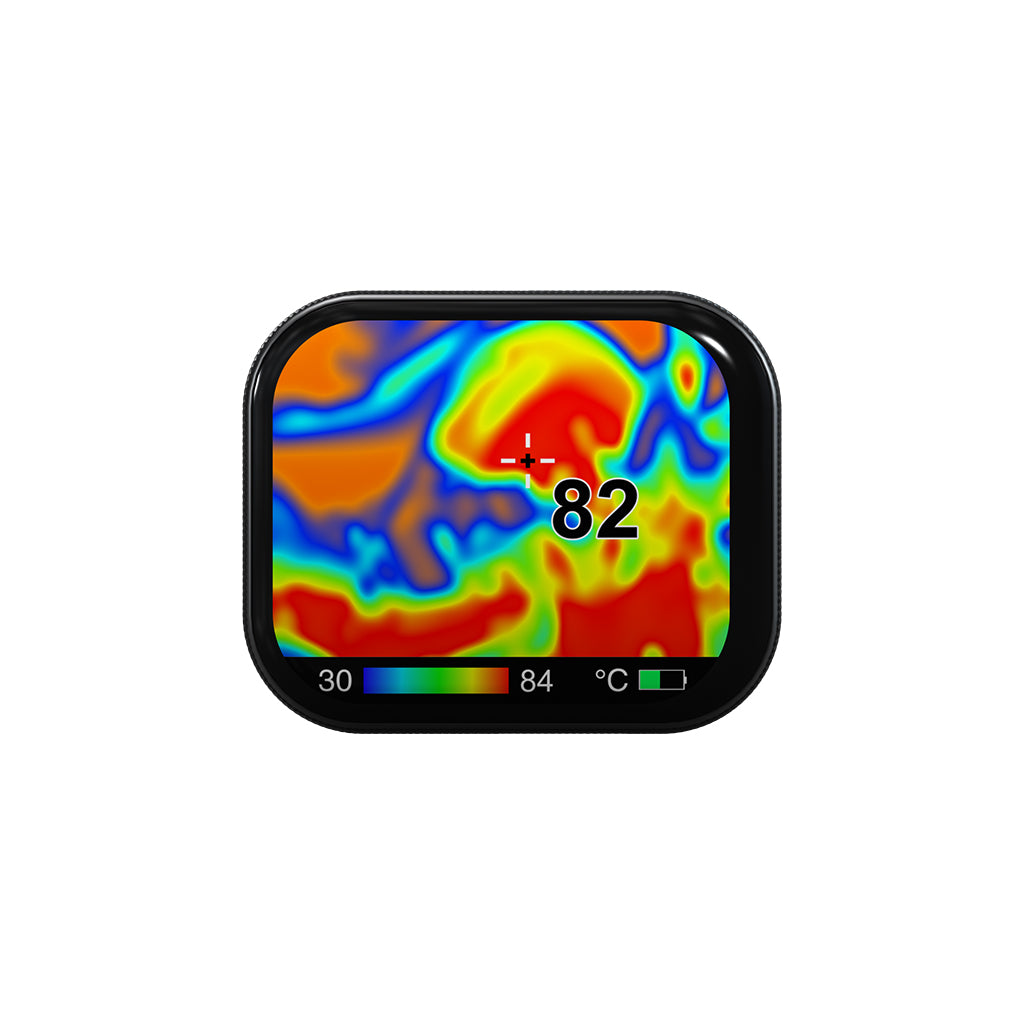

Every surface radiates invisible heat. ITV500 detects FIR(far-infrared) energy and converts it into accurate, contact-free temperature data — transforming it into a live thermal image, so you can see temperature, instantly.

Born for RC Tuning:
Every degree matters when performance is on the line. Whether you’re chasing lap consistency or fine-tuning gearing, ITV500 gives you instant thermal feedback — helping you protect your power system and extract every bit of speed. Precision up to ± 2 °C means you always know what’s running hot.

Tuned for Every Material in Your RC Rig:
From metal motors to carbon chassis, ITV500’s 0.01–1.00 adjustable emissivity 1 ensures accurate readings across every surface — capturing true temperatures without material bias.

Fast Charging

Quick Update

Recharge via USB-C and upgrade firmware effortlessly with UF2 drag-and-drop — no tools, no hassle.

Size: 46 × 38 × 20.1 mm

Weight: about 38g

Display Type: 1.83" capacitive touch screen 240 × 284 pixels

IR Resolution: 32 × 24 pixels

Thermal Sensitivity: 100mK @ 1Hz

Field of View: 55° × 35°

Frame Rate: 8 FPS

LCD Display: 240 × 284 pixels

Battery: 600 mAh rechargeable lithium battery

Charging Interface: USB Type-C

Charging Input Voltage: DC 5V

Temperature Measurement Range: -20°C(-4℉) ~ 300°C(572℉)

Measurement Accuracy: ±2.0℃(3.6℉)

Measuring Distance: <5 m (for high accuracy, within <20 cm)

Languages: EN / CN / FR / DE / ES / JP

Working and Storage

Operating temperature: -5℃-60℃

Working humidity: ≤85%RH, non-condensing

Storage temperature: 0°C–35°C

Storage humidity: ≤65% RH, non-condensing

Brand: SkyRC

MPN: SK-500047-01
