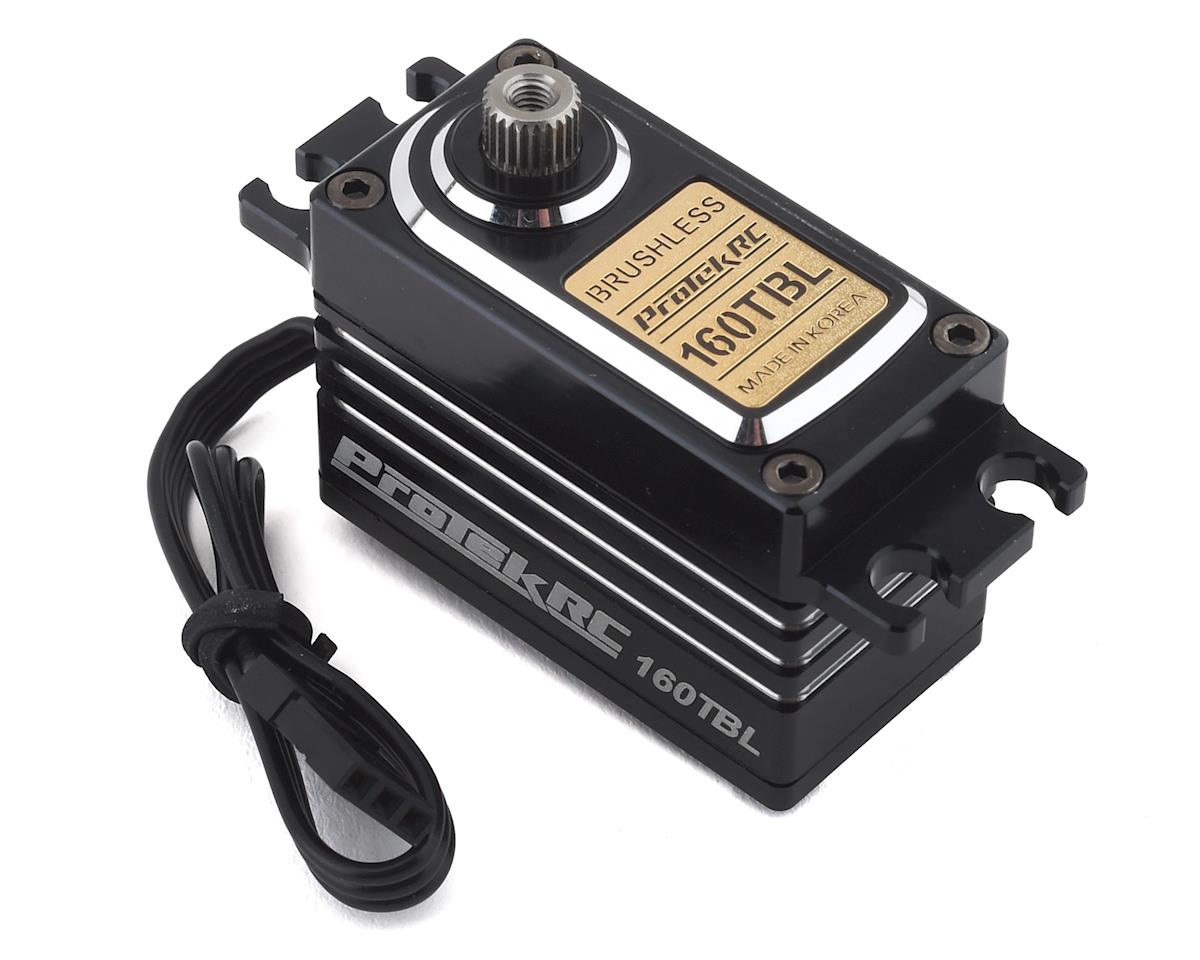

Low Profile High Torque Brushless Metal Case Servo

Brushless servo technology has improved by leaps and bounds. Finally, brushless servos can deliver holding power, speed and precision that can compete with a coreless servo. Combine that with the superior efficiency and lifespan of a brushless motor and you have a servo that hits all the marks, with the performance and quality required for a pro level build. A black anodized aluminum case with aluminum and gold accents give this servo a stealthy look that sets it apart from the rest. The aluminum upper case provides bomb proof durability and the heat sink center case offers efficient heat dissipation and helps to reduce weight. An aluminum, single arm clamping servo horn is included, as well as a full set of servo mounting washers for a rock solid and durable installation.

Used by Ryan Maifield to win the 2019 Roar 4wd Off-Road National Championships

Ideal for any 1/10 to 1/8 surface application that can benefit from a low profile configuration

Full aluminum black anodized case

High voltage circuitry

0.08 transit speed, and 230 oz-in of torque @ 6.0V

0.06 transit speed, and 290 oz-in of torque @ 7.4V

Includes aluminum single arm clamping servo horn and servo mounting washers for a rock solid installation

140mm long servo lead

Full metal gears and dual ball bearings

Brushless motor

Servo Model

160TBL

Recommended Application 1/10 to 1/8 Scale Surface

Operating Voltage 4.8V - 7.4V

Operating Temperature 14° to 140° F (-10 to +60° C)

Operating Speed @ 6.0V 0.08/60° sec

Operating Speed @ 7.4V

0.06/60° sec

Dynamic Torque @ 6.0V

230 oz-in (16.5 kg-cm)

Dynamic Torque @ 7.4V

290 oz-in (20.9 kg-cm)

Motor Type

Brushless

Output Shaft 25 Tooth

Gears Metal

Weight 55g

Pulse/Frequency

1520?s / 333hz

Dimensions 39.5x20x30.6mm

Length (Bottom to Mount)

19.35mm

Brand: ProTek RC

MPN: PTK-160TBL
