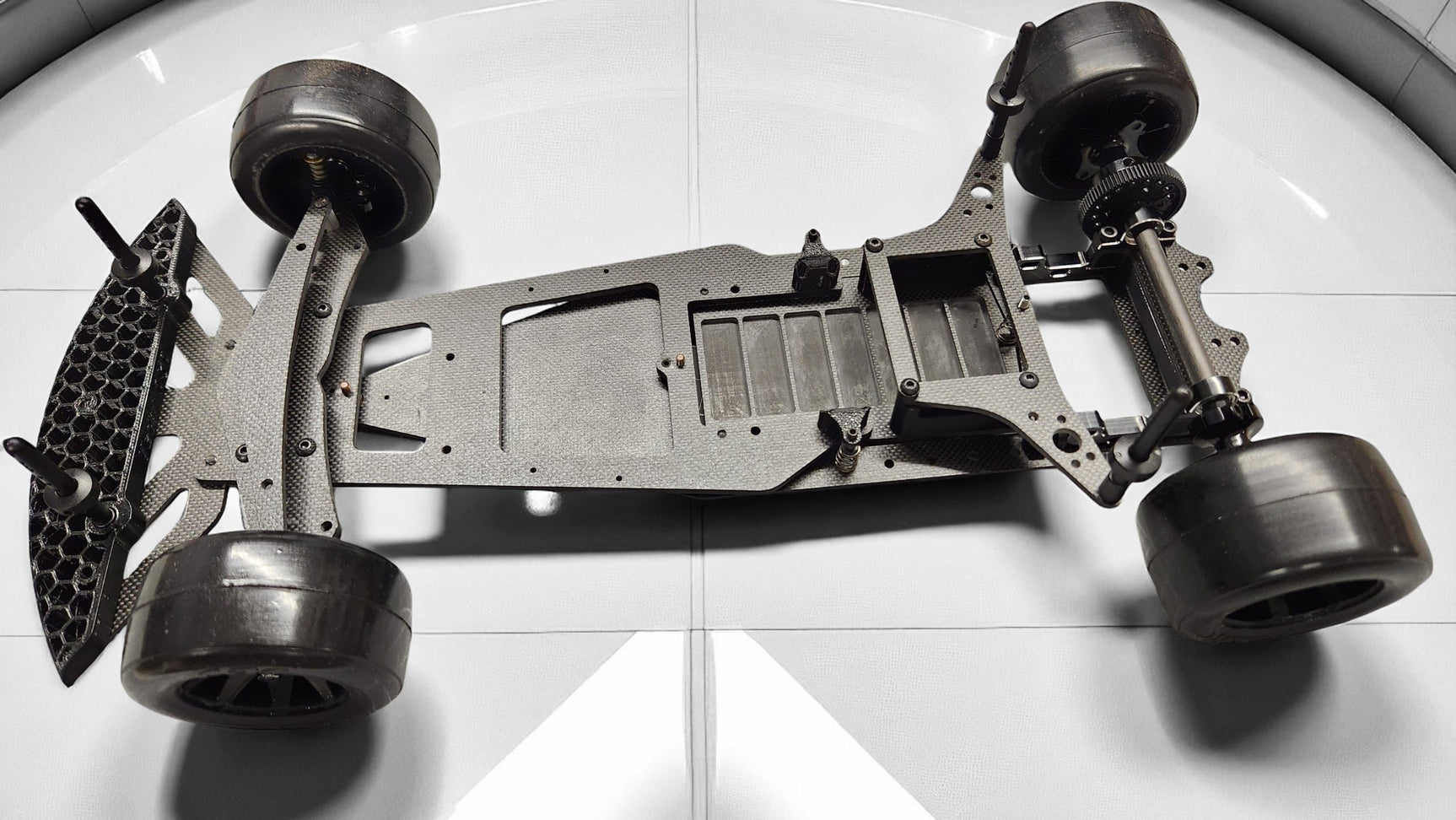

M-200R World GT-R 1/10 Pan Car Kit

The new M-200R is MetriCks based World GT-R car (using all-metric hardware). The car is for 200 mm wide racing on rubber tires, hence the name M-200R. The new car sets a new "metric" for performance, durability and affordability.

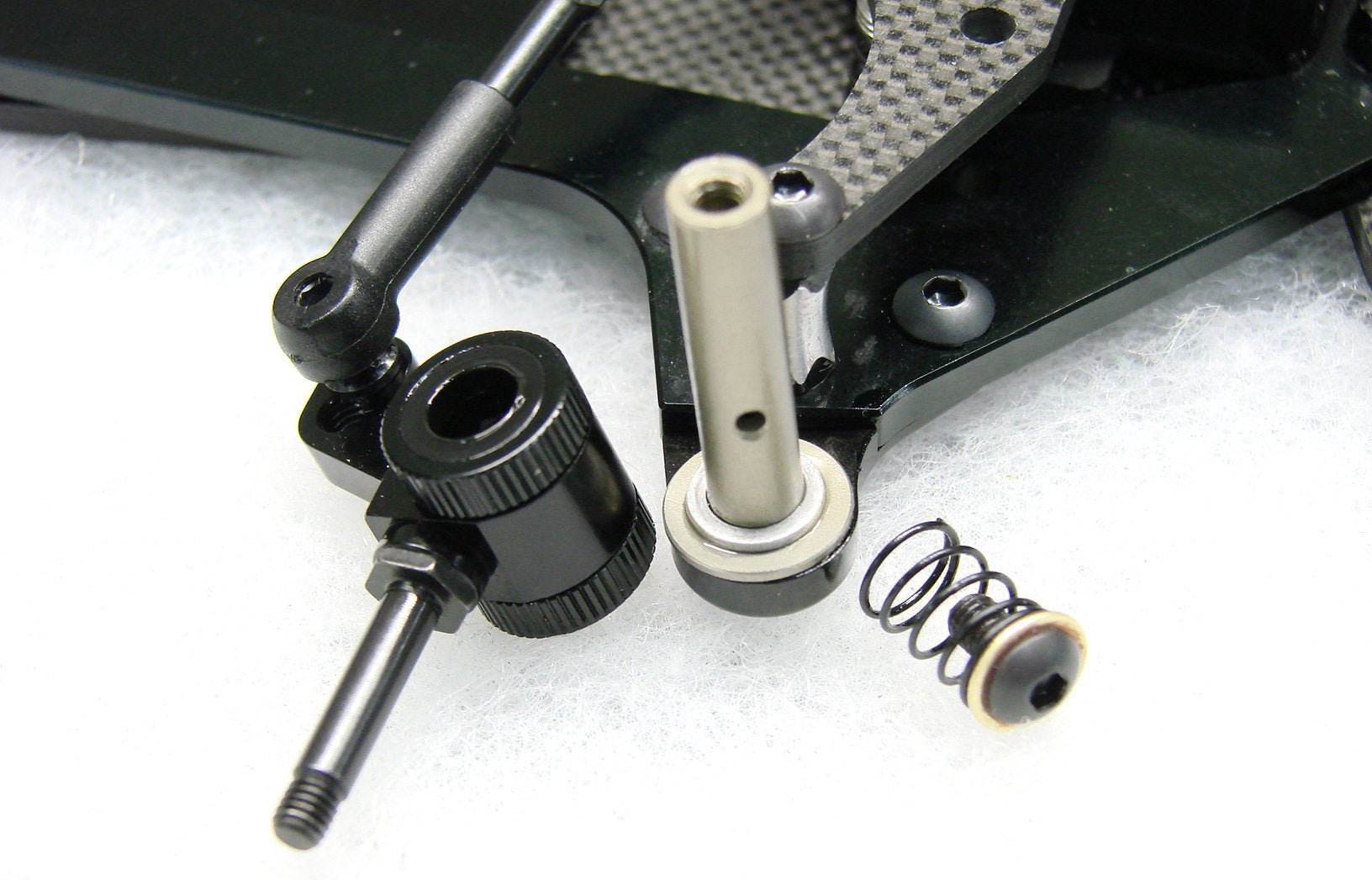

In the front, the M-200R features CRC's Ultra-tune suspension. Just change the lower C/C plate (caster/camber plate) and your caster and camber are perfectly set. A "4 -1" plate gives you 4 degrees caster and -1 camber. Switch to the 5 -.5 plate and you have 5 caster and negative .5 degrees of camber. Go smash a bunch of barriers, and your caster + camber settings are still the same. We have a plethora of different combinations available. And this is from Team CRC, so the price for optional C/C plates will be affordable. Throw your expensive setup gauge in the garbage, you wont need it.

With a simple and quick change of the C/C plate (caster/camber), you can set caster and camber with precision and ease. No setup station, no guessing, no fiddling. Perfect camber and caster is machined into the pieces.

The Ultra-tune front end uses the durable 1/8 x 5/16 wheel bearings. These bearings are much stronger than the 3/16 x 5/16 bearing found on many other cars. The new line of MetriCKs based cars from CRC are the ONLY modern-day road race cars using the more durable 1/8 x 5/16 bearing, all others use the easily destroyed 3/16 x 5/16 bearing.

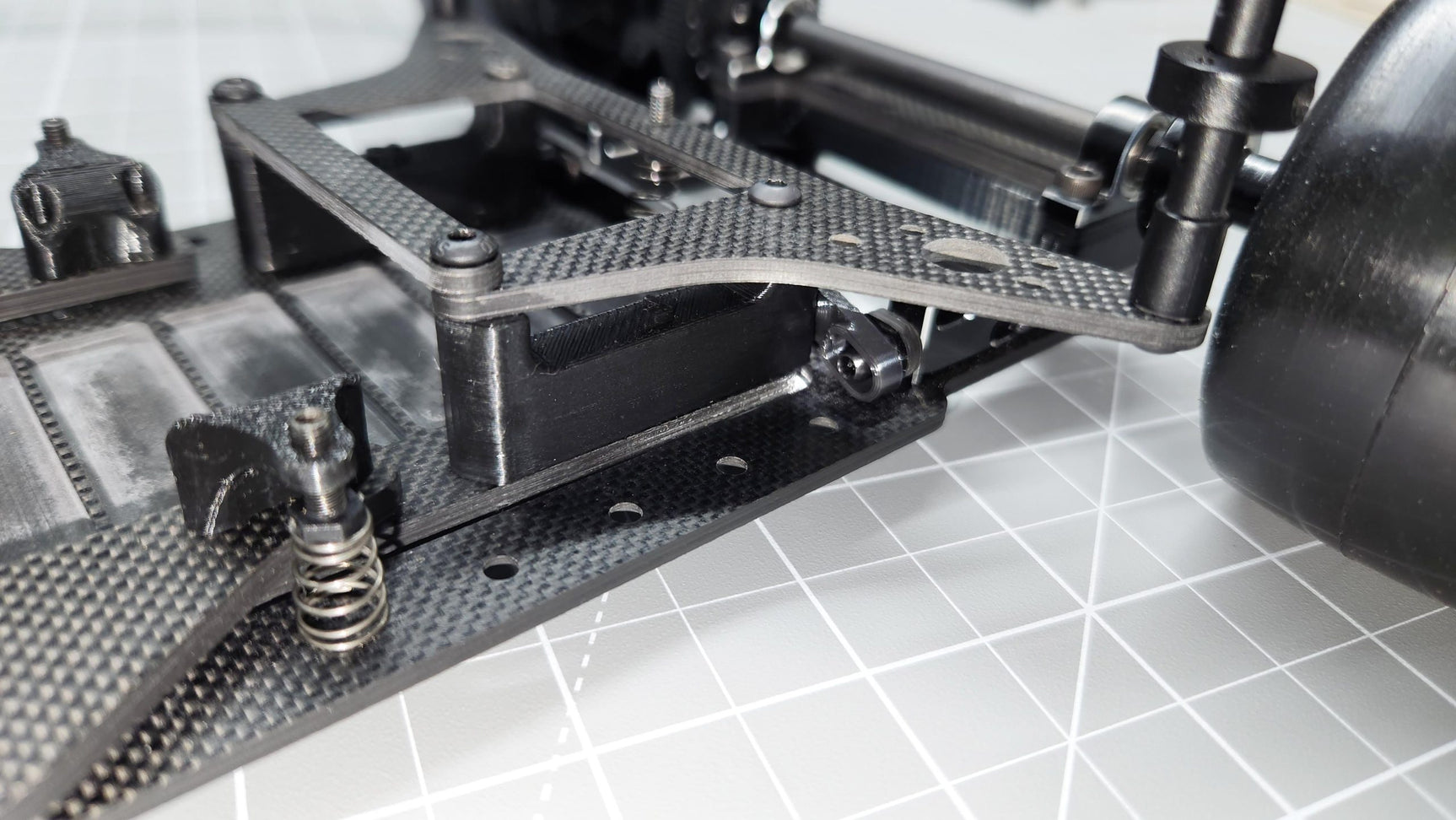

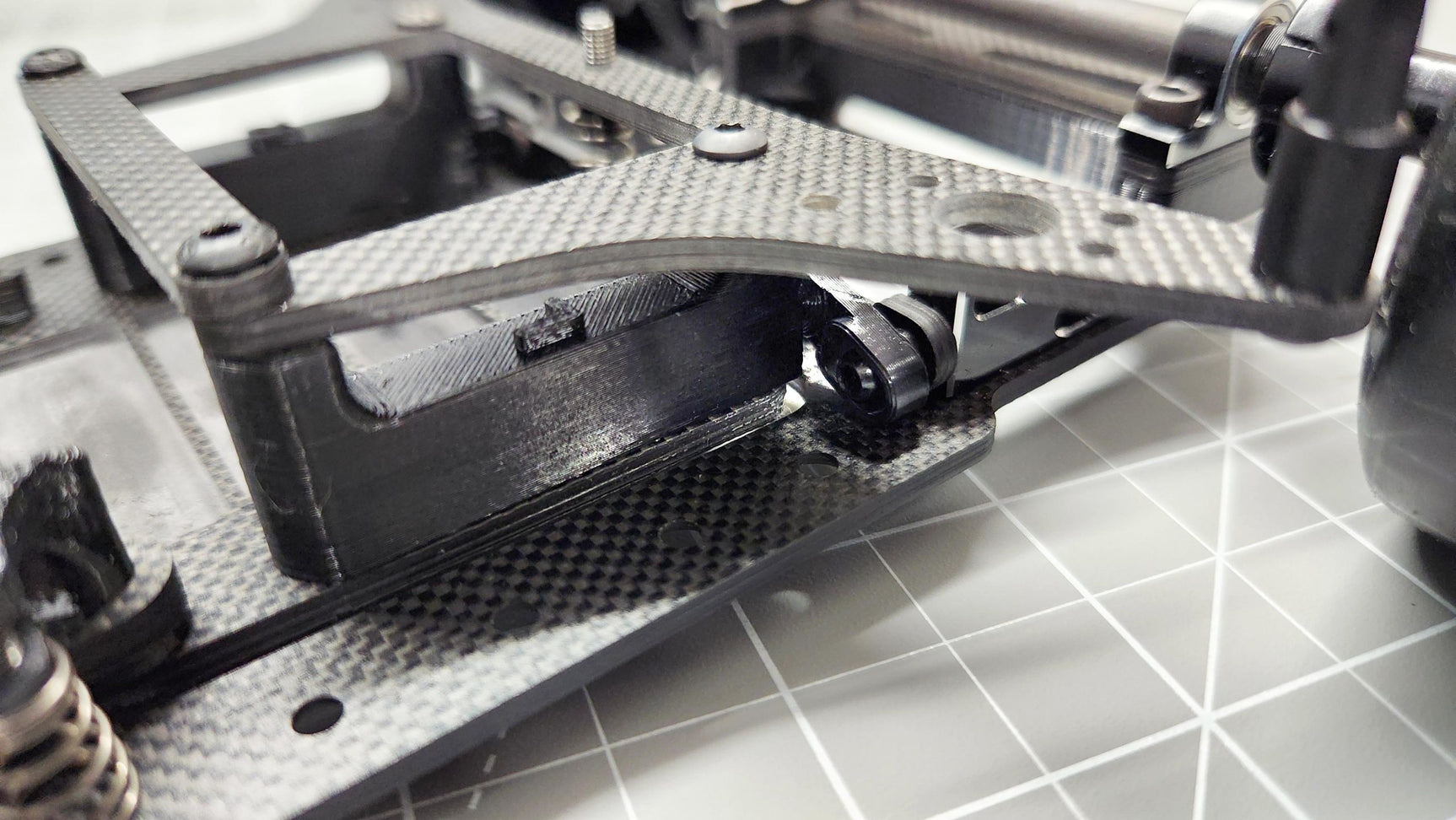

The mid-mounted side-to-side roll springs separate the roll stiffness from the center/bump stiffness allowing more infinite adjustments. For those traditionalists that like the side springs in the rear, there is a provision to mount the side roll springs in back. The M-200R features an easy to adjust rear center spring for preload, setting battery height and bump stiffness.

Super easy battery height and droop adjustment. From the top, with a simple hex head, the center preload is adjusted to alter the amount the car "sags in" when race ready. From the bottom of chassis, a simple twist of a wrench on the limit set screw adjusts the "extension" or down travel of the car. Super easy to see and adjust.

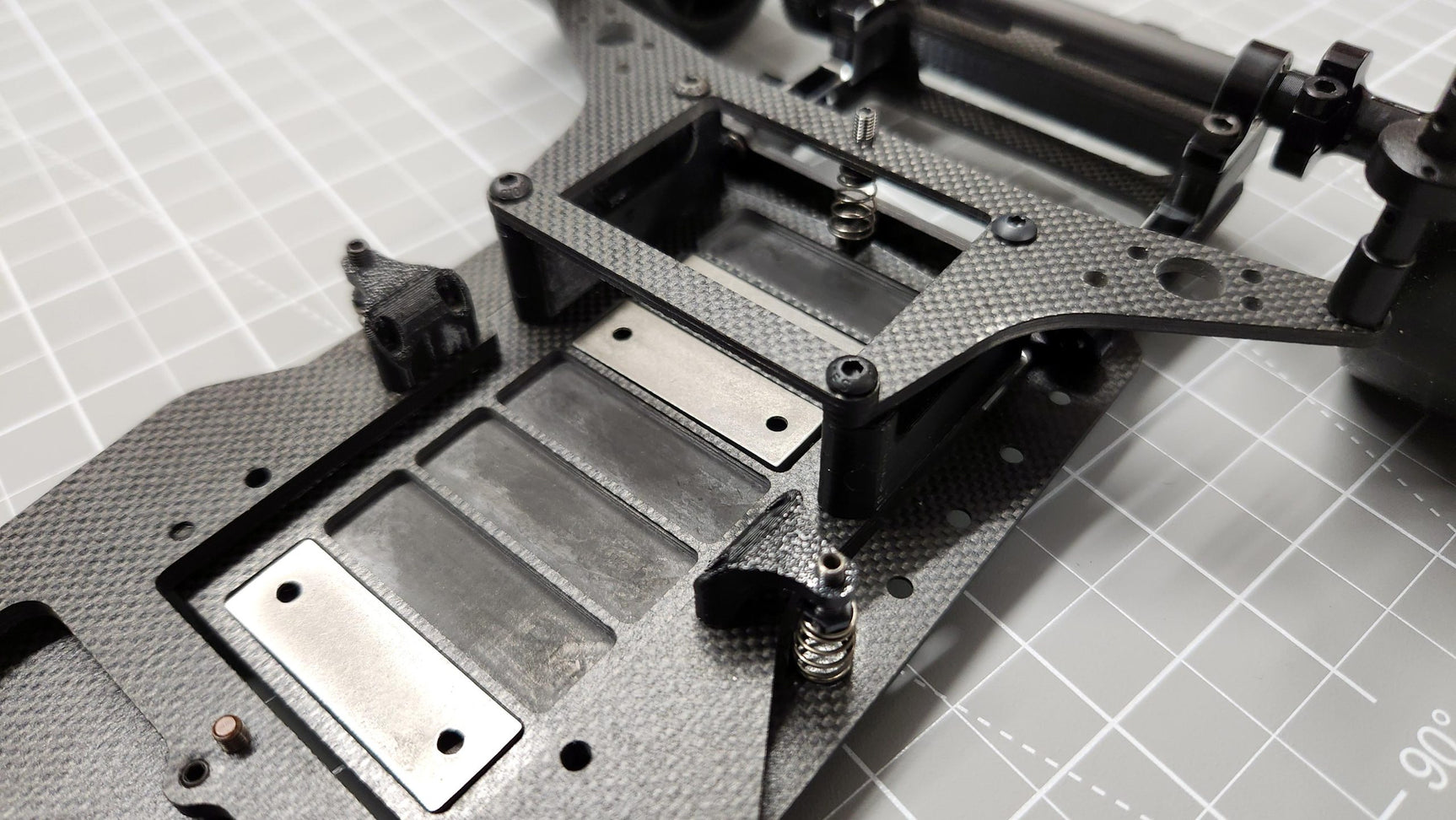

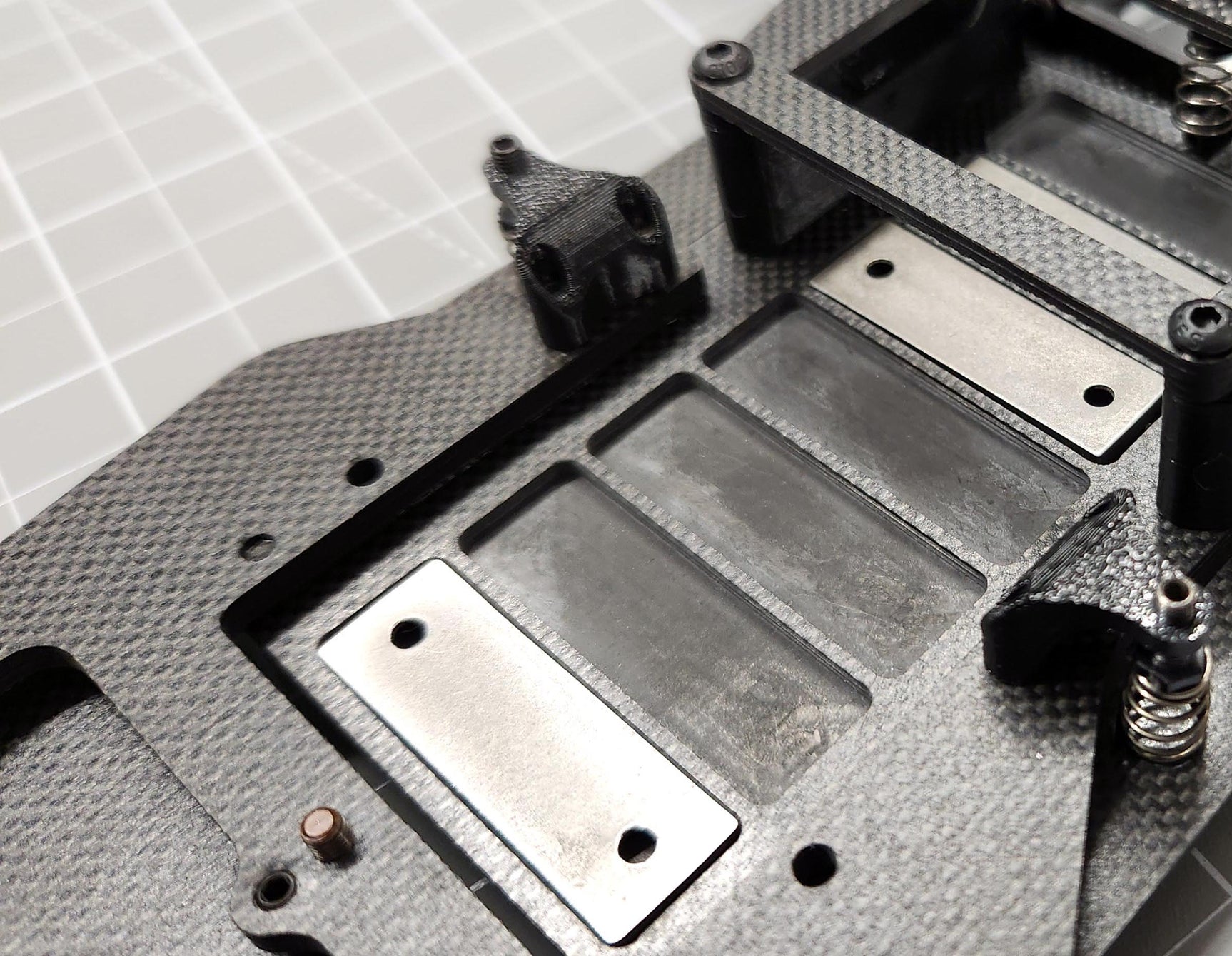

Another goal is low center of gravity. With the M-200R, the tungsten weights fit below the battery, nearly with the chassis bottom, not stacked on the chassis or needing an added "weight plate" on the chassis. We put the ballast at the very lowest position possible. And with this car being so lightweight (needing lots of weight) and the ballast is so low, the center of gravity of this car is extremely low. Speaking of tungsten weight, CRC has it available and it is a common tungsten ballast available in many hobby stores, super affordable and easy to get. Keeping with the CRC tradition, high performance at a great price

The inline rotational dual dampers are super easy to set, change and maintain. The damper rotors are driven by a captured ball socket system. This method has nearly ZERO free play. The "fork driven" systems used in other designs necessitate that a certain amount of free play or "backlash" must exist for smooth movement. With the small amount of total side-to-side suspension travel in a modern a pan car, if the system needs free play to move, 20 - 30% of the travel may fall into this "dead zone" where for a moment, the car has zero damping. The inline, ball-captured dampers are easy to maintain and keep consistent.

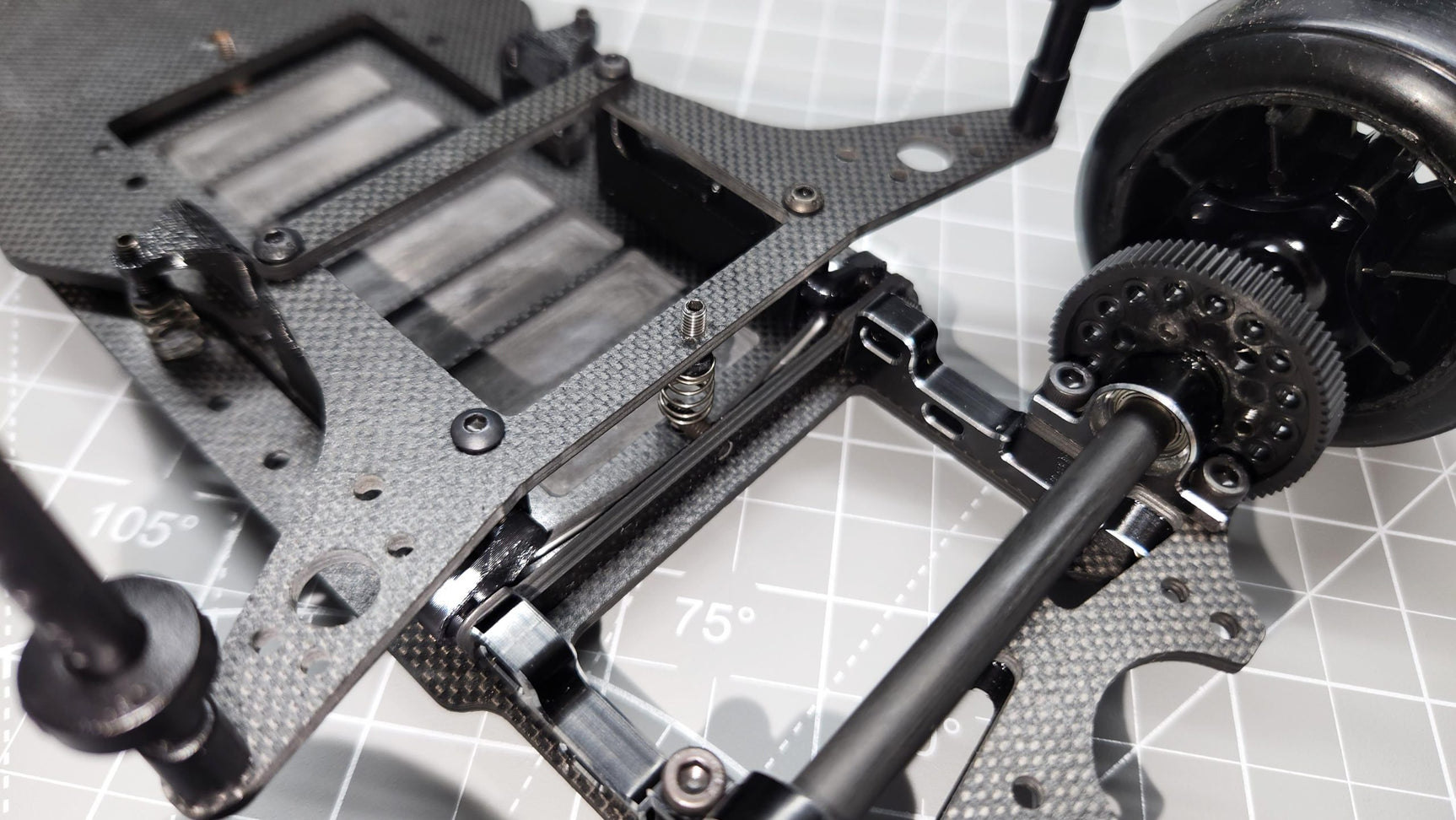

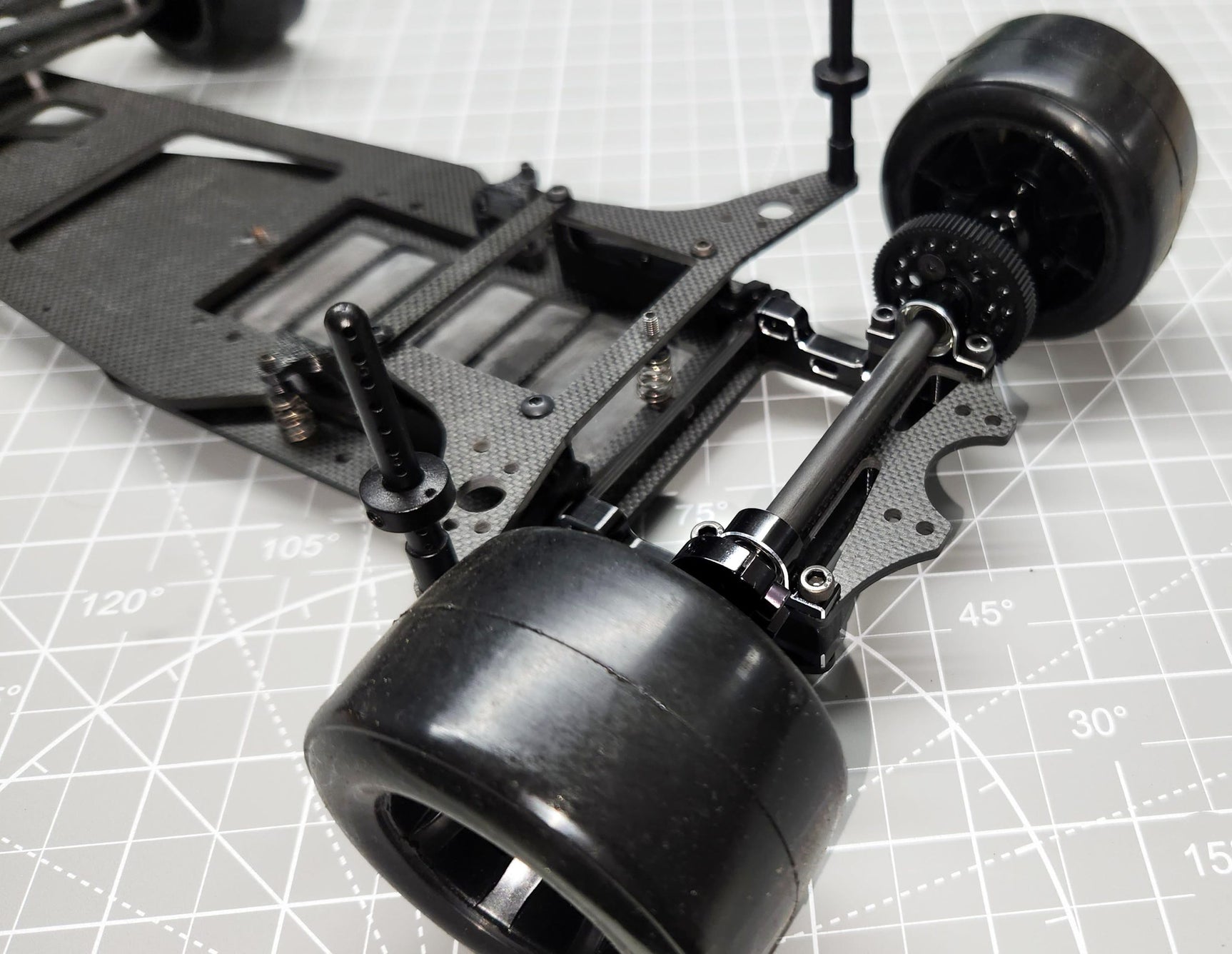

The car features super strong, precision machined motor plates with a very low center of gravity. Two locking hubs clamp onto a lightweight differential axle which makes is less costly to switch to a differential. Just add a diff hub and bearing to affordably switch to a differential, perfect for loose or lower grip tracks.

Fast and efficient in the corners

Super low center of gravity

Super simple in design and use

Easy to race and maintain

Excellent durability

In the CRC tradition, keep the car affordable.

Battery

Motor

ESC

Servo

Radio

Pinion Gear

Spur Gear

Tires

Body

Brand: CRC

MPN: 3101

Added: 2025 - July

Status: Non-Stock (Oct 23 - TRA Exclusive)

Discount Eligibility: Discount Eligible

SKU: CLN3101

UPC: 800734031017

Location: Store
