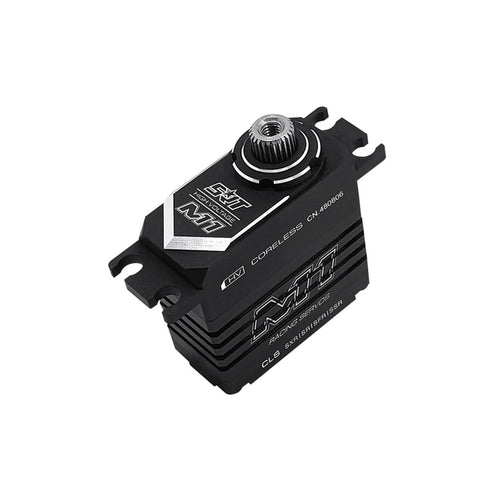

M11 Mini HV Coreless Digital Servo, 0.055sec / 125.0oz @ 8.4V

SRT Servos SRTM11


$ 7699

Current Inventory: 1

Product Description +

The latest generation of SRT servos provides you with the performance you need for any application. This is a mini sized servo for High-Voltage applications up to 8.4V and features an all metal case construction for the ultimate performance.

Product Features +

  • Special 1/12 pancar servo
  • Servo supports various ultra-high-speed modes like SSR, SFR, SXR, SR.
  • Incredible efficiency and low power consumption
  • 2 usec Dead Band
  • 1-Year Limited Warrant
  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • Control System: Pulse Width Control
  • Working Frequency: 1520Is / 333hz
  • Operating Voltage: dc6.0-8.4v
  • Operating Temperature Range: -10 to + 60 degree
  • Operating Speed (6.0v): 0.07 sec/60 degrees at no load
  • Operating Speed (7.4v): 0.065 sec/60 degrees at no load
  • Operating Speed (8.4v): 0.055 sec/60 degrees at no load
  • Stall Torque (6.0v): 7.0kg.cm (97.2 oz/in)
  • Stall Torque (7.4v): 8.0kg.cm (111.1 oz/in)
  • Stall Torque (8.4v): 9.0kg.cm (125.0 oz/in)
  • Potentiometer Drive: Direct Drive
  • Dimensions: 28.5x13.4x29.0 mm /1.12x0.53x1.14 in
  • Weight: 28.0g (1.0 oz)
  • Connector Wire Length: jr 170 mm

  • Additional Product Details +

    Brand: SRT Servos

    MPN: SRTM11

    Added: 2026 - September

    Status: Stock

    Discount Eligibility: Discount Eligible

    SKU: SRTM11

    UPC: 6969000011000

    Location: N05-08-09
