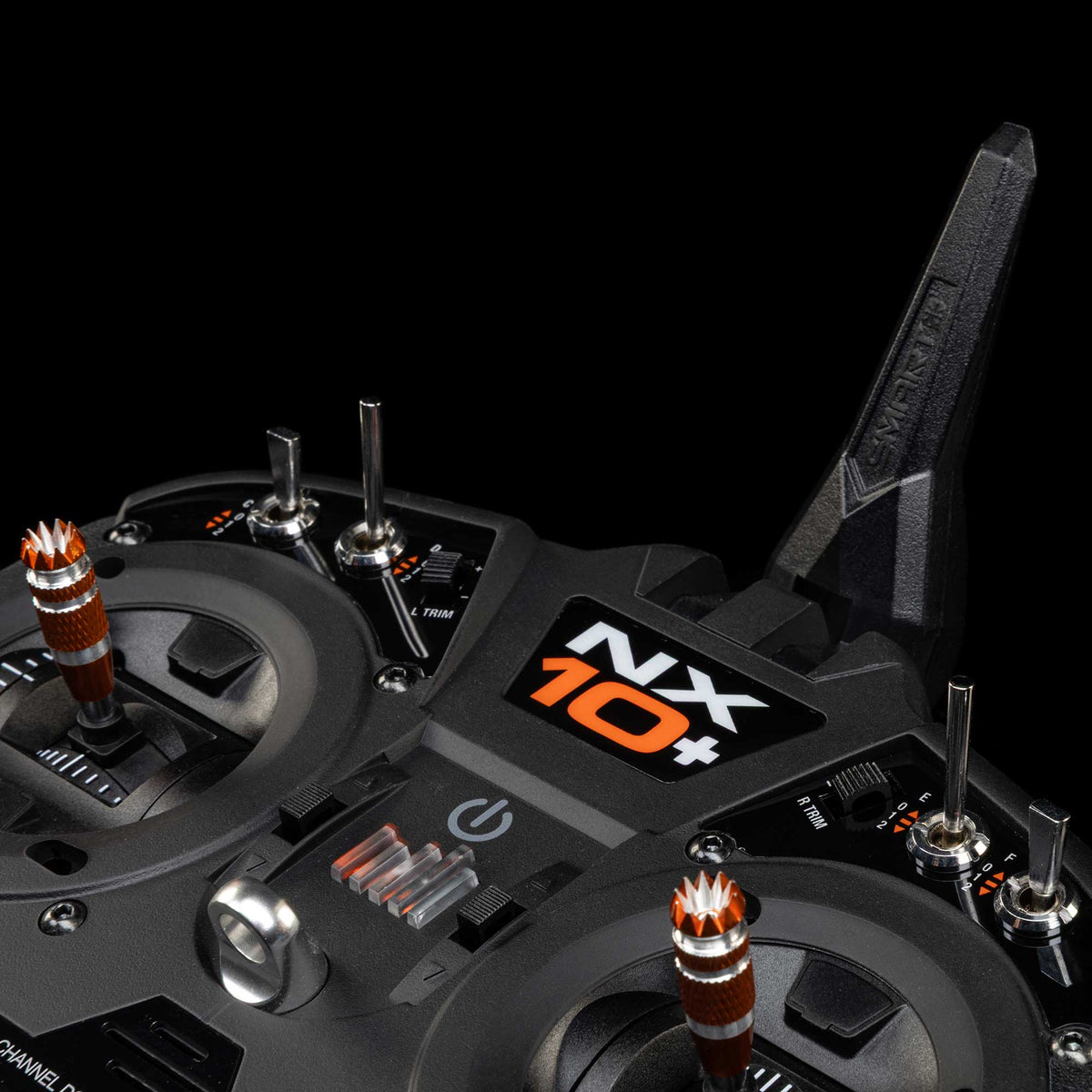

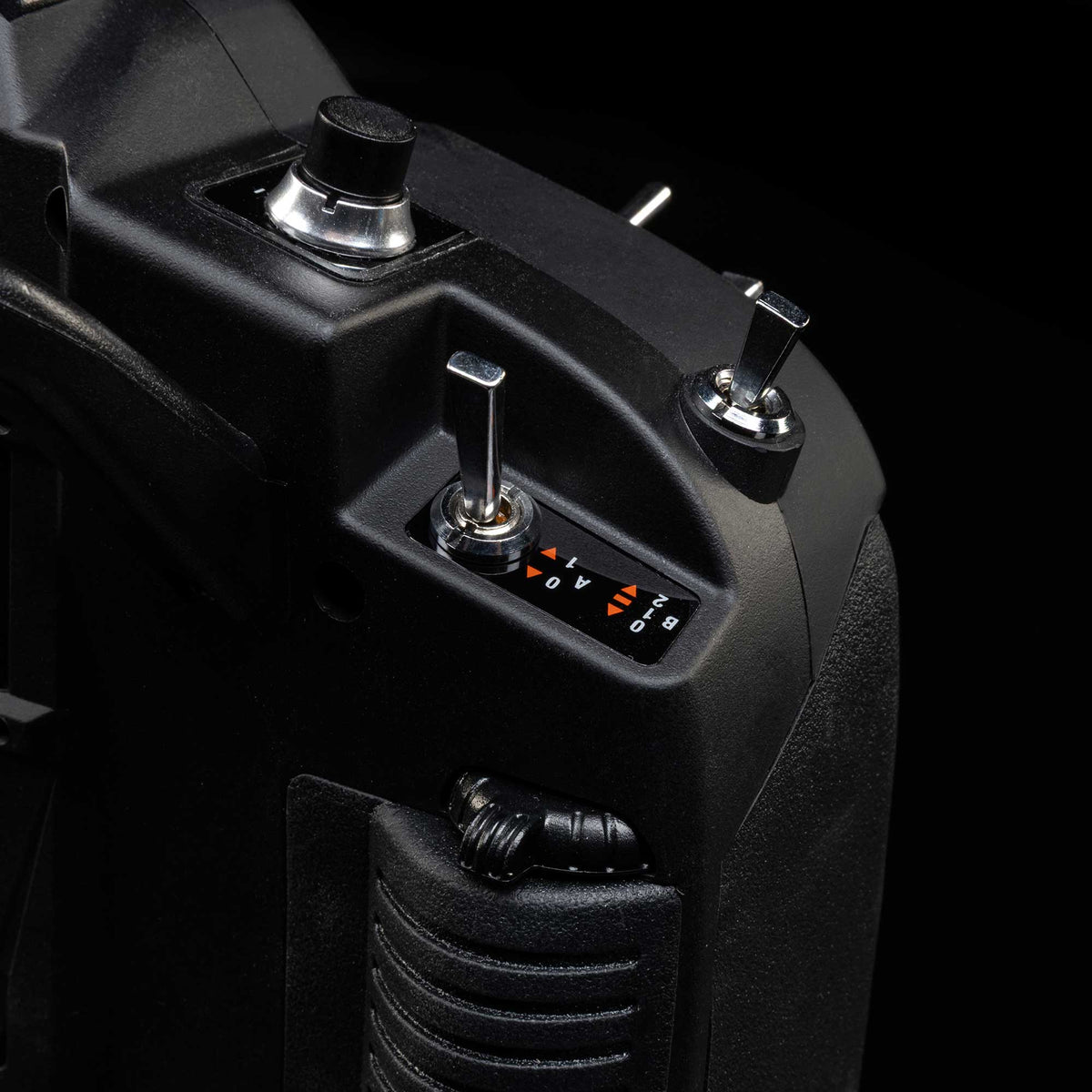

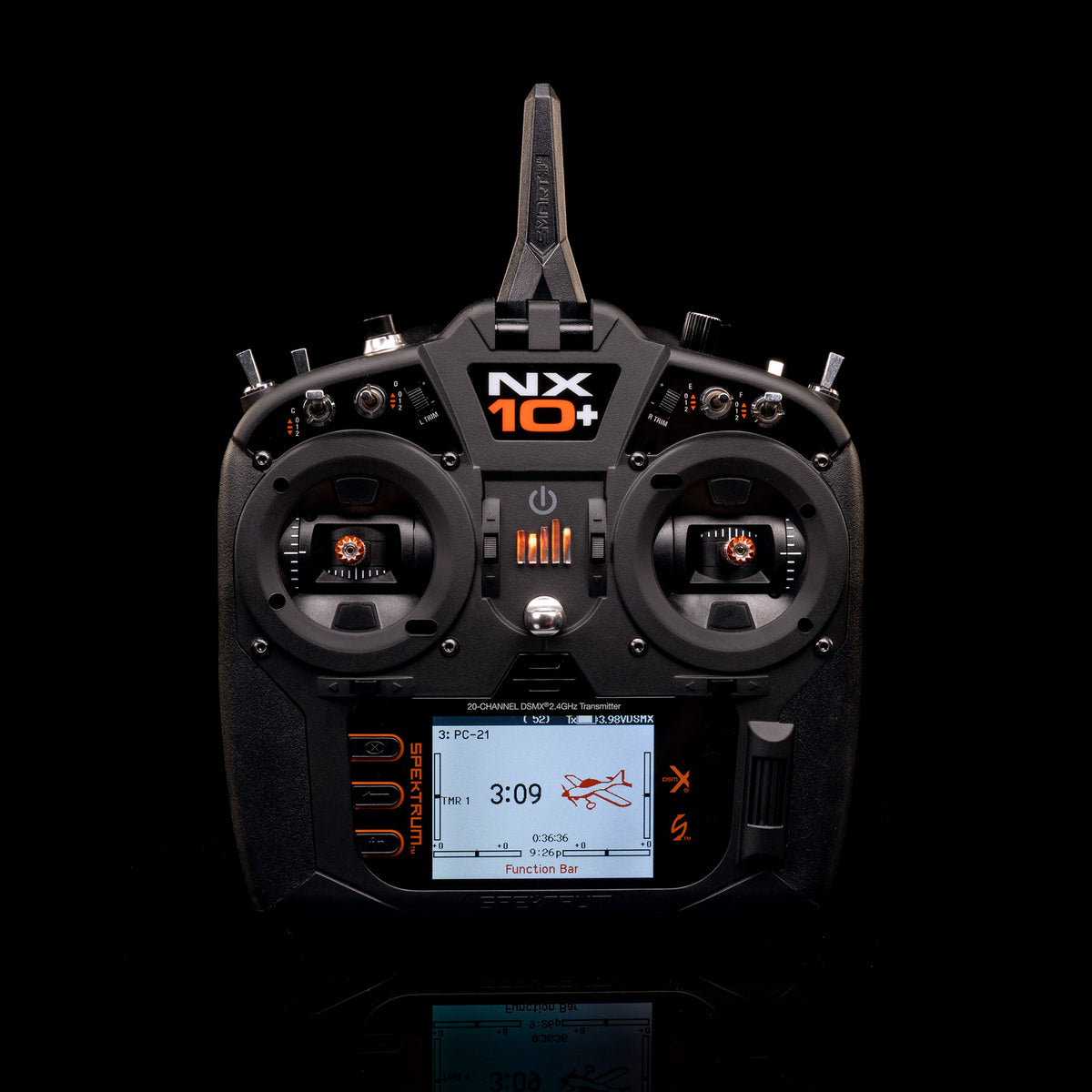

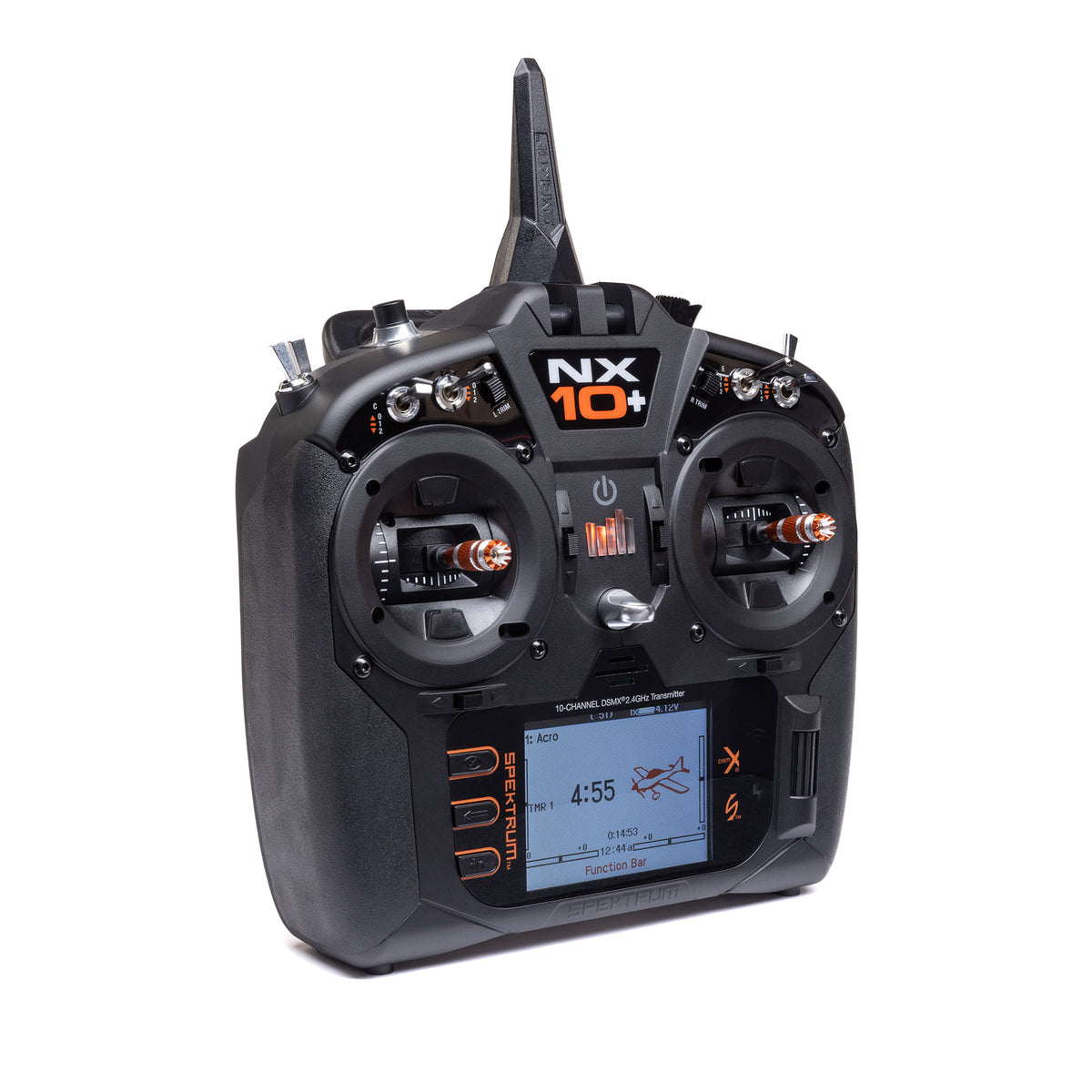

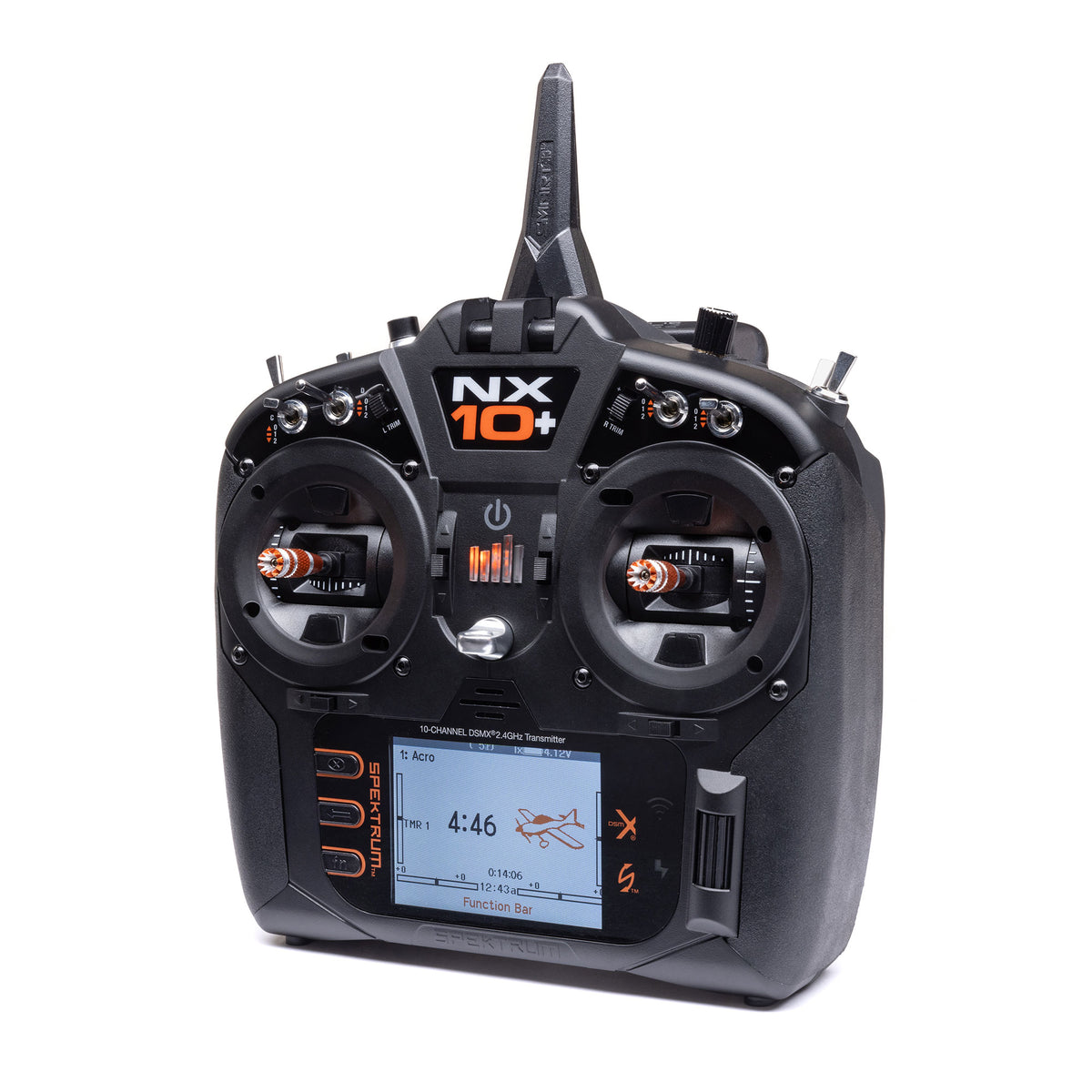

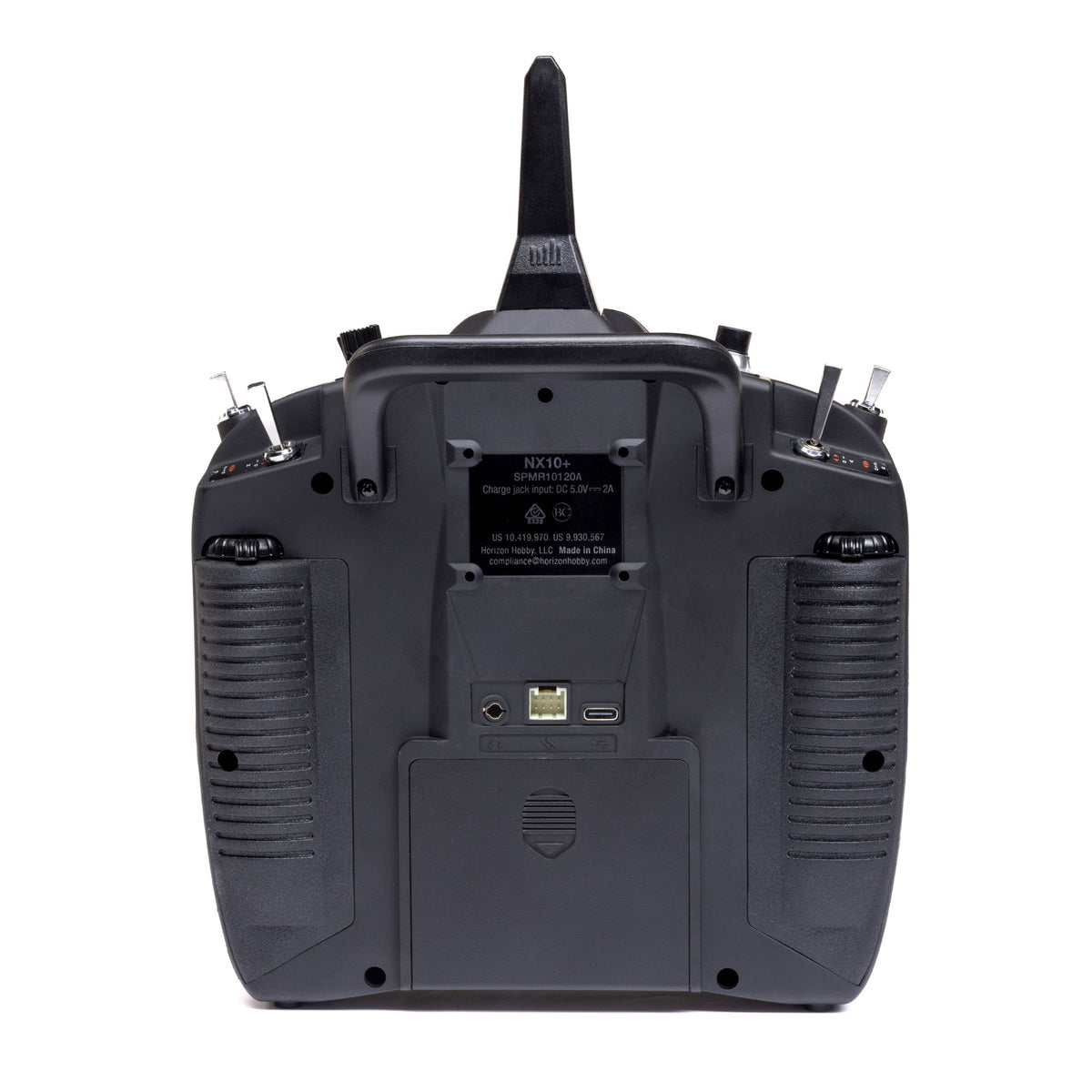

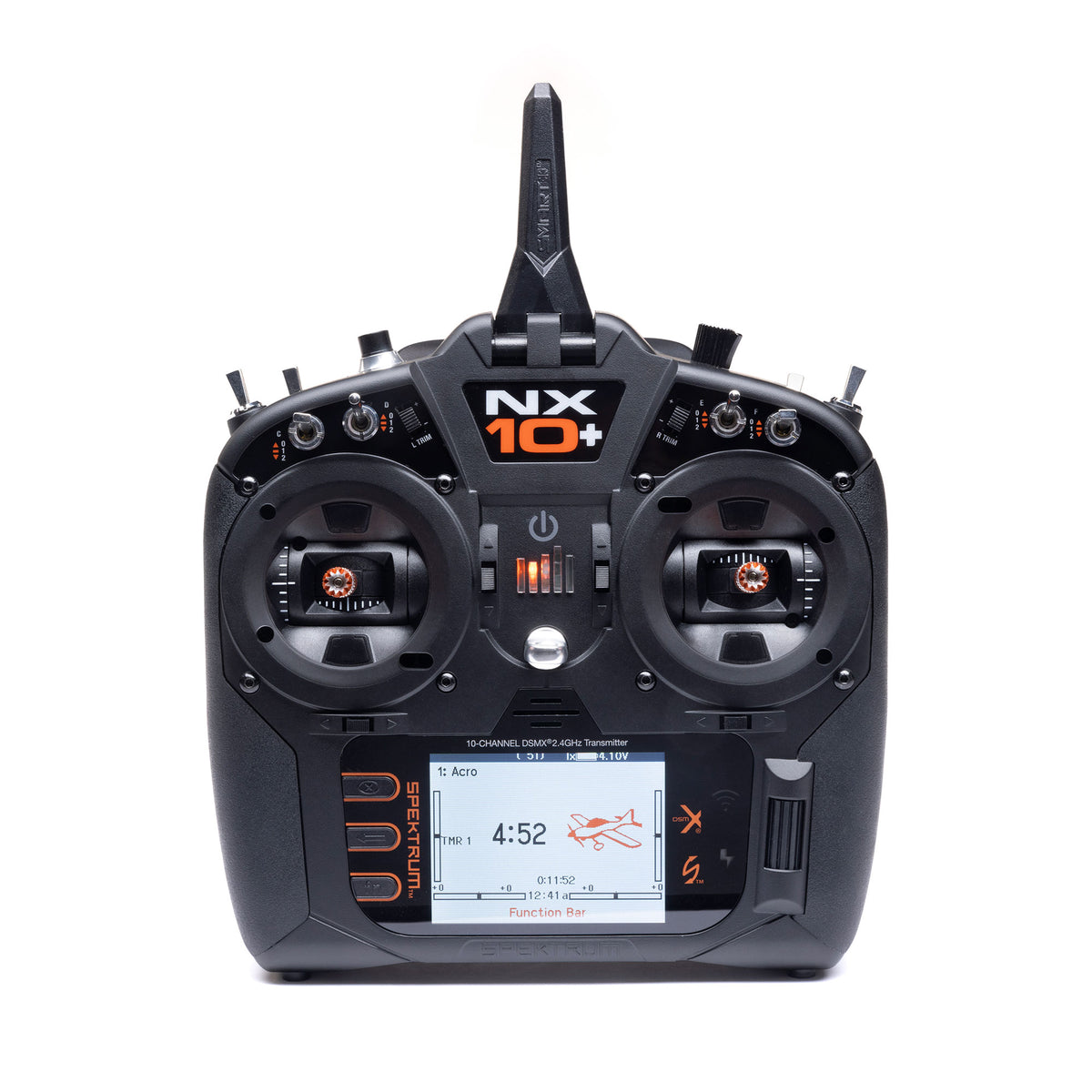

NX10+ 20-Channel DSMX Transmitter Only

Out of the box, the NX10+ is compatible with Smart Technology. It comes ready to support your Spektrum™ Smart batteries and Smart Avian™ ESCs so you can receive essential telemetry data at your fingertips in real time. The NX10+ radio's Wi-Fi connectivity adds even more convenience. In addition to completing product registration straight from the transmitter, you can download firmware updates instantly. Additionally, the transmitter features AS3X+ forward programming and the latest innovative Smart Model File loading from the receiver. It's a modern user experience. More proven Spektrum™ radio expertise can be found in the NX10+ transmitter's ergonomic design. The contours, balance, and control positions combine to increase the accuracy of your inputs and provide unparalleled comfort. Hall-effect sensor gimbals offer long-lasting precision with an ultra-smooth feel that's adjustable from the front of the transmitter. An easy-to-use roller wheel interface simplifies programming, with a large 3.2" color display to make menus easy to read. Even a rechargeable 1S 6600mAh Li-Ion transmitter battery and magnetic USB Cable and USB-C Adapter for convenient USB charging are included. From its brilliantly designed display to the Wi-Fi connectivity plus built-in Smart Technology support, the NX10+ gives experienced pilots access to a wide array of Spektrum™ exclusive advantages and innovations. Fly your aircraft with next-level control — choose the 20-channel NX10+ transmitter from Spektrum™.

Ready for Smart Transmitter File (STF) Technology, delivering simplified transmitter setup with select E-flite BNF aircraft.

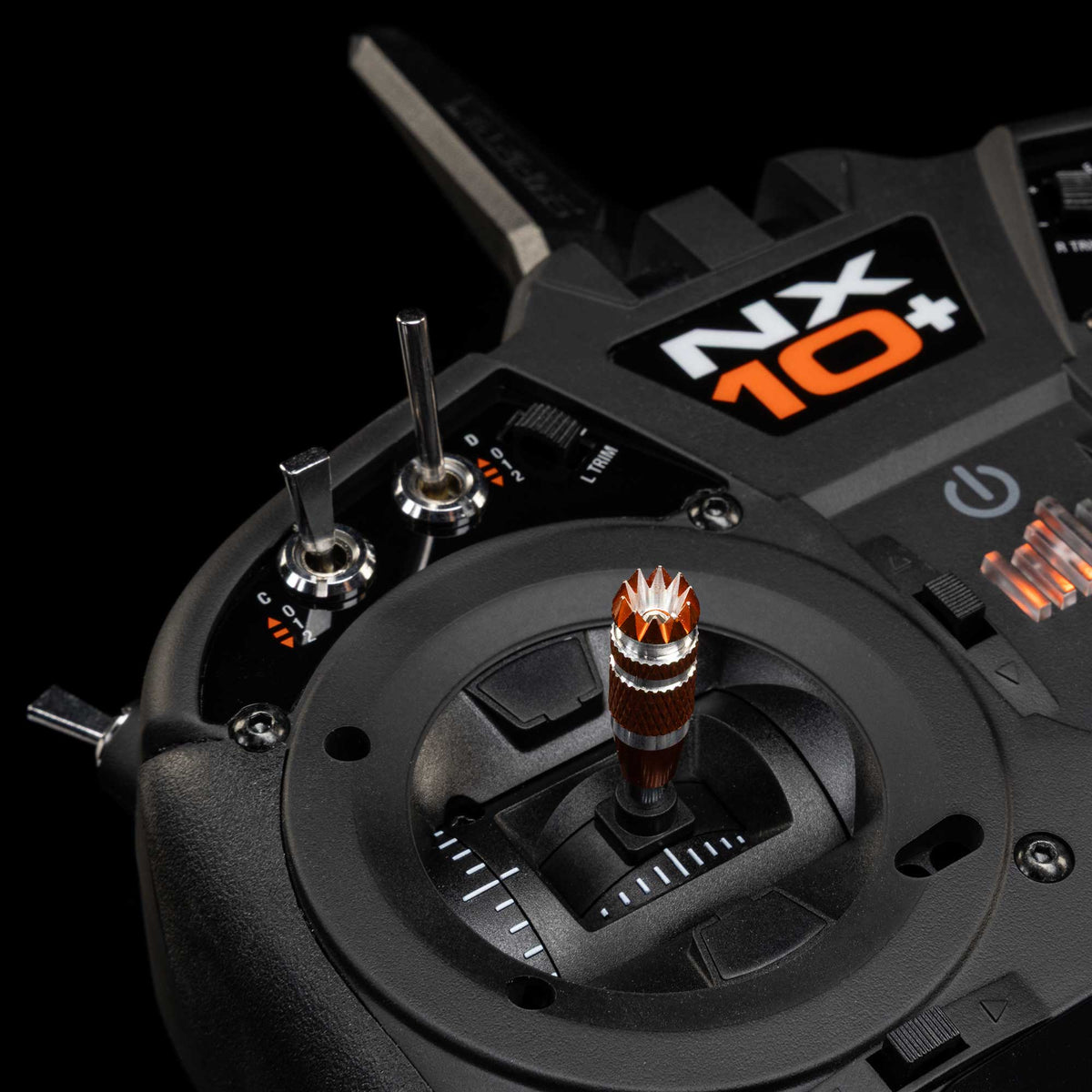

Hall-effect gimbals

Custom sound support and voice alerts

Logical Switches, High Precision Mixing, Combo Switch, Origin Mixing, and Multi-Engine Support

Easy roller-wheel scrolling interface with Clear, Back and Function buttons

USB port for battery charging, USB data transfer and simulator control

Superb ergonomics optimized for comfort and precise, fatigue-free control

Integrated serial port for supporting 3rd party modules

3.7V 6600mAh 1S Lithium-Ion transmitter battery and a USB cable for convenient USB charging

Application: Airplanes, Helicopters, Sailplanes, Multirotors

Audio: Alarms and Tones, Preconfigured Callouts

Band: 2.4GHz

Bind Method: Bind Button

Channels: 20

Completion Level: Transmitter Only

Data Port: Yes

Failsafe: Yes

Flight Log Compatible: Yes

Frame Rate: 11ms, 22ms

Gimbal Type: Hall Effect

Input Voltage: 3.7V

Model Memory: 250

Modes: User Selectable Mode 1-4

Modulation: DSMX

Operating System: Spektrum Airware

Product Height: 5.5" (140 mm)

Product Length: 12" (305 mm)

Product Weight: 16 oz. (453.59g)

Product Width: 9.3" (236 mm)

Programmable: Yes

Receiver: Sold Separately

Resolution: 2048

SD Card/Airware Capable: Yes

Technology: Smart, Voice Alerts, Smart Transmitter File

Telemetry: Yes

Transmitter (Tx) Battery Type: 3.7V 6600 mAh LiIon

WiFi: Yes

(1) Spektrum™ NX10+ 20-Channel DSMX® Transmitter

(1) 6600mAh LiIon Transmitter Battery with a Magnetic USB Cable and USB-C Adapter for USB Charging

(1) NX10 Transmitter Neck Strap

(1) NX10+ Sticker Sheet

(1) Product Manual

(1) Compatible Spektrum™ receiver

Brand: Spektrum

MPN: SPMR10120A

Added: 2026 - September

Status: Pending

Discount Eligibility: Discount Eligible

SKU: SPMR10120A

UPC: 660132724078

Location: WH02-02-01
