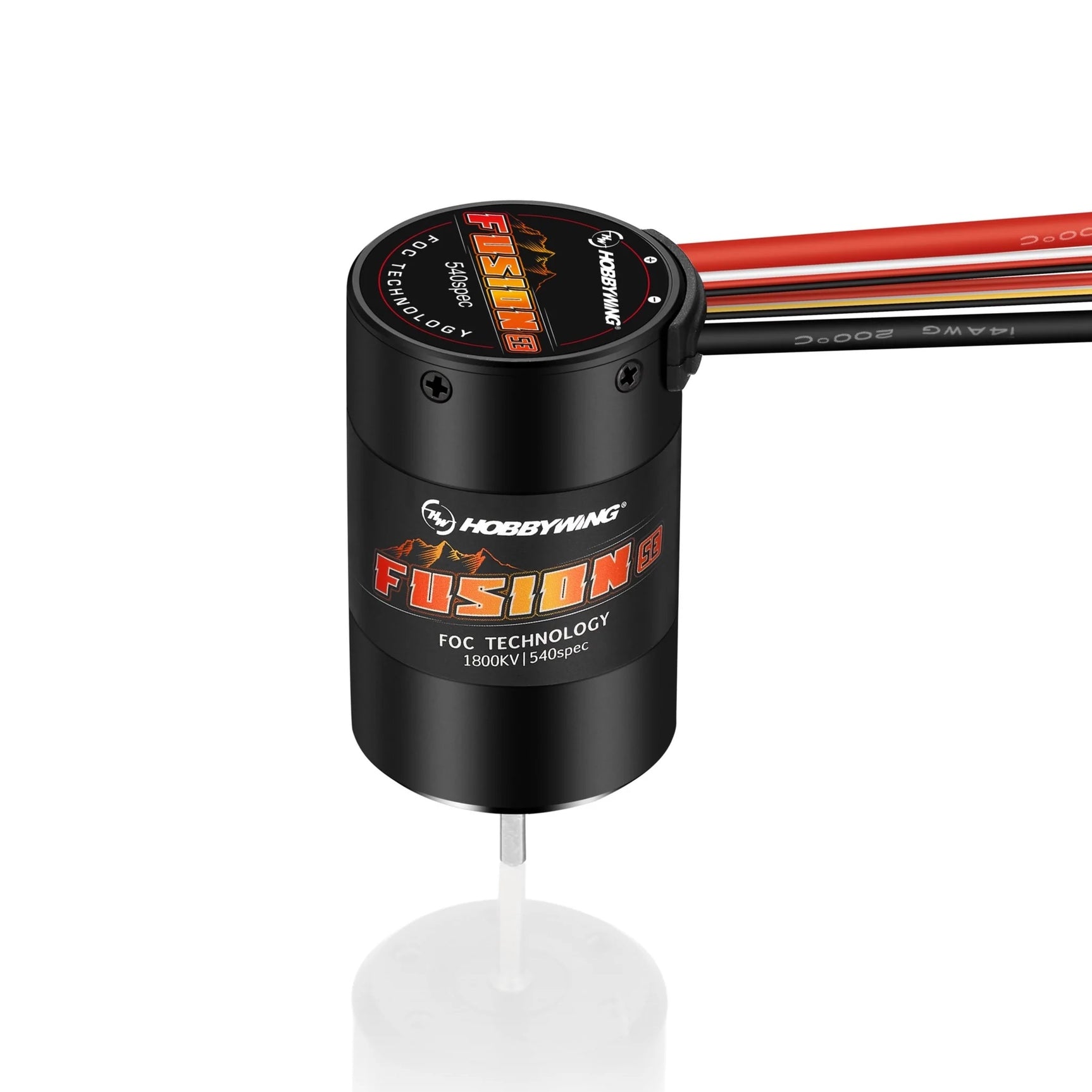

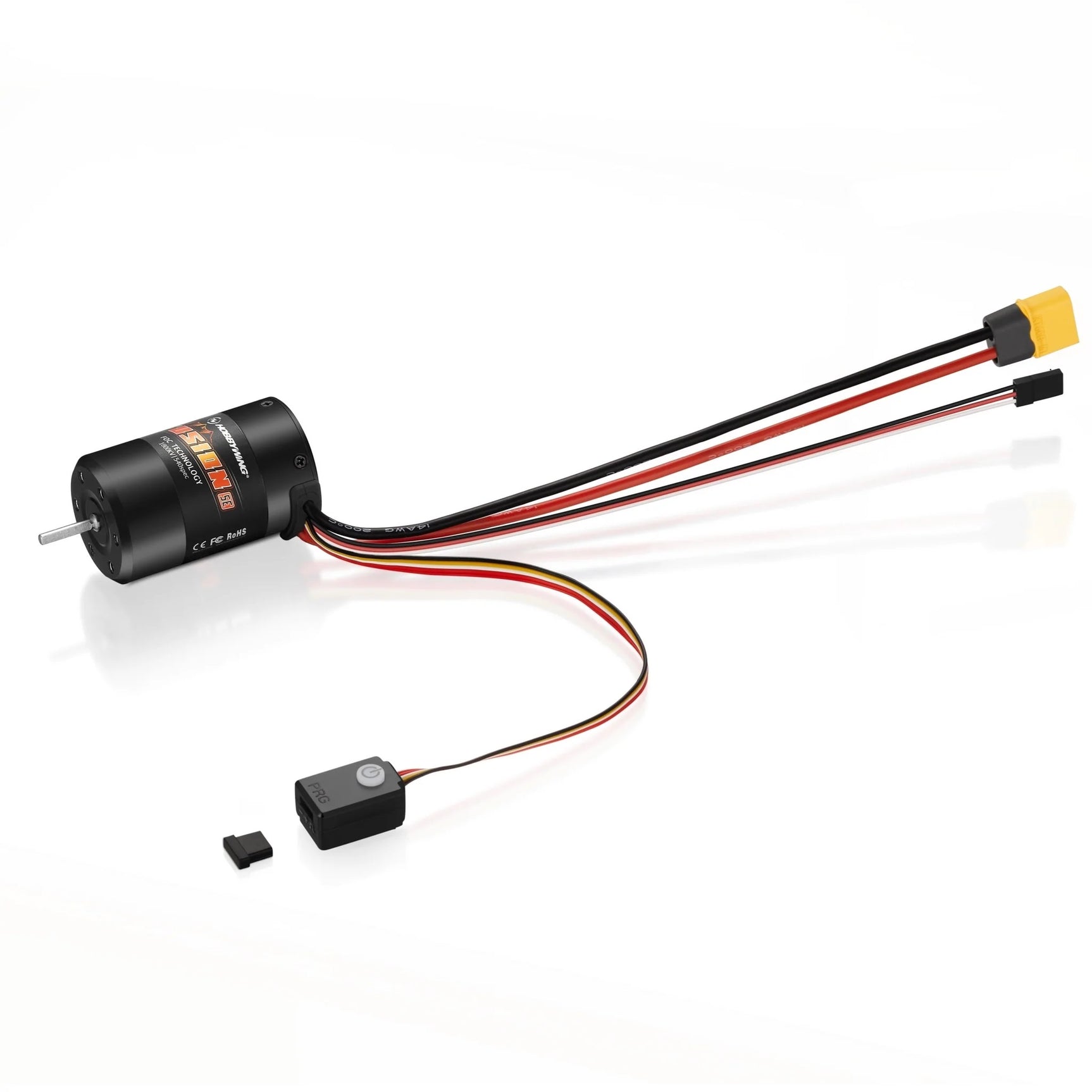

Quicrun Fusion SE 2-in-1 Motor & ESC, 1800KV

Hobbywing QuicRun Fusion SE FOC 2-in-1 540 Spec Crawler Brushless ESC and Motor System. This innovative 2-in-1 system utilizes a compact integrated ESC giving you one of the most compact and easy to setup motor/ESC systems. Featured FOC technology provides incredible low speed control and the smooth startup needed for rock crawling. This system also uses an IP67 waterproof rating giving you the confidence to tackle any trail condition. Additionally there are several programming options built into the ESC giving you the ability to tailor the driving experience to your preferences. Packed with technology specific for scale trucks and rock crawlers the QuicRun Fusion SE FOC 2-in-1 540 Spec is an excellent addition to your next build.

The integrated design of the ESC and the motor greatly reduces the overall volume and weight, and makes the layout and wiring of car frame simpler and more convenient.

The FOC driving mode, low speed torque is strong. Smooth running at extreme low speed, which is far superior to the common sensored brushless power system, even better than the brushed power.

Thanks to the sine wave driving mode, the whole system has high efficiency, small heat, and effectively extends the endurance time; and the motor runs more quietly and soft.

The protection grade of the whole system is IP67, with excellent waterproof and dustproof performance. Under various weather conditions, the whole system can easily deal with the complex road surface containing silt, ice and snow, and water.

Intelligent torque output and speed closed-loop control, fully experience the cruise control and steep slope slow descent function of 1:1 vehicle, making the control handy

Active drag brake force adjustment, providing super strong parking capacity on slope.

Multiple protection functions: battery low voltage protection, overheat protection, throttle lost protection, lock-up protection.

It supports LED program box to set ESC parameters, and has independent parameter setting interface, which is integrated on electronic switch, making setting parameters more convenient.

Size (LxWxH)/Weight: 94.5x59.4x50.9mm / 428.5g with wire

Programming Port: Independent programming port

Product Name: QuicRun Fusion SE

P/N: 1800KV-30404317

Application: 1/10th Rock Crawler, Brushless Sensored system

Waterproof: Yes

Cont./Peak Current: 40A

BEC output: 2-3S LiPo/6-9 Cell NiMH

Motor KV: 1800KV

Diameter / Length of Motor: 36mm / 58.1mm

Shaft dia./ exposed shaft length: 3.175mm / 16.5mm

Motor Poles: 4

Input Wires: Red-14AWG-200mm*1 / Black-14AWG-200mm*1 (Note: All the wire length above is the original length, not the length you see from the outside.)

Input connectors: XT60

ESC Programing via: LED Program Box

Program Port: Independent programming interface (switch position)

Firmware Upgrade: Not supported

Size / Weight: 36X58.1mm / 201g (including wires and connectors)

Brand: Hobbywing

MPN: 30404317
