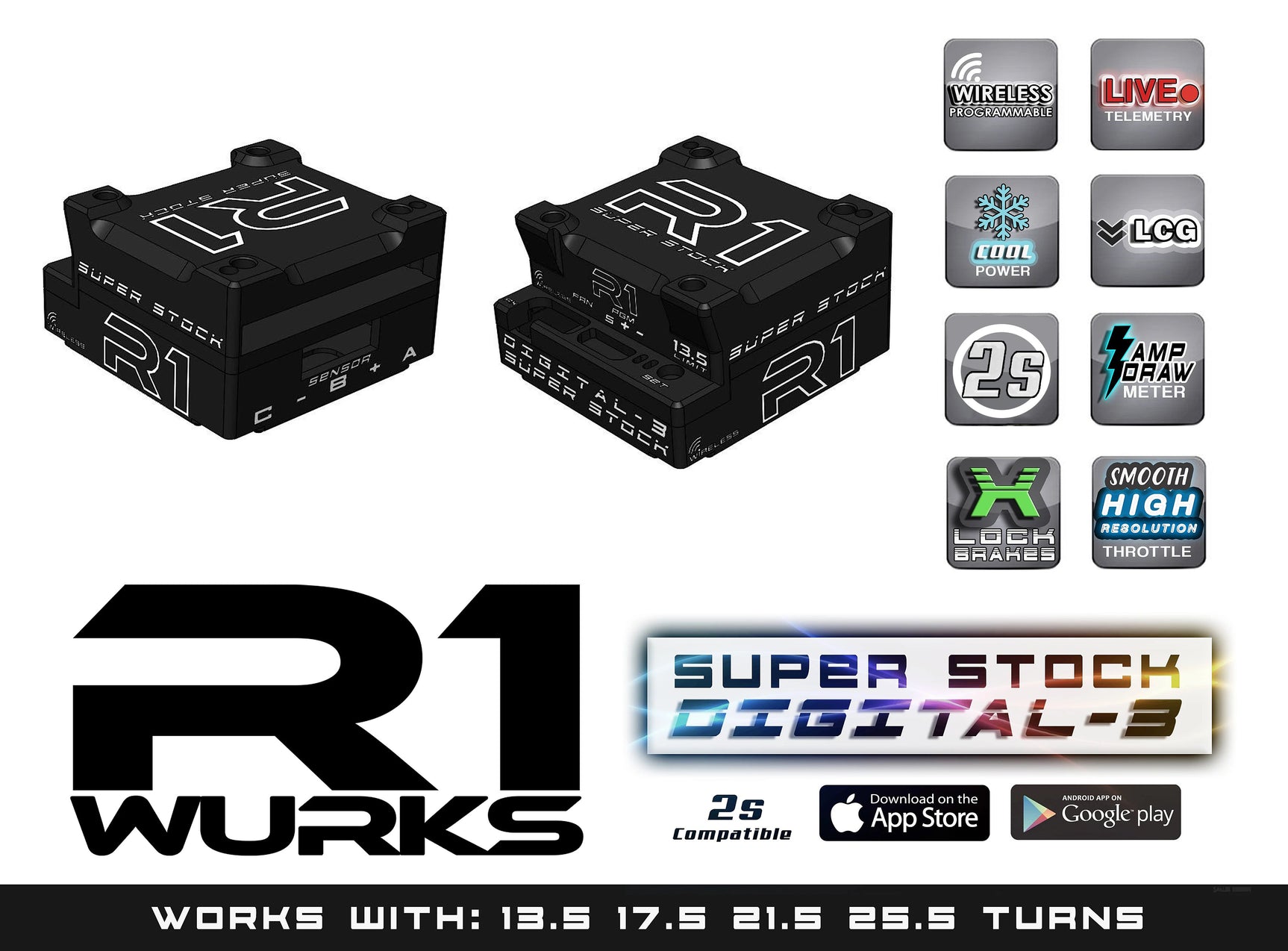

Super Stock 2S Digital 3 ESC

This is the R1 Super Stock 2S Digital 3 Electronic Speed Control (ESC). New from R1 Motor lab is the LCG Digital-3 Super Stock Wireless* programmable brushless speed controller. Developed using the most advanced MICROCHIP processor and a robust proprietary software, the LCG Digital-3 delivers the most technologically advanced features to date. Development of the LCG Digital-3 Super Stock was focused on ultra smooth power delivery needed for competition level racing as well as supreme power efficiency for our class leading line of Stock Motors. The controller offers the most advanced throttle and brake features to suit a wide range of driving styles. The unit features an A.C.L.C. (Advanced Component Level Cooling) system. This design allows individual encapsulated low resistance Mosfets (inner & outer components) to transfer heat directly to the upper heat sink. The system also comes equipped with an all new blinky mode (zero timing) for spec racing, using an advanced commutation algorithm called COOL POWER to keep the motor cool and deliver powerful, yet ultra smooth acceleration. The LCG Digital-3 Super Stock boasts a redesigned case minimizing overall weight and lowering the center of gravity (LCG). We have minimized the weight from the upper case while improving heat dissipation, achieved by improving air velocity exits from all sides of the ESC case. All adjustable settings are easily programmed using the R1 WIRELESS ADAPTOR coupled with an iOS or Android app designed with an intuitive, easy to use interface. The new R1 Digital 3 app also features a super fast Live Telemetry and a built in Data logger for after race analysis. Built in Amp draw meter for setting motor timing or for after race analysis. Using our new over the air updates feature, firmware updates are now easily downloaded through our iOS or Android apps.

LCG full aluminum case and heat sink design.

Full compatibility with competition level stock racing.

Superlative FET and low-resistance power PCB design.

Cool Power software/hardware upgrades increase speed while reducing motor temperature by modifying the commutation algorithm.

New Auto Turbo / Boost timing setting and delay time setting.

X-Lock brake response mode and PWM / brake frequency allows various race and control types.

Data port for connecting to Wireless adaptor

Wireless adaptor allows program parameter settings and firmware upgrades.

LIVE ESC and motor telemetry (speed, temperature, current, voltage, RPM and battery consumption) can be stored in real time with the data log.

Motor Type - Sensored / 2-4 Pole Sensored

Motor Limit - >13.5T

Operating voltage - 7.4V (2S)

Forward / Brake / Reverse - yes

Full aluminum case / heatsink - yes

Typ. Voltage Drop @20A per phase - 0.0048V

Rated Current per phase - 100A

BEC Output - 6V/7.4V Continuous Current of 3A Multi-Protection-System - yes

“Boost 0” Mode - yes

Multi-frequency system - yes

Power Wires - 14 AWG pre installed wires

Over the air Update ability - yes

Case Size(with out fan) - 32.9 x 34.6 x 21mm

Weight(with out cable) - 46g

(1) ESC

** Wireless adapter is necessary to make setting changes to this ESC, the program box does not work for the Digital-3 Super Stock.
