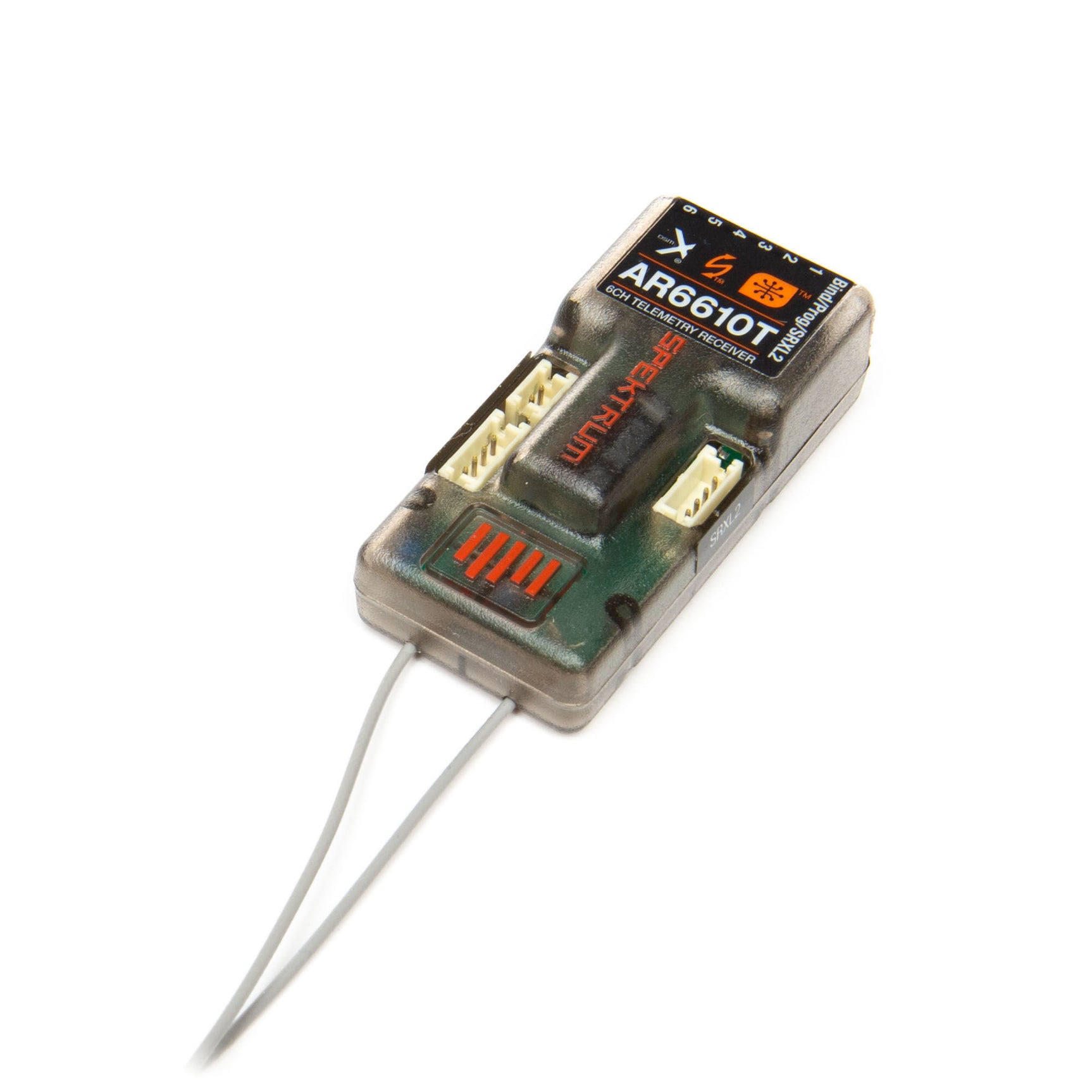

AR6610T DSMX 6-Channel Telemetry Receiver

The Spektrum AR6610T 6 Channel DSMX Aircraft Telemetry Receiver is a DSM2 and DSMX compatible receiver with a compact footprint design to fit in a wide range of models. It will deliver lightning-fast input-to-output response that is perfect for high-performance applications such as 3D airplanes and helicopters. It features full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. An SRXL2 port for an SRXL2 Remote receiver is available separately to eliminate the reflected signal fading and antenna blind spots that can affect 2.4GHz systems. The AR6610T receiver throttle port includes SMART Throttle. When equipped with SMART Throttle the normal servo connector delivers the throttle signal to the ESC, plus the ESC can send telemetry data like voltage and current back to the receiver. The AR6610T receiver is compatible with the Spektrum Avian line of ESCs. For SMART Throttle to function you must have a SMART Throttle ESC paired with a SMART Throttle telemetry receiver, and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart Technology features.

Compatible with all Spektrum DSM2 and DSMX transmitters

Compact footprint fits most parkflyer size, giant scale and carbon-fiber DLG aircraft installations

Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors

Bind button allows for easy binding and eliminates the use of bind plug

Two external antennas will ensure secure RF coverage from all angles of the aircraft

Additional RF path redundancy with an additional SRXL2 Remote Receiver (SPM9747, sold separately)

Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires.

Application Air

Failsafe Yes

Product Weight 0.42oz (12g)

Water-Resistant No

Antenna Length 6.10" (155mm) and 7.32" (186mm)

Product Width 0.94" (23.3mm)

Remote Receiver Ports 1

Technology Standard

Bind Method Bind Button

Channels 6

Data Port No

Flight Log Compatible No

Integrated Variometer Yes

Modulation DSMX

Telemetry Yes

Range Full

Telemetry Range Full

Band 2.4GHz

Input Voltage 3.5 - 9V

Product Application Air, Sailplanes, Helicopters

Product Height 0.595" (15.02mm)

Resolution 2048

Serial Out SRXL2

Forward Programming Yes

Product Length 1.96" (49.8mm)

Rev Limiter No

Programmable Yes

(1) AR6610T 6-channel Telemetry Receiver

(1) Product Manual

Telemetry Capable DSMX Transmitter

Servo extension(s) may be required

Brand: Spektrum

MPN: SPMAR6610T
