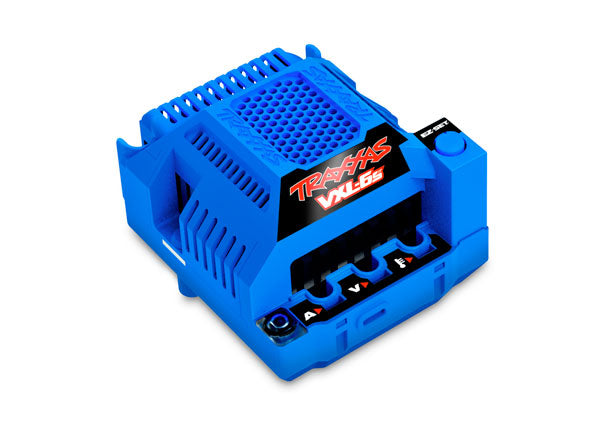

Velineon VXL 6S ESC

• Integrated telemetry for speed, RPM, voltage, and ESC temperature
• Two-stage thermal shutdown protection with integrated cooling fan protects the VXL-6s from overheating
• Bright multi-color LED status lights provide clear feedback
• Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the batteries are nearing their minimum voltage threshold
• Wide range of battery options from NiMH packs up to 6s LiPo power
• The patented Training Mode™ is an exclusive Traxxas feature that reduces the overall power output of the VXL-6s by 50%, making it easier for inexperienced drivers to control their model. When you’re ready, simply change profiles to unleash full-throttle action
• The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls—eliminating the need to learn a new set of procedures
• The VXL-6s is programmable with three drive profiles:
• Sport Mode – Fwd / Brake / Rev
• Race Mode – Fwd / Brake
• Training Mode** – 50% Fwd / Brake / 50% Rev
• Patented Traxxas High-Current Connectors eliminates a common bottleneck and maintain pure, unrestricted power flow from the batteries to the brushless power system
• Locked Rotor Protection™ prevents system damage by cutting power if the vehicle is stuck or the motor is bound
• Battery Over-Voltage Protection™ causes the ESC to go into failsafe mode if the maximum input voltage is exceeded
• Water resistant case design uses rubber seals and O-rings to protect against damage caused by water and moisture
• Gold plated 6.5 mm bullet connectors on ultra-efficient Maxx® Cable flow full power to the motor without performance strangling resistance

• Input Voltage: 2x 2s/3s LiPo (Max 25.2 volts)
• 2x 7-cell/8-cell NiMH*
• Case size: 2.23 in (58 mm) x 2.83in (72 mm) x 1.81in (46 mm)
• Weight: 206.5 g (7.28 oz)
• Motor connectors: Traxxas 6.5 mm bullet connectors
• On resistance forward: 0.00075 ohms
• On resistance reverse: 0.00075 ohms
• BEC Voltage: 6.0 V
• BEC continuous current: 10 A
• BEC peak current: 20 A
• Power wire: 10-gauge Maxx® Cable
• Input harness wire: 26 gauge / 295 mm
• Low voltage detection: 2-stage indicators, switchable (on or off)
• Thermal protection: 2-stage thermal shutdown
• Profile selection: Sport Mode:
• 100% FWD, 100% BRAKES, 100% REV
• Race Mode:
• 100% FWD, 100% BRAKES, NO REV
• Training Mode:**
• 50% FWD, 100% BRAKES, 50% REV
• Single-button setup: Traxxas EZ-Set®
• Battery input connector : Traxxas High-Current Connector
• Motor types : Brushless
• Ports: RX input, auxiliary fan, Traxxas accessory port
• *Low Voltage Detection must be disabled with NiMH batteries. NiMH support depends on vehicle. **Patented
