Velineon VXL-3s Waterproof Brushless Power System

This is the Traxxas Velineon Extreme Brushless Waterproof Power System for electric powered R/C vehicles.

The ultimate upgrade! The key to the Velineon's extreme power output is total system optimization. All of the components are carefully engineered to work seamlessly together. From the Traxxas High Current battery connector, to the powerful Velineon 3500 brushless motor, all parts of the system are optimized to eliminate restriction and allow maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control.

Each component engineered to work wih each other to eliminate restrictions and allow maximum power flow.

Velineon VXL-3s ESC; Auto-detects and compatible with brushed, brushless and sensored brushless motors Compatible with NiCd, NiMH (4-10 cells) and 2-3 cell LiPo battery packs-two stage low voltage detection for LiPos Three driver profiles-Sport, Race and Training Modes Gold-plated motor connectors Built-in output for optional auxiliary cooling fan.

Velineon 3500 Brushless Motor; 10-turn 3500kV Optimized for extreme power and efficiency in 1/10 scale vehicles Ultra high temp neodymium magnets, high-speed ball bearings Precision balanced rotor.

Traxxas High-Current Connector Reverse polarity protection makes backward connections impossible Compatible with high-current 12-gauge wire Gold-plated wide surface terminals Textured surface for easy gripping.

VXL-3s:

Input voltage: 4.8-11.1V (4-10 cells NiMH or 2S-3S LiPo)

Supported motors: Brushed/Brushless/Sensorless brushless

Motor Limit: None

Continuous current: 200A

Peak current forward & reverse: 320A

Braking Current: 320A

BEC voltage 6.0V DC

BEC current: 2.5A w/6-cell NiMH

Transistor type: MOSFET

On-resistance: 0.00075 ohms Max (0.006/8 FETs)

PWM frequency: 12,000Hz

Battery connectors: Traxxas High-Current Connector

Motor connectors: TRX 3.5mm bullet connectors

Motor/battery wiring: 12-gauge Maxx Cable

Input Harness Wire: 26 gauge, 3.9" (100mm)in length

Low voltage detection: 2-Stage indicators, switchable (on or off)

Thermal protection: 2-stage thermal shutdown

Case size (l/w/h): 2.19" x 1.54" x 1.3" (55 x 39 x 33mm)

Weight: 3.17oz (90g)

Velineon 3500 Motor:

Type: Sensorless brushless

RPM/volt: 3500 (10-turn)

Magnet type: Ultra High-Temperature, sintered neodymium

Connection type: TRX 3.5mm bullet connectors

Wire Size: 12-gauge Maxx Cable w/solder tabs

Current Ratings: 65A constant; 100A peak/burst

Max RPM: 50,000

Diameter: 1.42" (36mm) (540 size)

Length: 2.165"(55mm)

Weight: 8.75oz (248g)

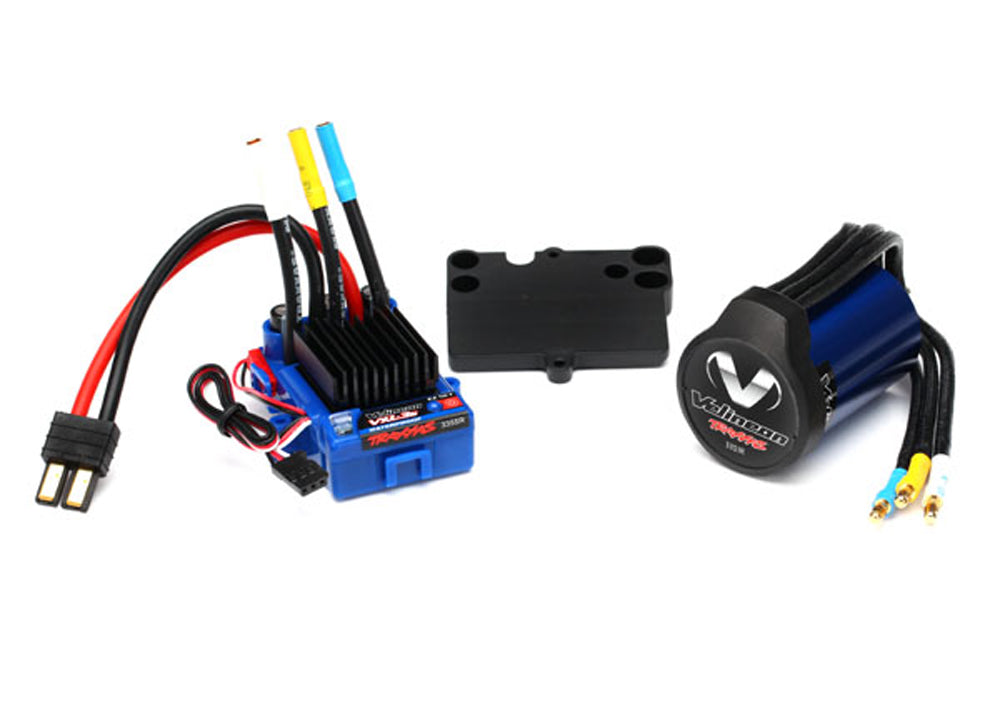

(1) Velineon VXL-3s ESC

(1) Velineon 3500 Brushless Motor and high-current connector

Installing in vehicle

NiCd, NiMH (4-8 cells) or 2-3 cell LiPo battery
