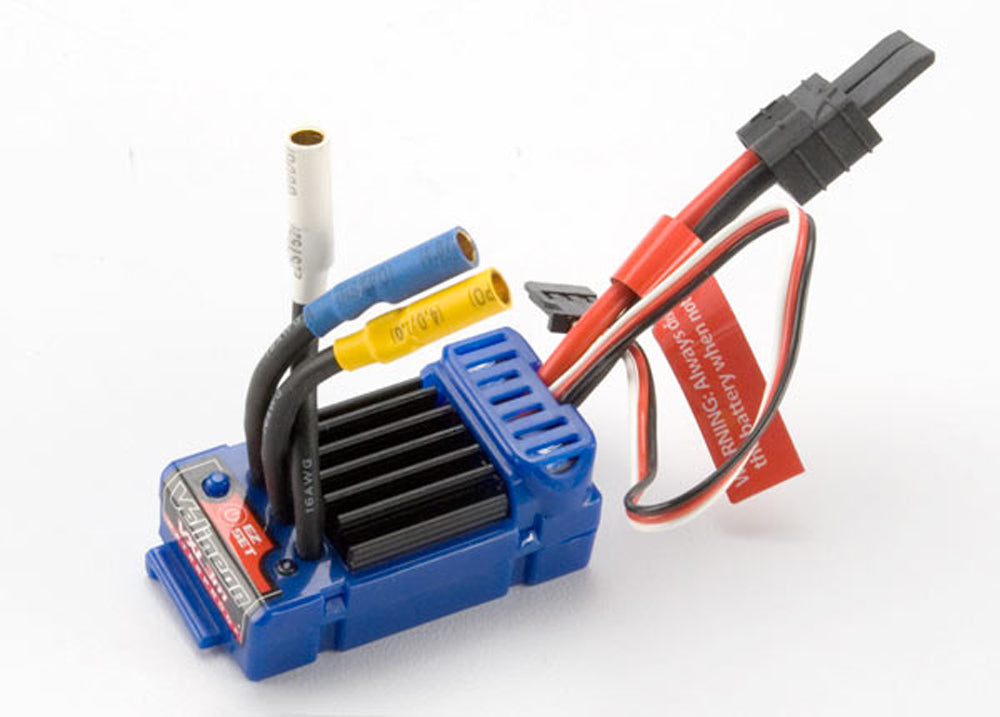

VXL-3m Waterproof 3S 11.1V Brusheless ESC

This is the The Velineon® VXL-3m forward/reverse electronic speed control simplifies brushless technology with easy, built-in profiles and intuitive programming. The VXL-3m™ uses advanced circuit design that allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. It sets up, operates, and programs just like the Traxxas XL-5™ family of ESCs so there's no tricky new procedures to learn. Traxxas' exclusive patented Training Mode™ is also included to limit full throttle to 50% for young or inexperienced drivers. For the most advanced users, the VXL-3m is equipped with two-stage low voltage detection to allow LiPo battery use, including powerful 11.1-volt 3S packs! The VXL-3m is manufactured by Traxxas to ensure the highest level of quality and support and is backed by the Traxxas Lifetime Electronics Warranty.

Advanced circuit design allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. There's no need for additional sensor wiring and hardware complexity.

Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.

Water resistant case design uses rubber seals and o-rings to protect against damage caused by water and moisture.

Multi-color LED provides clear feedback.

The EZ-Set® push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.

11.1V 3S LiPo battery capability.

Wide range of battery options, including 6-12 cell NiMH or NiCad packs.

Input Voltage: 6 to 12 cell NiMH; 2S to 3S LiPo

Motors: Sensorless Brushless

Motor Limit: None

Continuous Current: 52A

Peak Current: 326A

BEC Voltage: 6.0V DC

Transistor Type: MOSFET

On-Resistance: 0.0005 ohms

PWM Frequency: 12,000Hz

Motor Connectors: Traxxas 3.5mm bullet connectors

Motor/Battery Wiring: 16-Gauge

Thermal Protection: Two-Stage Thermal Shutdown

Weight: 38g (1.34oz)

(1) VXL3m Electronic Speed Control

Installation on the vehicle

This product may only be shipped within the United States. International orders will be cancelled and refunded.

Brand: Traxxas

MPN: 3375

Added: 2017

Status: Stock

Discount Eligibility: Discount Ineligible

SKU: TRA3375

UPC: 020334337504

Location: W02-08-09
