TRX-4 Clipless 1/10 4X4 Crawler Builder's Kit

TRX-4® set the standard for off-road versatility with its radical design and rugged durability. The TRX-4 chassis kit combines the same innovative features as the RTR vehicle with the fun and excitement of building your own kit. Build your own portal axles, high/low range transmission, and remote-locking differentials. All the parts are organized neatly in labeled bags along with waterproof electronics and pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

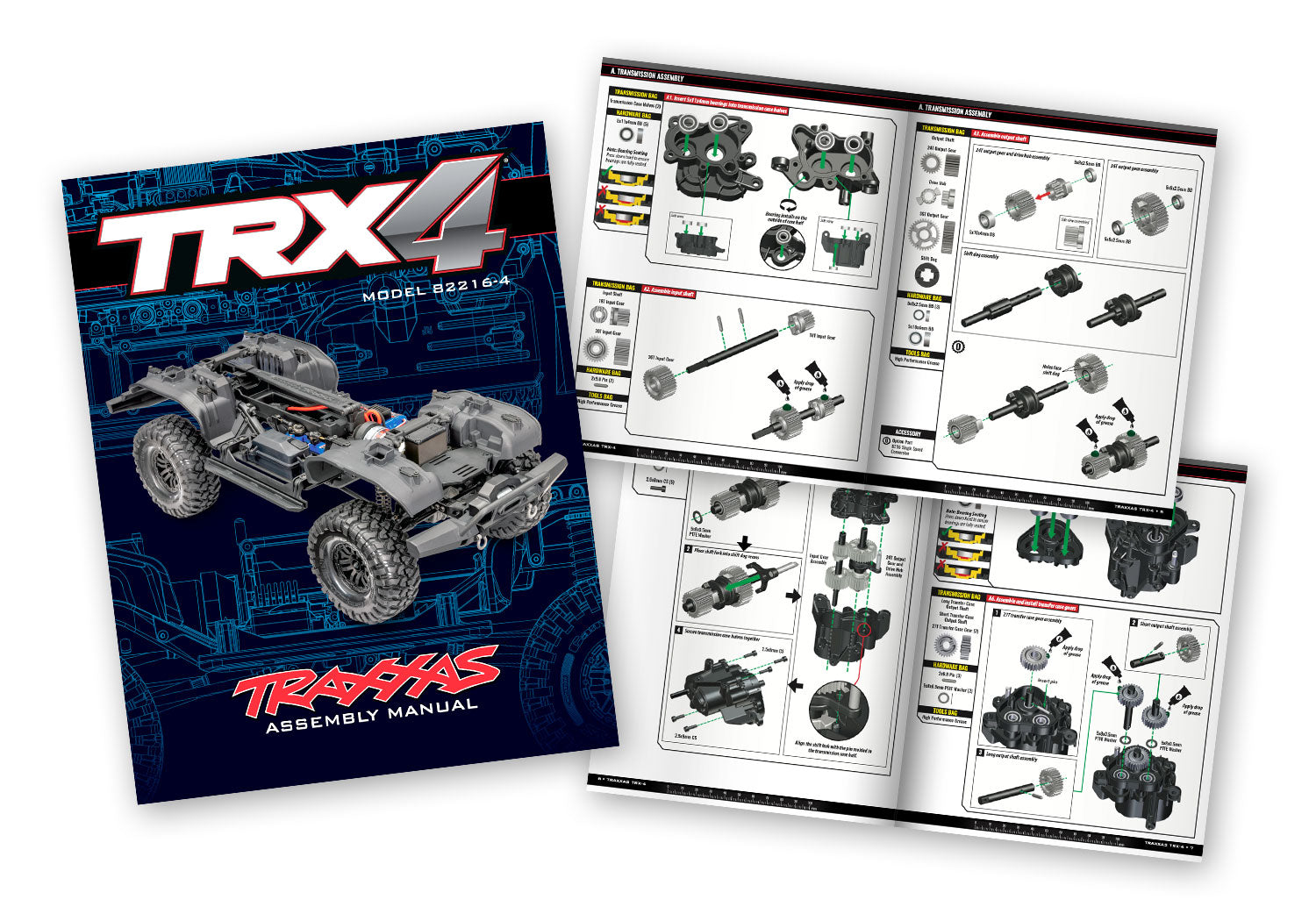

The TRX-4 Chassis Kit includes a full-color instruction book that’s easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears.

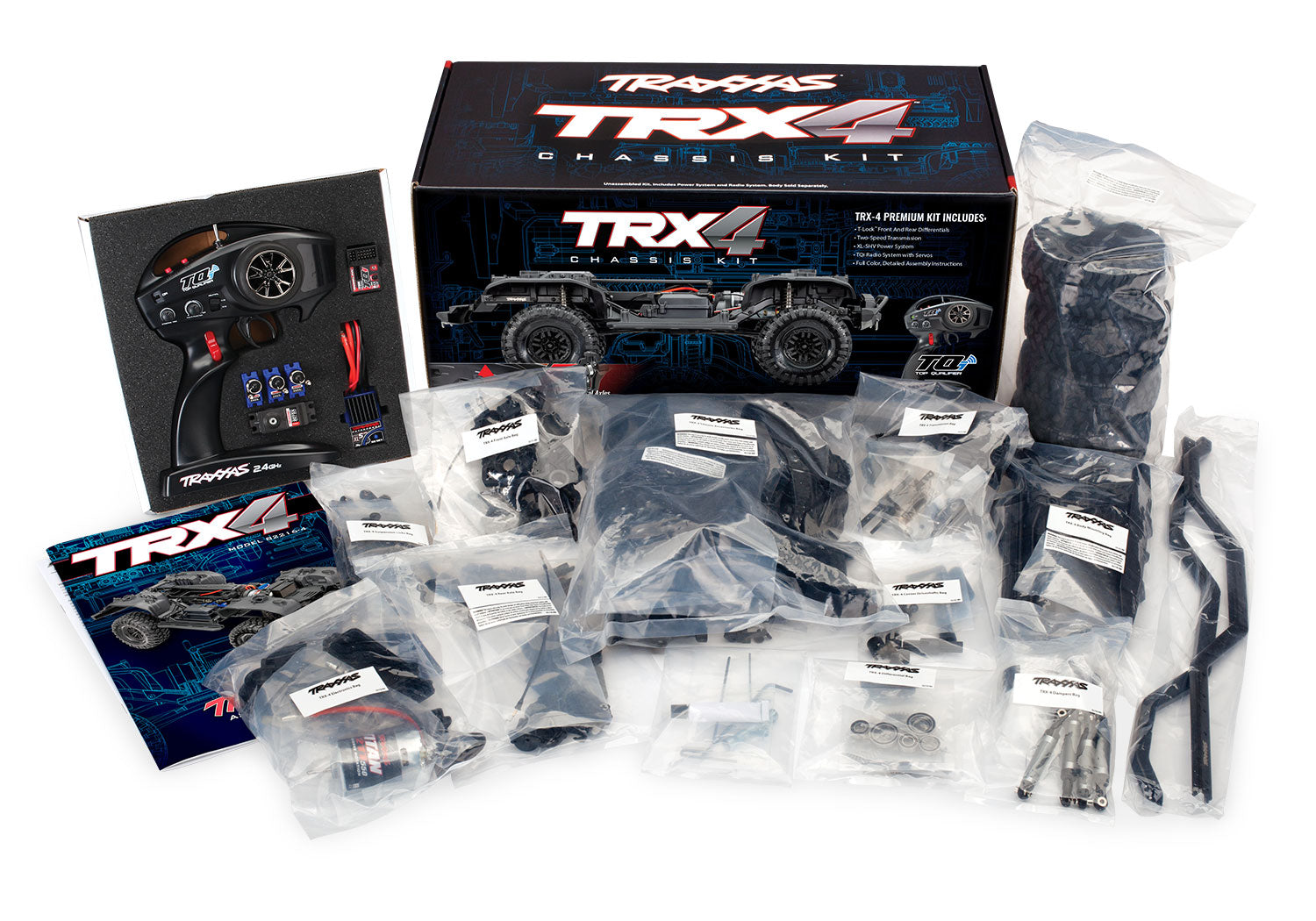

The TRX-4 Chassis Kit arrives ready to assemble with a full-color instruction guide, TQi™ 4-channel 2.4 GHz radio system, and complete waterproof electronics including servos, XL-5™ HV ESC, and Titan® 21T motor. Key parts like shocks and suspension links come pre-assembled to make building easy and fun.

Clipless body mounting makes it easy to customize your TRX-4 kit with any accessory Traxxas 312 mm wheelbase body (sold separately). The hidden latching system provides clean, flowing lines for maximum scale realism. On the trail the clipless body holds tight when you need it, but releases in just seconds to access the chassis.

Easy to follow full-color assembly manual

Trail-tuned XL-5™ HV Waterproof Electronic Speed Control

Powerful Titan® 21T reverse rotation motor

Portal Axles

TQi™ 2.4 GHz Radio System

Rigid Steel Frame

Innovative Battery Compartment

Full-time shaft driven 4-wheel drive

Two speed high/low range with remote shifting

Chassis mounted 2075X metal gear digital servo

Aluminum GTS Shocks

1.9″ Canyon Trail tires with trail-tuned foam inserts

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Model Name: TRX-4® Unassembled Kit

Model Type: Crawler

Skill Level: 2

Scale: 1/10

Weight: 102.72 ounces (2.91 kg)

Length: 20.57 inches (523 mm)

Width: 9.78 inches (249 mm)

Front Track: 9.78 inches (249 mm)

Rear Track: 9.78 inches (249 mm)

Height: 10.47 inches (266 mm)

Wheelbase: 12.28 inches (312 mm)

Ground Clearance: 3.14 inches (80 mm)

Approach Angle: 63.82°

Departure Angle: 43.22°

Breakover Angle: 59°

Shock Length: 3.54 inches (90 mm)

Wheel Size: 1.9 x 1.02 inches (49 x 26 mm)

Tire Size: 4.64 x 1.89 inches (118 x 48 mm)

Transmission: 2-speed High/Low, remote shifting

Differential Type: 4 gear, remote locking

Gear Pitch: 32

Chassis Structure/Material: Steel ladder frame with Nylon composite cross members

Drive System: Shaft-driven 4WD

Steering: Chassis mounted 2075X metal gear servo

Radio System: TQi™ 2.4 GHz 4-channel transmitter with 6533 receiver

Battery Compartment Specs: 159 mm x 47 mm x 23/26 mm

T-Lock Front And Rear Differentials

Two-Speed Transmission

XL-5 HV Power System

TQi Radio System with Servos

Full Color, Detailed Assembly Instructions

LiPo or NiMH Battery

Battery Charger

(4) AA Batteries
