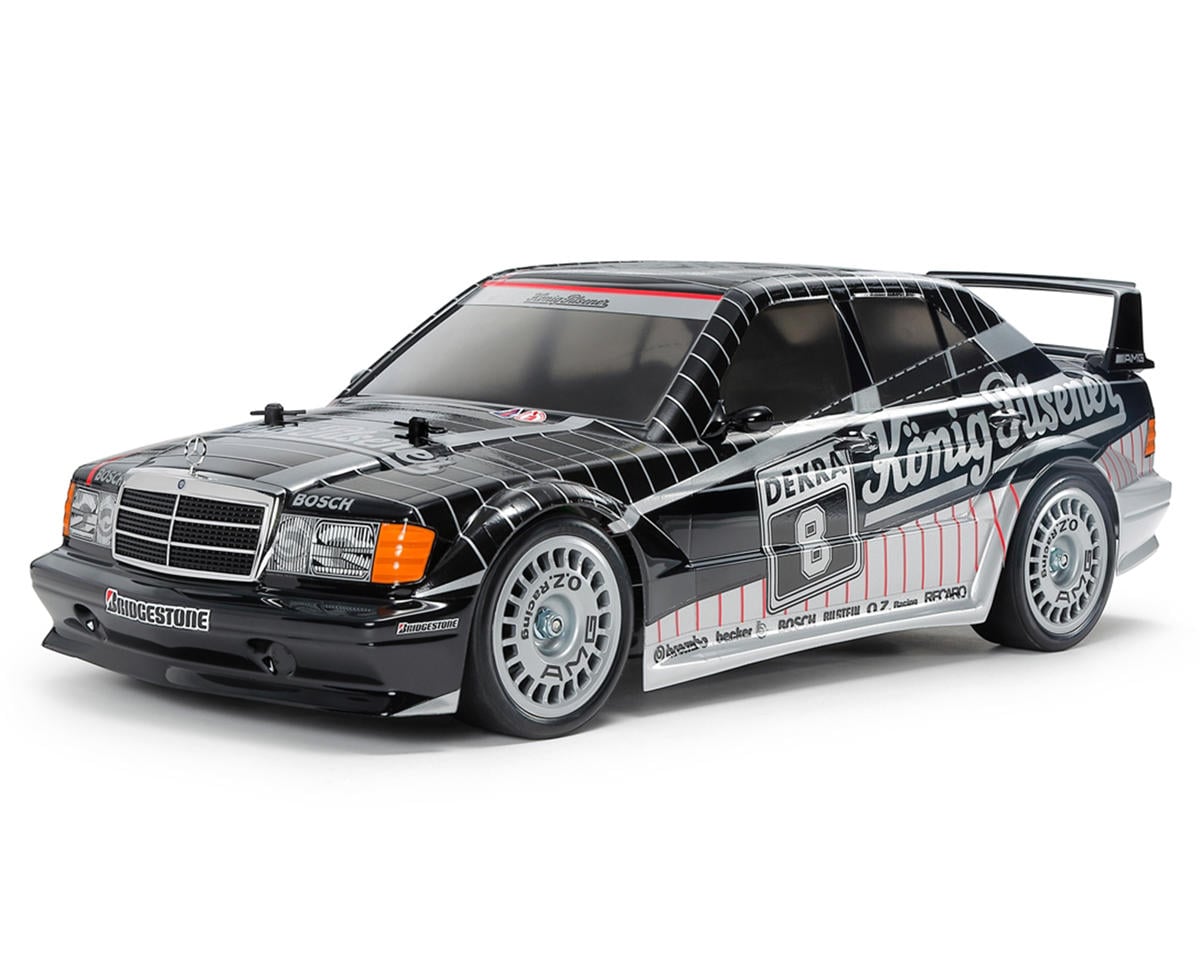

Tamiya 58752 - TT-02 91' Mercedes-Benz 190 E 2.5-16 EVO II 1/10 4WD Touring Car Kit

The 91' Mercedes-Benz 190 E 2.5-16 EVO II, a powerhouse built for GT3 racing, took the world by storm with its 2.5-liter inline 4 engine producing over 230bhp and its sleek, aerodynamic design. Modified for rear-wheel drive, it redefined endurance racing and quickly became a fan favorite, dominating tracks globally. With its stunning performance and racing pedigree, the 190 E earned its place as a true icon in the motorsport world. The Clear untrimmed 91' Mercedes-Benz 190 E 2.5-16 EVO II Touring car boasts an aggressive, wide-body design optimized for aerodynamics and downforce, The 1991 Mercedes-Benz 190 E 2.5-16 Evolution II stands as a masterpiece of motorsport engineering, crafted to meet DTM homologation standards. Its 2.5-liter 16-valve Cosworth engine, aggressive aerodynamic body kit, and advanced 5-link self-leveling suspension deliver exceptional handling and stability. With only 502 units ever built, the Evo II perfectly blends race-ready performance with timeless Mercedes-Benz precision, making it a true collector’s dream and a symbol of 1990s touring car dominance The TT-02 chassis, with its adaptable and balanced shaft-driven 4WD system, ensures excellent stability through a longitudinal layout featuring the battery on the left and the motor on the right. Its design incorporates identical left and right suspension arms and uprights for straightforward assembly, along with easily maintainable gearboxes. The chassis offers versatility with two wheelbases, two ground clearance settings, two tread setups, and a selection of ten gear ratios. Not only functional, it boasts aesthetic appeal with brake disc-shaped wheel hubs, stylish front bumper supports, gun metal color 10-spoke wheels, and sleek slick tires, delivering a sporty appearance. This chassis Kit includes both a torque tuned brushed motor and Hobbywing 1060 ESC. these components combine to deliver a performance enhanced on-road racing experience. The compact ESC boasts extreme performance, complemented by a built-in capacitor module for efficient power delivery. With exceptional current endurance capability, easily configurable parameters using ESC jumpers, and automatic throttle range calibration for user-friendly setup, the Quicrun 1060 stands out. Its impressive built-in BEC output capacity, built-in capacitor, and IP-67 waterproof rating further elevate its reliability, making it a top-tier choice for enthusiasts seeking optimal performance in their RC adventures. The RS-540 Torque-Tuned motor offers higher top speeds and increased acceleration. When upgrading to a high current LiPo battery, it is recommended to also upgrade your battery connector. We recommend using an XT60 or T-Style connector for this application. Please check out the video below to learn how to solder on a T-Style connector.

Super smooth shaft-driven 4WD TT-02 chassis

Stickers and window masking for use in the body painting process

Sleek racing wheels to match the iconic body

The body is made of lightweight and rigid polycarbonate

Fully independent double wishbone suspension

Low maintenance Friction style shocks

Reliable Hobbywing THW 1060 Brushed ESC

Strong Torque tuned Mabuchi RS-540 brushed motor

High strength chassis constructed from ABS (Acrylonitrile Butadiene Styrene)

Buttery smooth grease filled differentials

Scale: 1/10

Length: 17.51in (445mm)

Width: 7.24in (184mm)

Height: 5.39in (137mm)

Wheelbase: 10.11in (257mm)

Drive: 4WD

Input Voltage: 7.2V

Assembly Level: Kit

(1) Tamiya 91' Mercedes-Benz 190 E 2.5-16 EVO II Kit

(1) Hobbywing 1060 ESC with Tamiya Connector

(1) Torque tuned 540 brushed motor

Manual

(1) 2 Channel radio system

(1) Standard or Low-profile Steering servo

(1) 7.2V NiMh battery with Tamiya Connector

Compatible Charger

Polycarbonate paint for body

Classes

• Road Rash

Vehicles

• Tamiya TT-02

Brand: Tamiya

MPN: 58752

Added: 2026 - July

Status: Stock

Discount Eligibility: Discount Eligible

SKU: TAM58752

UPC: 4950344587520

Location: Q-Top
