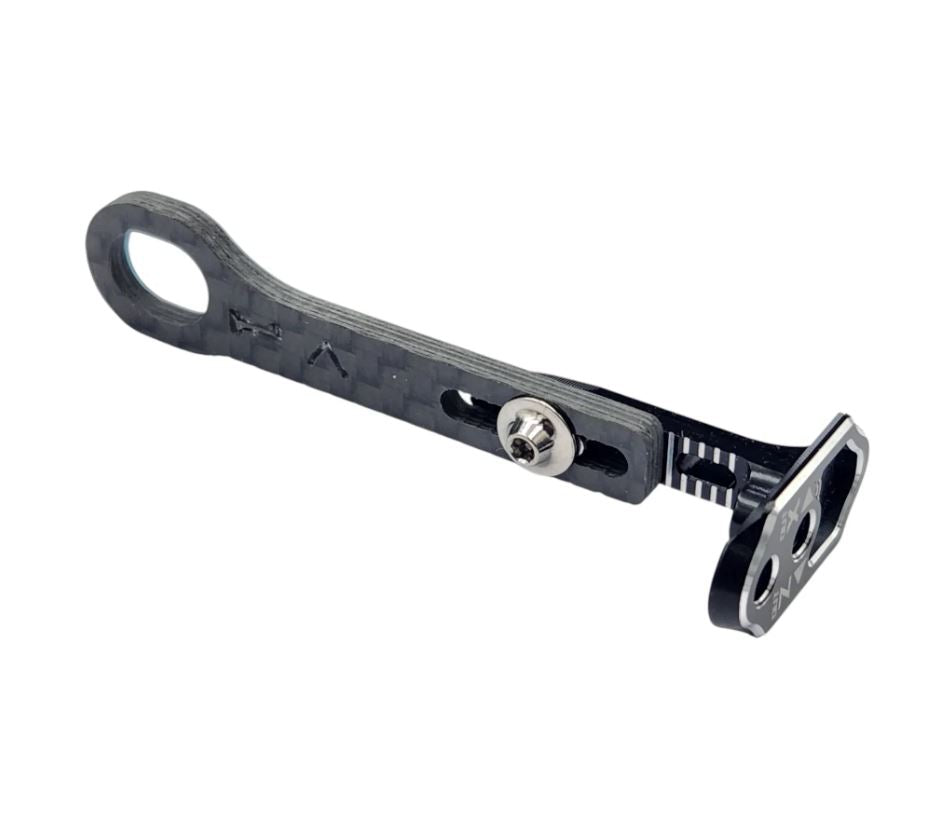

X-Lite Horizontal Rear Body Mount for 1/10 TC

The original product produced by RC MAKER has taken the world by storm, with thousands of racers opting to mount their bodies the better way! After months of feedback from drivers around the world as well as our team drivers consisting of the likes of Michal Orlowski, Marc Rheinard, Atsushi Hara, Yannic Prumper, Antoine Brunet, Akio Sobue and more, we set out to further improve on what was already a great product.

You must buy the extensions separately to the mounts!

Type 1: A800R, MTC2R, SP1, TC10/3, AE TC8

Type 2: MS1.0, ONE.05

Type 3: X4'23/24, A10

Type 4: Mi9, XQ11 & XQ3S, RX10SR3.0R

Type 5: X20'24, IF14-2

Type 6: Mugen MTC3

Installation Instructions:

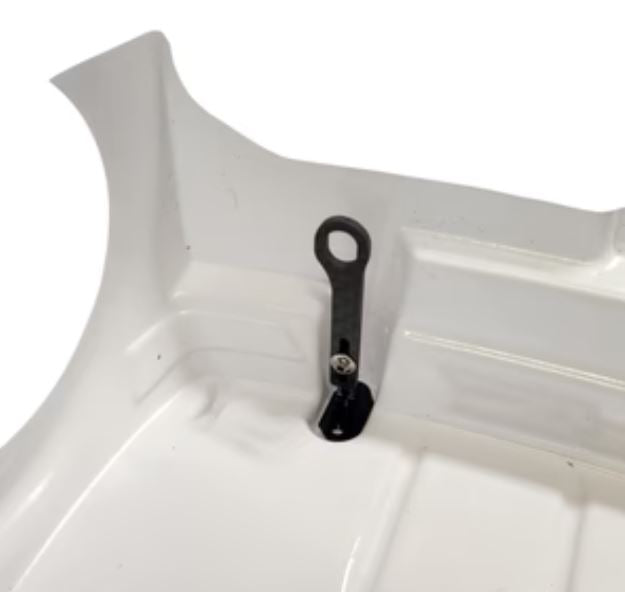

ZooRacing Bodies: Mount the Aluminium mounts in the wing struts with the Z facing outwards on each side of the body-shell. Attach the carbon extension onto the mount with the offset facing outwards. Fasten with the supplied Gr.5 Titanium Screw in the middle position Check the body/mounts slide onto the rear posts. If they are tight, loosen the carbon extension slightly and move it in the direction required and re-tighten. The body posts could also be bent, so just bend them in the direction required to ensure the body can move freely up and down on the rear posts. Get the rear of your body to the correct height by loosening the Gr.5 screw and shifting the carbon extension up or down and re-tightening the screw.

Xtreme Bodies: Mount the Aluminium mounts in the wing struts with the X facing outwards on each side of the body-shell. Attach the carbon extension onto the mount with the offset facing outwards. Fasten with the supplied Gr.5 Titanium Screw in the middle position Check the body/mounts slide onto the rear posts. If they are tight, loosen the carbon extension slightly and move it in the direction required and re-tighten. The body posts could also be bent, so just bend them in the direction required to ensure the body can move freely up and down on the rear posts. Get the rear of your body to the correct height by loosening the Gr.5 screw and shifting the carbon extension up or down and re-tightening the screw.

Tuned for maximum downforce, durability, stiffness, appearance and adjustability

Ultra-Lightweight design coming in at only 3.7 grams including everything, per pair!

Fits all Zoo Racing and Xtreme, LensBodies, Bittydesign Hyper HR and Blitz Roadster Bodies

Only one carbon extension required per car, with mounts that have the body offsets integrated.

Grade 5 Titanium Screws included for maximum strength and minimum weight

Integrates into out existing anti-tuck stiffeners

Extension versions to suit all popular touring cars

No holes required in the body for super easy body mounting

7075 Black Anodized Aluminium mounts for maximum strength and minimum weight

Includes mounting hardware, but NOT carbon extensions required for use

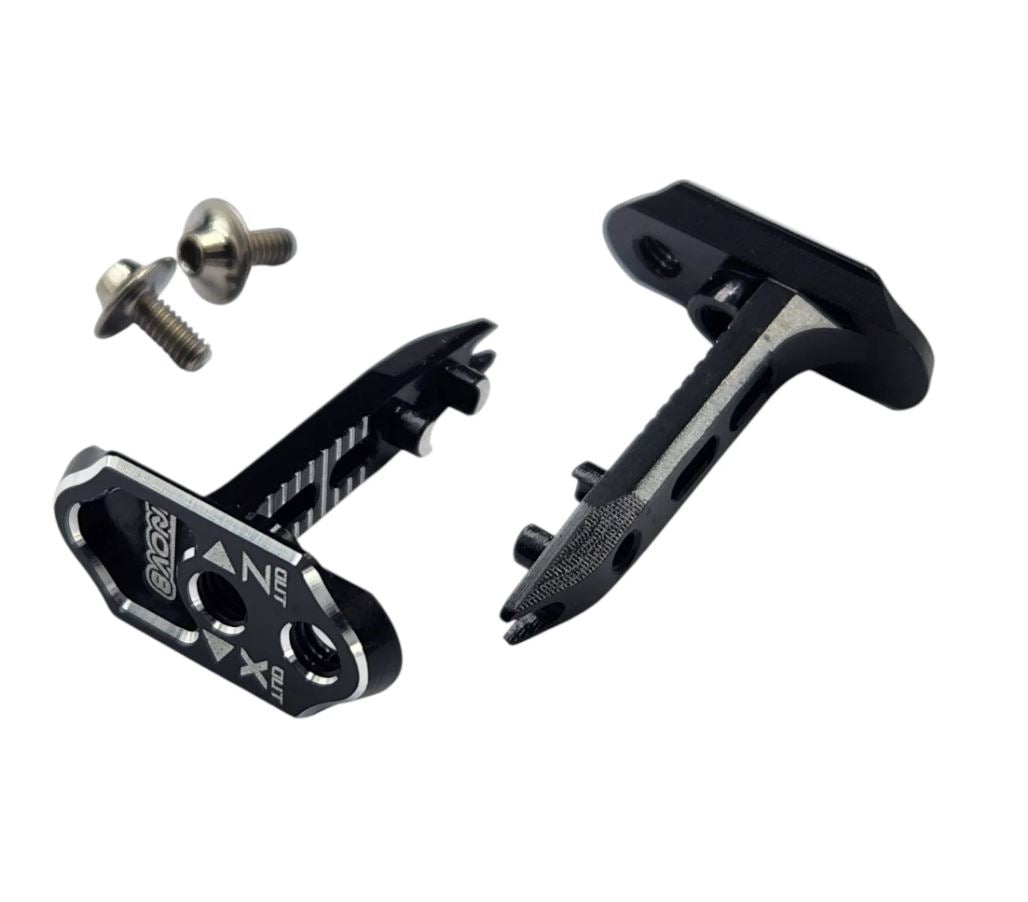

(2) Aluminum X-Lite Body Mounts

(2) Titanium Screws

CF Extensions appropriate for your car. See below.

Type 1: A800R, MTC2R, SP1, TC10/3, AE TC8

Type 2: MS1.0, ONE.05

Type 3: X4'23/24, A10

Type 4: Mi9, XQ11 & XQ3S, RX10SR3.0R

Type 5: X20'24, IF14-2

Type 6: Mugen MTC3

Brand: Inov8

MPN: IN8-40001

Added: 2025 - September

Status: Stock

Discount Eligibility: Discount Eligible

SKU: IN8-40001

UPC: 5390893417975

Location: M04-07-04
