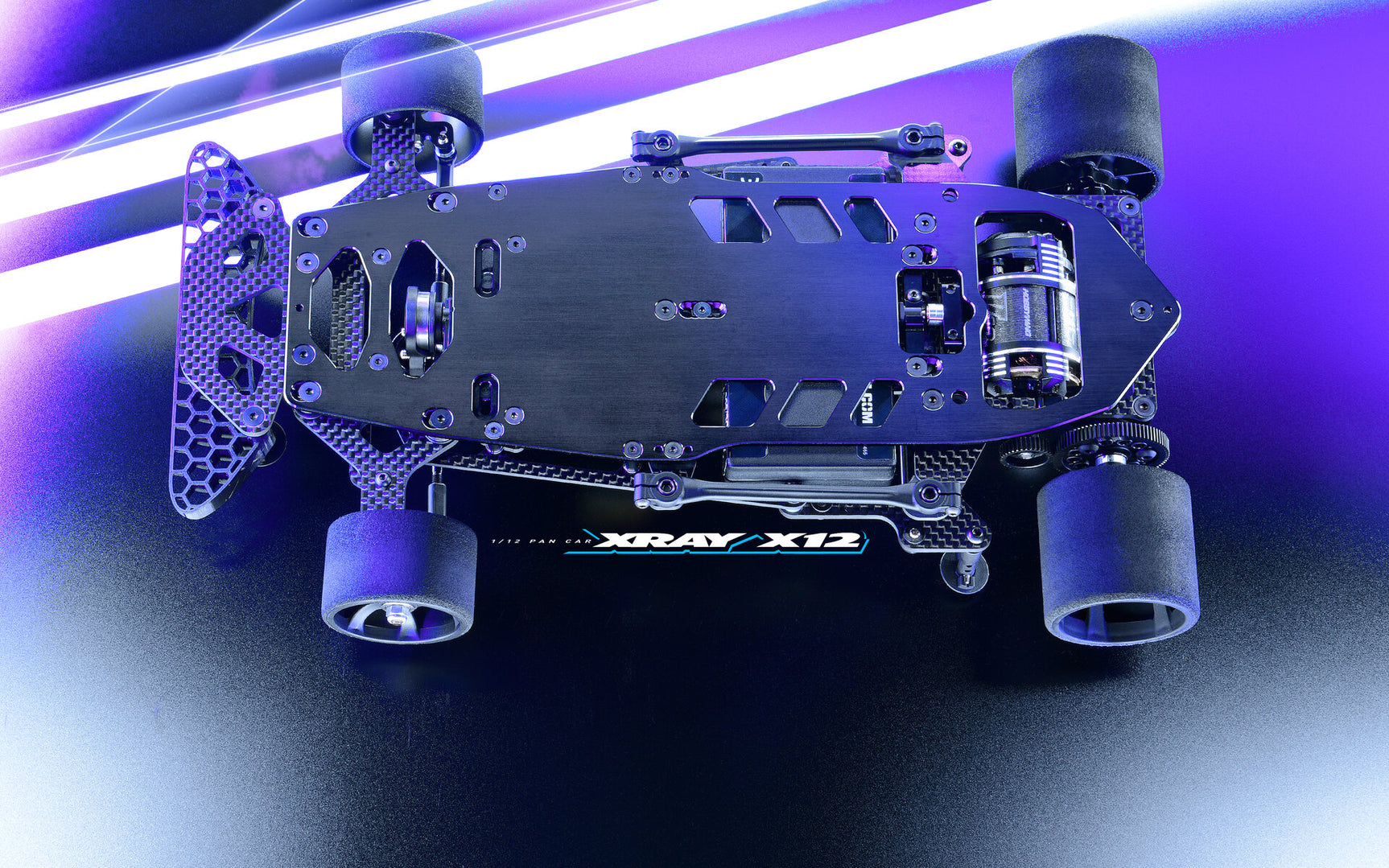

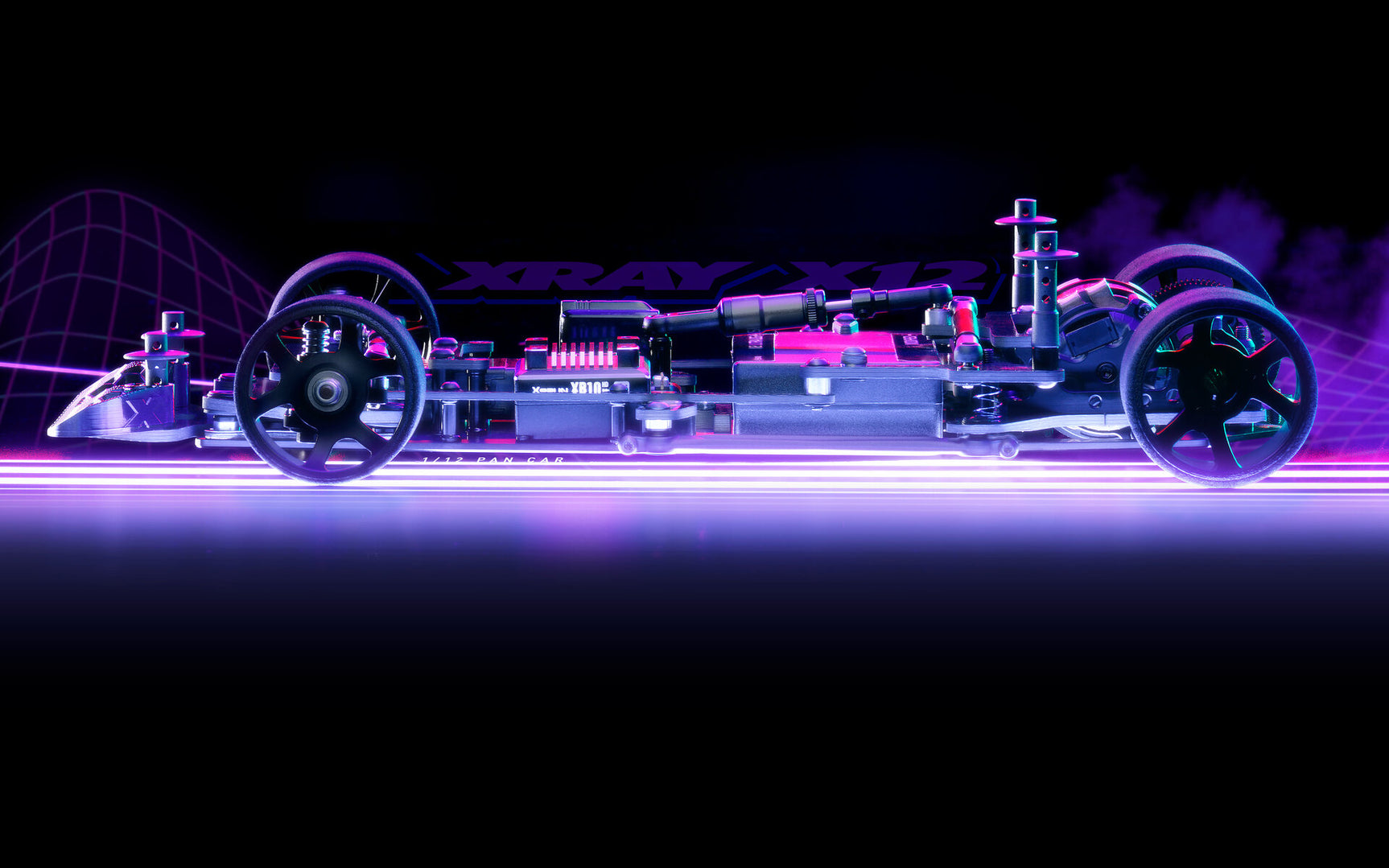

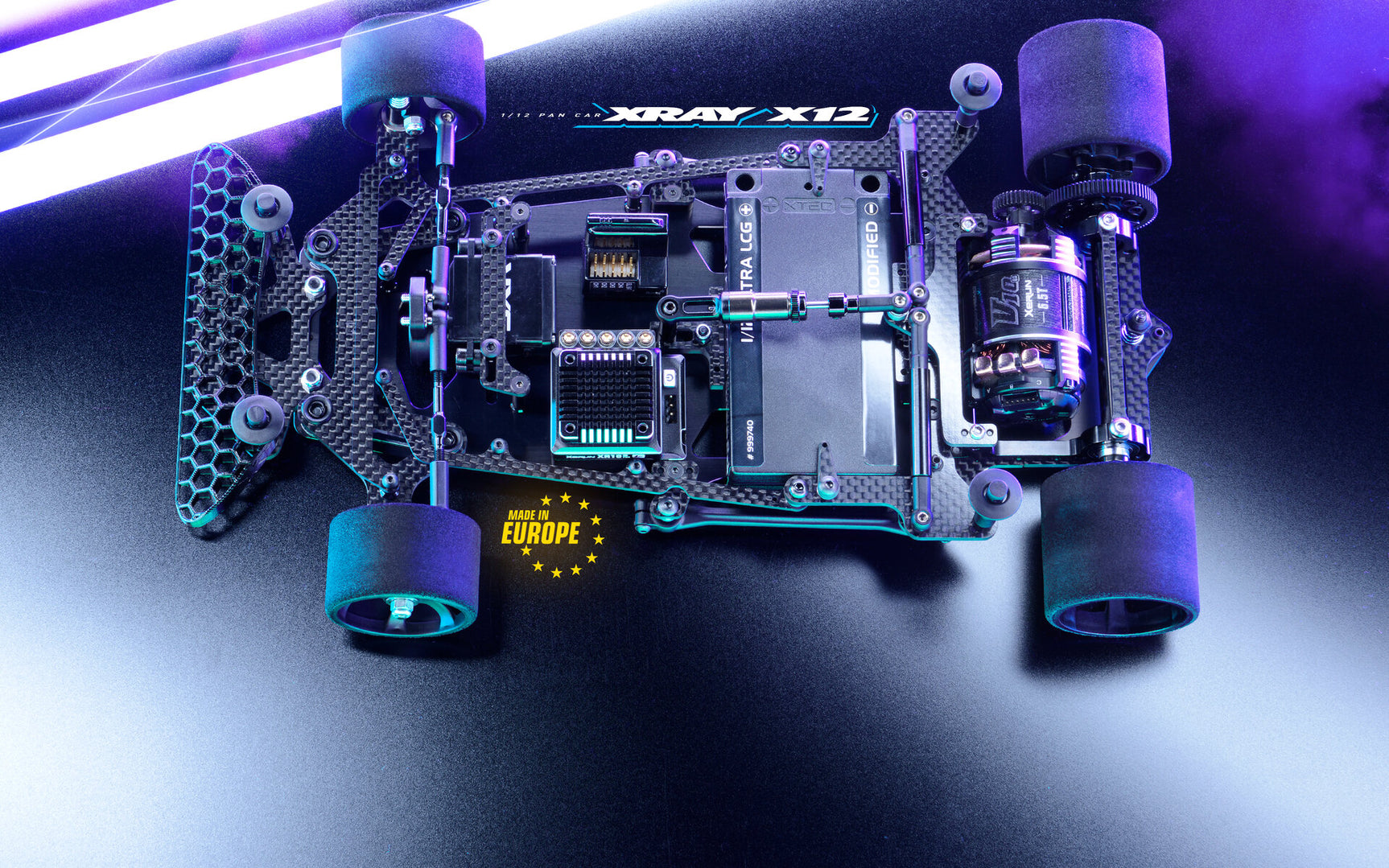

X12'26 1/12 Pan Car Kit

Xray has unveiled their ‘all new’ 1:12 chassis, the X12‘26. Featuring a redesigned chassis with reduced rear flex this improves stability & overall traction. The chassis also adds mounting holes for a floating servo mounting and additional holes for easier access to rear pod hardware. A new pod front plate and carbon side link plates with 3 positions provides proper side link alignment for each of the centre pivot positions. New side link mounting positions keep the side links’ rear pivots in-line with each of the three centre pivot positions to minimise bind during suspension compression. At the front a redesigned front carbon bumper improves durability while a front brace from thinner 1.6mm carbon material improves handling & overall feel. Wider front lower arms, 1mm wider per side, improves drivability in all conditions. New aluminium pivot holders allow a lower roll-centre setting without protruding below the chassis. The X12’26 offers two servo mounting alternatives, fixed & floating, with an all-new floating servo holder providing more forgiving handling and minimises steering drift due to servo movement after a crash.

Redesigned chassis with reduced rear flex improves stability & overall traction

Chassis adds mounting holes for a floating servo mounting and additional holes for easier access to rear pod hardware

New pod front plate and carbon side link plates with 3 positions provides proper side link alignment for each of the center pivot positions

New side link mounting positions keep the side links’ rear pivots in-line with each of the three center pivot positions to minimize bind during suspension compression.

Redesigned front carbon bumper improves durability

Front brace from thinner 1.6mm carbon material improves handling & overall feel

New aluminum pivot holders allow a lower roll-center setting without protruding below the chassis

Two servo mounting alternatives - fixed & floating

All-new floating servo holder provides more forgiving handling and minimizes steering drift due to servo movement after a crash

Improved center dampener sealing eliminates oil leaking

Wider front lower arm - 1mm per side - improves drivability in all conditions

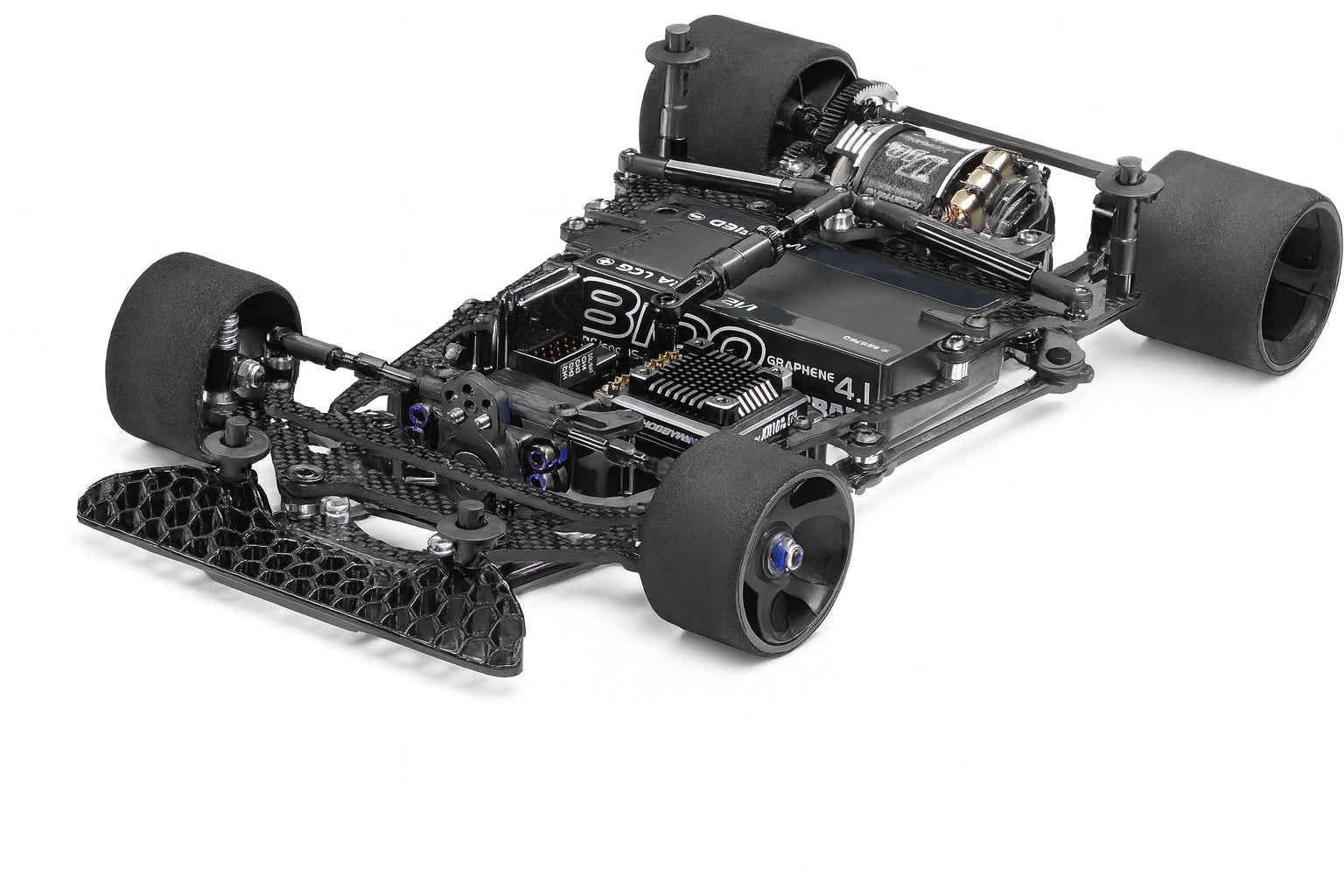

X12'26 Kit Only (Electronics as pictured are NOT included)

1S LiPo Battery

ESC

Servo

Motor

Radio System

Pinion Gear

Spur Gear

Body

Tires

Brand: XRay

MPN: 370022

Added: 2025 - October

Status: Stock

Discount Eligibility: Discount Eligible

SKU: XRA370022

UPC: 8581703700227

Location: R01-08-03
